Description
About This Product

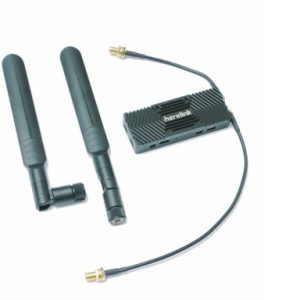

The Airbot Systems Herelink Antenna Upgrade Kit is designed to replace the standard antennas used with the Herelink Air Unit. It uses compact 2.4 GHz omnidirectional antennas that provide a cleaner installation and greater flexibility in antenna positioning.
Features
- Designed for Herelink Air Unit antenna replacement
- Operates in the 2.4 GHz frequency band
- Includes two external antennas
- Omnidirectional radiation pattern
- Vertical polarization
- 90° foldable antenna design
- SMA connection for convenient installation and removal

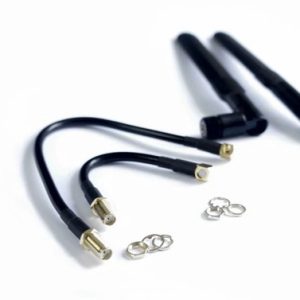

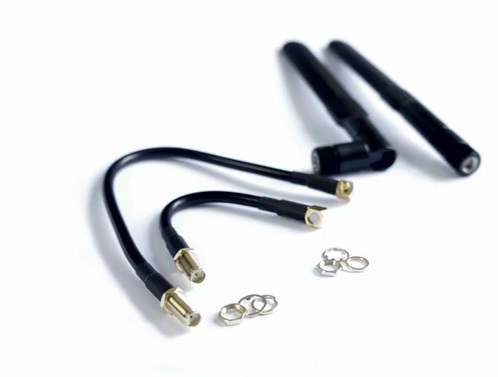

- Adapter cables support panel-mounted installation
- Antennas can be positioned horizontally or vertically
- Compact design suitable for UAV installations
- Provides a more discreet alternative to the standard antenna arrangement
- Air Unit is not included in the kit
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Airbot Systems |
| Product Type | Herelink Antenna Upgrade Kit |
| Application | Herelink Air Unit |
| Frequency | 2.4 GHz |
| Connector | SMA |
| Antenna Type | Omnidirectional |
| Polarization | Vertical |
| Maximum Gain | Up to 5 dBi |
| Impedance | 50 Ω |
| VSWR | < 1.5 |
| Antenna Length | 160 mm |
| Maximum Width | 20 mm |
| Kit Weight | Approx. 51 g |
| Antenna Quantity | 2 |
| Antenna Adjustment | 90° foldable |
| Mounting | Panel mount, horizontal or vertical |
| Application | UAV / Drone / Herelink communication system |
