About This Product

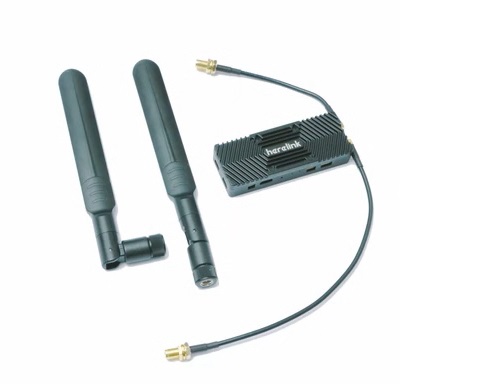

The Airbot Systems Herelink Antenna Upgrade Kit is designed to replace the standard antennas used with the Herelink Air Unit. It uses compact 2.4 GHz omnidirectional antennas that provide a cleaner installation and greater flexibility in antenna positioning.

Features

Designed for Herelink Air Unit antenna replacement
Operates in the 2.4 GHz frequency band
Includes two external antennas
Omnidirectional radiation pattern
Vertical polarization
90° foldable antenna design
SMA connection for convenient installation and removal
Adapter cables support panel-mounted installation
Antennas can be positioned horizontally or vertically
Compact design suitable for UAV installations
Provides a more discreet alternative to the standard antenna arrangement
Air Unit is not included in the kit

Technical Specifications

Specification	Details
Brand	Airbot Systems
Product Type	Herelink Antenna Upgrade Kit
Application	Herelink Air Unit
Frequency	2.4 GHz
Connector	SMA
Antenna Type	Omnidirectional
Polarization	Vertical
Maximum Gain	Up to 5 dBi
Impedance	50 Ω
VSWR	< 1.5
Antenna Length	160 mm
Maximum Width	20 mm
Kit Weight	Approx. 51 g
Antenna Quantity	2
Antenna Adjustment	90° foldable
Mounting	Panel mount, horizontal or vertical
Application	UAV / Drone / Herelink communication system
