Description
About This Product

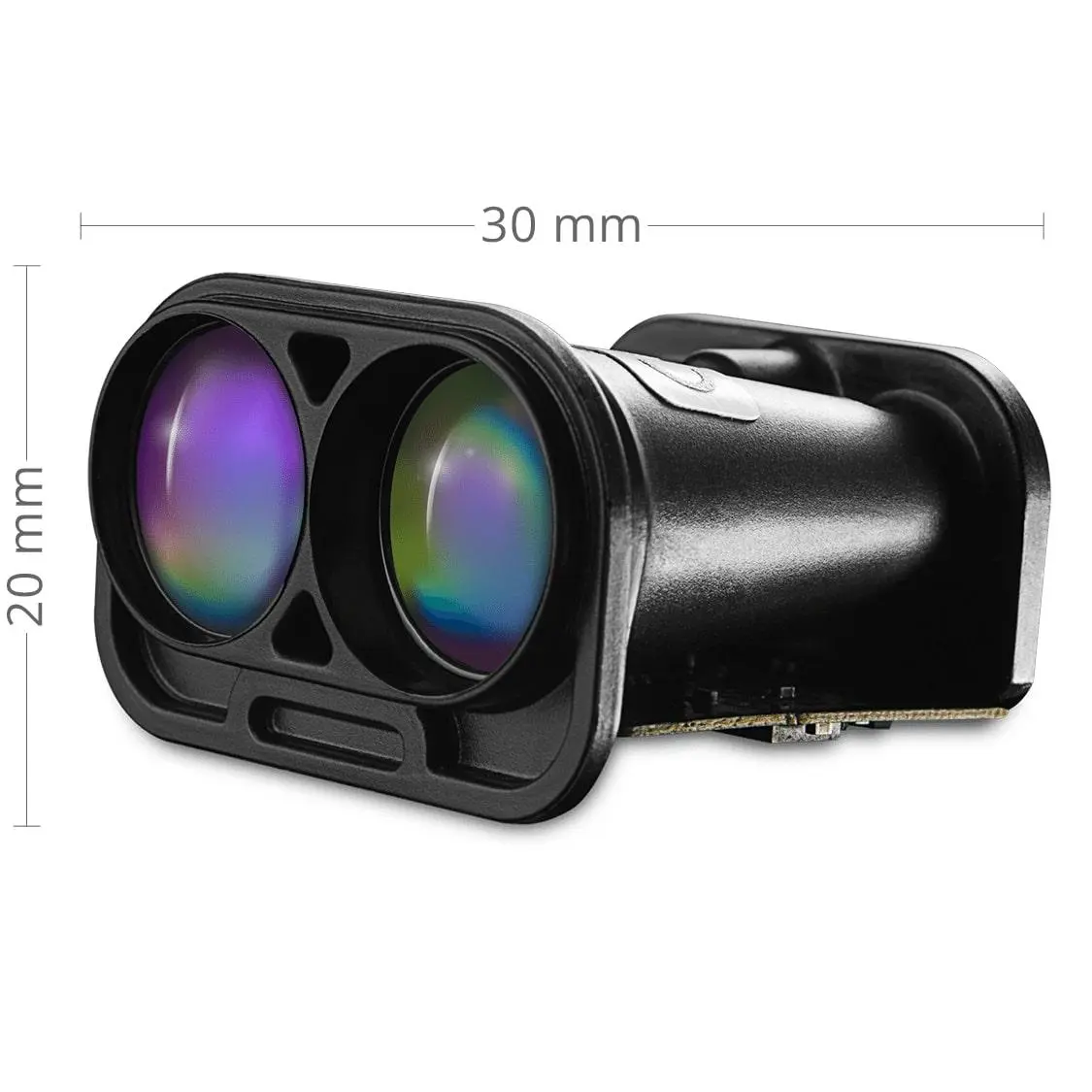

The SF20/HA combines a compact form factor with high-accuracy laser distance measurement. It can measure distances up to 100 metres and is designed to maintain sub-centimetre accuracy across its operating range under specified conditions. Its onboard servo driver also allows beam-steering applications when used with suitable mounting hardware, making it useful for advanced sensing and mapping setups.
Key Features
- 100 m maximum measurement range
- Sub-1 cm accuracy under specified temperature conditions
- Lightweight 7.5 g design
- Static single-beam LiDAR
- First- and last-pulse signal processing
- Built-in servo driver for beam steering
- USB, UART and I²C interfaces
- 3.3 V TTL interface with 5 V tolerance
- Compatible with PX4 and ArduPilot
- Suitable for Arduino and Raspberry Pi integration
- Designed for UAV and robotics applications
Technical Specifications
| Specification | Details |
|---|---|
| Model | SF20/HA |
| Product Type | microLiDAR / Laser Rangefinder |
| Measurement Range | 0.2–100 m |
| Accuracy | Better than 1 cm over 100 m |
| Update Rate | 48–1,250 readings/sec |
| Signal Processing | First & Last Pulse |
| LiDAR Type | Static Single Beam |
| Weight | 7.5 g |
| Dimensions | 30 × 20 × 32 mm |
| Interfaces | USB, Serial UART & I²C |
| Logic Level | 3.3 V TTL, 5 V tolerant |
| Integration | PX4, ArduPilot, Arduino, Raspberry Pi, LW Studio |
| Servo Driver | Onboard |
| Laser Wavelength | 905 nm |
