Here3 GNSS (M8P) With iStand

₹141,000.00

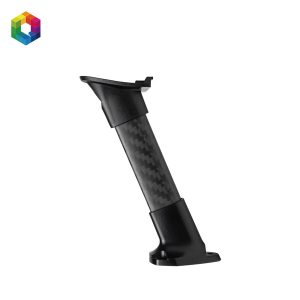

Package Includes: Here3 GNSS Here3 iStand GPS Stand

Out of stock

Request a quote for bulk quantity

SKU: 01014
Category:
Tags:,
Brands:

Description

Description

MPN: HX4-06206

Manufacturer: CubePilot

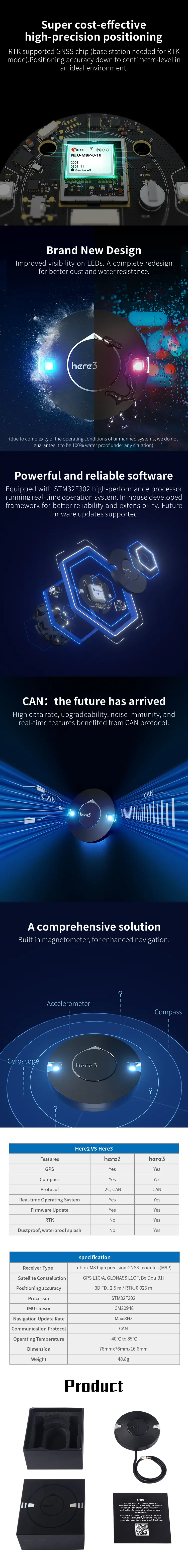

Here3 GPS is a cost-efficient GNSS system that supports RTK mode with positioning accuracy down to centimeter-level in an ideal environment. See our store for the Here+ Base. Improved dust and water resistance over the original Here+ (not guaranteed to be water-proof). Here3 is equipped with the STM32F302 processor. Featuring a high data rate, upgradeability, noise immunity, and real-time features benefited from the CAN protocol. The Here3 has built-in sensors including a compass, gyroscope, accelerometer, and status LED.

Documentation

Model Here 3
Receiver Type u-blox high precision GNSS modules (M8P-2)
Satellite Constellation GPS L1C/A, GLONASS L1OF, BeiDou B1I
Positioning accuracy 3D FIX: 2.5 m / RTK: 0.025 m
Processor STM32F302
IMU sensor ICM20948
Navigation Update Rate 8 hz
Communication Protocol DroneCAN 1Mbit/s
Operating Temperature -40℃ to 85℃
Dimension 68mmx68mmx16mm
Weight 48.8g
