CubeNode ETH – Ethernet Adapter for CubePilot Flight Controllers

₹10,312.00

High-Performance Dual-Core MCUFeatures Arm® Cortex®-M7 (480 MHz, double-precision FPU) paired with Cortex®-M4 (240 MHz, single-precision FPU), equipped with DSP instructions and MPU for secure, efficient processing. Lightweight, Compact DesignSmall PCB module (approx. 28 × 11 × 10 mm) weighing just ~2.7 g (7.3 g with cables). Robust Memory ProfileDual-bank 2 MB Flash and 1 MB RAM (192 KB TCM, 864 KB SRAM, 4 KB backup SRAM) enabling firmware upgrades…

Available on backorder

Request a quote for bulk quantity

Description

Description

MPN: CP-06328

Manufacturer: CubePilot

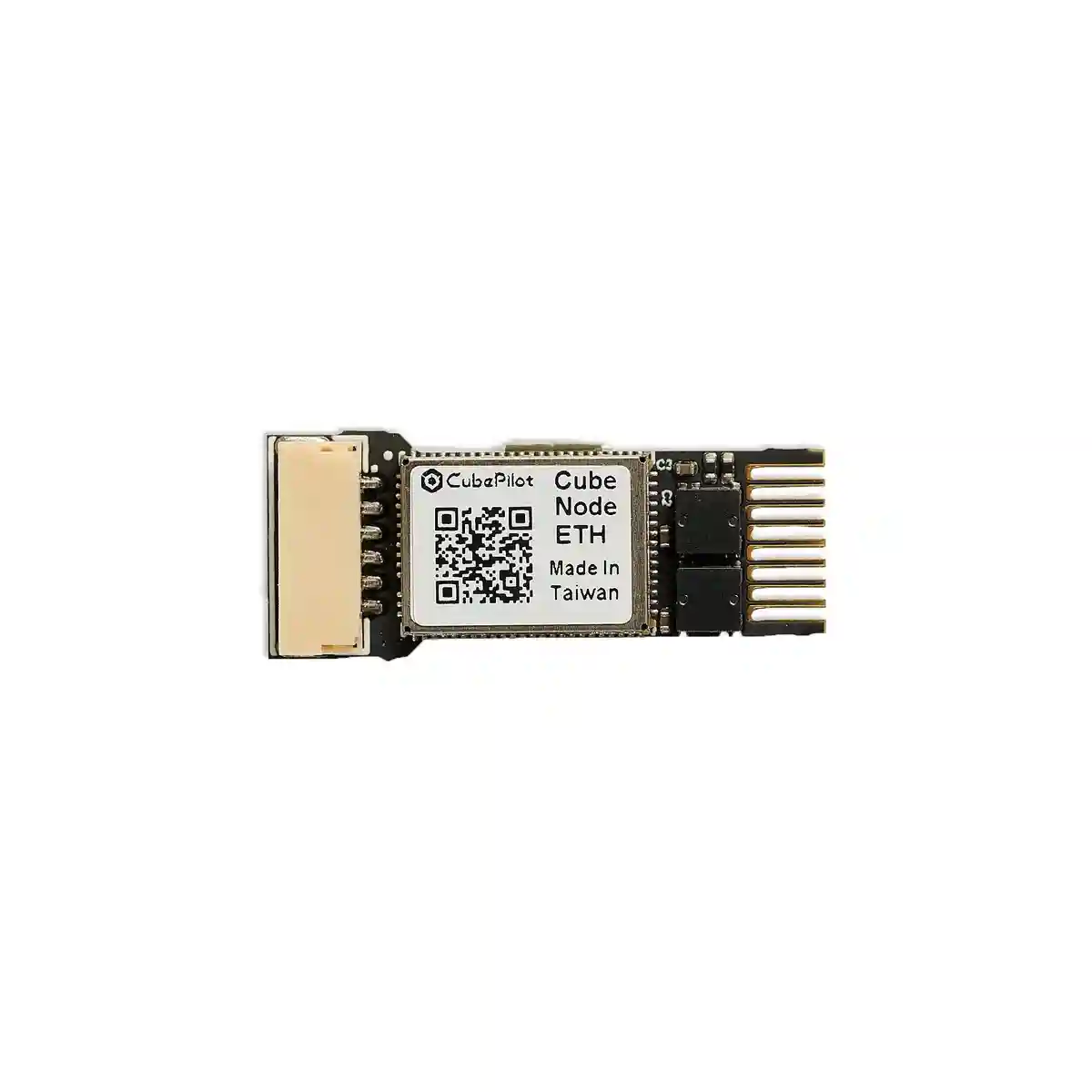

The CubeNode ETH is a compact networking adapter by CubePilot, designed to add 10/100 Mbps Ethernet connectivity to Cube flight controllers lacking native support. Powered by dual-core Arm® Cortex® M7 and M4 processors, it runs at up to 480 MHz and 240 MHz respectively. With support for PPP over serial, the CubeNode ETH enables up to 12 Mbps bi-directional networking, facilitating transmission of MAVLink, CAN and other protocols—all through a single serial port without sacrificing additional telemetry or data interfaces. Ideal for UAV builds requiring robust, lightweight network integration.

The CubePilot CubeNode ETH (MPN: CP-06328) is a high-performance embedded node designed for advanced UAV and autonomous system integration. Powered by the CubeNode platform, it features dual Arm® Cortex® cores—an M7 running up to 480 MHz and an M4 up to 240 MHz—delivering powerful processing capability for demanding applications.

Both cores include floating point units (FPU) with support for single- and double-precision operations (IEEE 754 compliant), along with DSP instruction sets and a memory protection unit (MPU) to enhance system performance and security.

Designed for high-speed data handling and connectivity, the CubeNode ETH incorporates extensive onboard memory and I/O capabilities, making it ideal for networking, edge processing, and distributed UAV system architectures.



Features

  • High-Performance Dual-Core MCU
    Features Arm® Cortex®-M7 (480 MHz, double-precision FPU) paired with Cortex®-M4 (240 MHz, single-precision FPU), equipped with DSP instructions and MPU for secure, efficient processing.

  • Lightweight, Compact Design

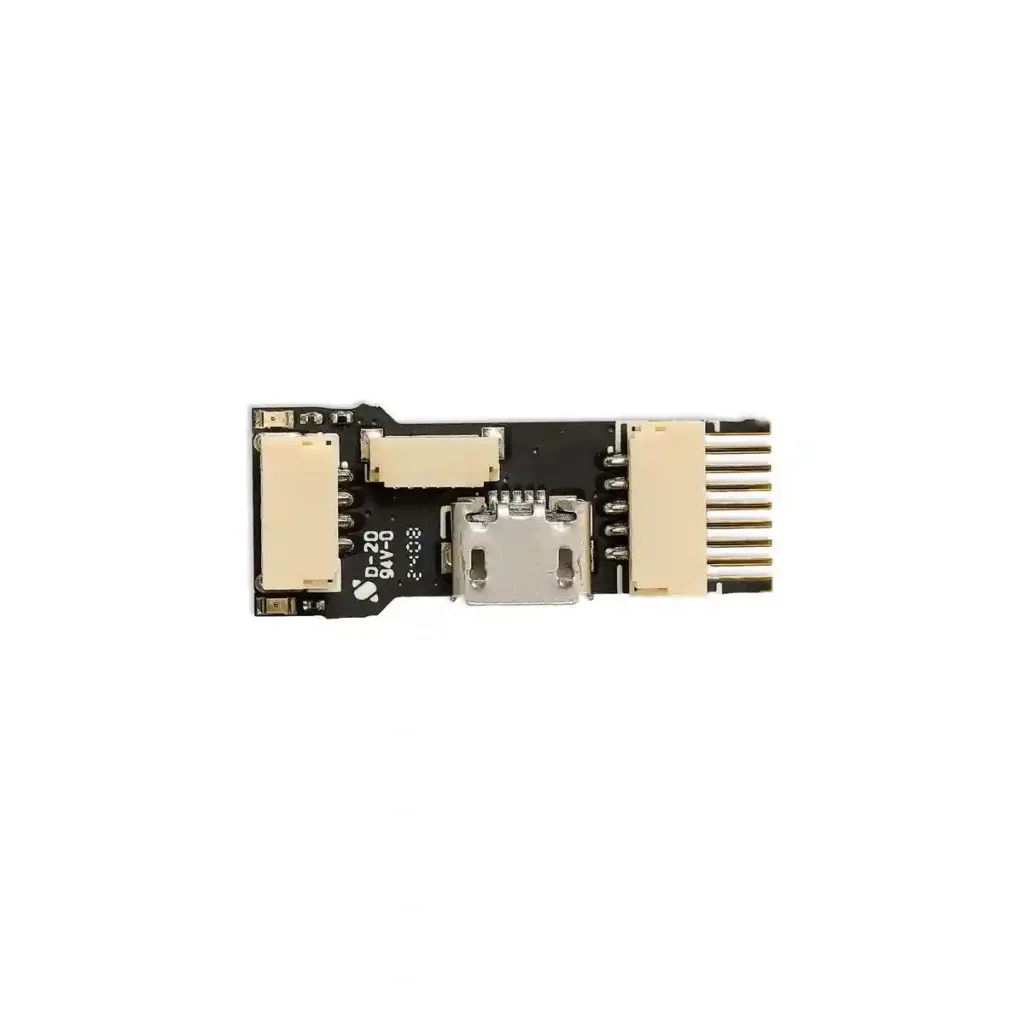

    Small PCB module (approx. 28 × 11 × 10 mm) weighing just ~2.7 g (7.3 g with cables).

  • Robust Memory Profile
    Dual-bank 2 MB Flash and 1 MB RAM (192 KB TCM, 864 KB SRAM, 4 KB backup SRAM) enabling firmware upgrades and buffer handling.

  • Ethernet via PPP Protocol
    Connects over one serial port (with flow control) to achieve network speeds up to 12 Mbps. Supports MAVLink, CAN, TCP/UDP traffic. Works out-of-box with CubeOrange+ and CubeRed on ArduPilot ≥ 4.5.

Specifications

Parameter Details
MPN CP‑06328
Manufacturer CubePilot
Processors Cortex‑M7 (480 MHz, double‑precision FPU), Cortex‑M4 (240 MHz)
Flash Memory 2 MB dual-bank
RAM Total 1 MB (192 KB TCM + 864 KB SRAM + 4 KB backup)

Disclaimer: Product details are provided for reference only. Please verify all specifications and features with the official source, as information may change or vary.
