Description
Key Features
- 115A continuous current
- 120A peak current
- Supports 6–14S LiPo
- Integrated switching BEC
- Selectable 5.2V / 6V / 7.4V BEC output
- BEC supports up to 10A / 25A depending on voltage/output mode
- High-speed throttle response
- Multiple programmable parameters
- Voltage and thermal protection
- Failsafe, brake and soft-start functions
- Designed for VTOL and fixed-wing UAVs

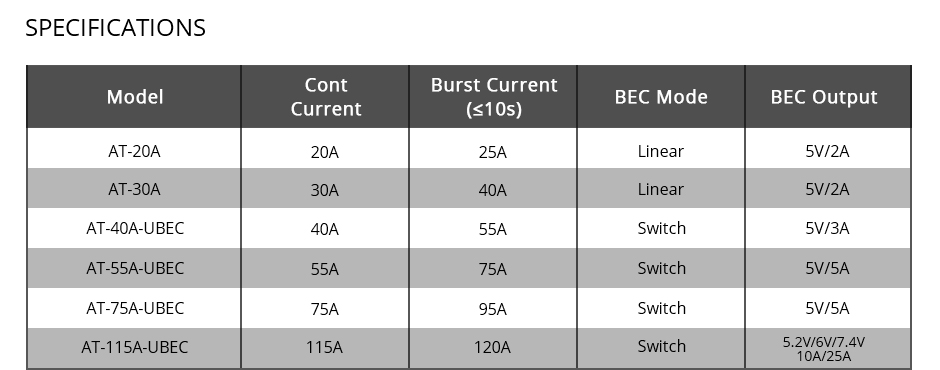

Technical Specifications
| Specification | Details |
|---|---|
| Brand | T-MOTOR |
| Model | AT115A |
| Type | VTOL / Fixed-Wing ESC |
| Input Voltage | 6–14S LiPo |
| Continuous Current | 115A |
| Peak Current | 120A |
| BEC Type | Switching BEC |
| BEC Output | 5.2V / 6V / 7.4V |
| BEC Current | 10A / 25A |
| Weight | 182 g incl. cable |
| Dimensions | 27.3 × 46 × 92 mm |
| Application | VTOL & Fixed-Wing UAV |
