Description
About This Product

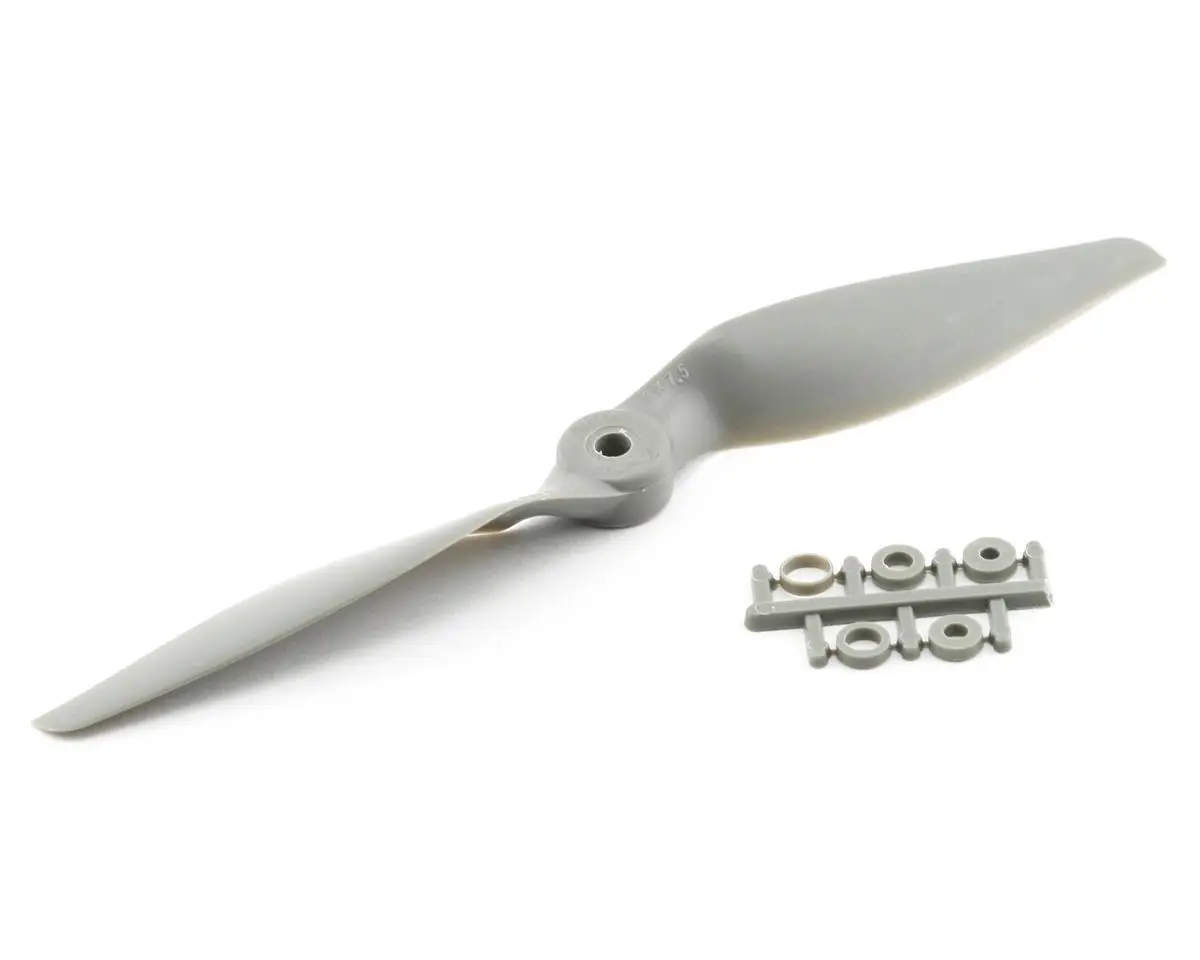

The APC 9×7.5E Thin Electric Propeller is a two-blade propeller designed for electric-powered model aircraft and compatible lightweight UAV propulsion systems. Its 9-inch diameter and 7.5-inch pitch provide a relatively high-pitch setup for electric power systems that are matched to this propeller size. The propeller features a compact hub and uses an adapter-ring system for fitting the correct motor shaft. The official APC product code is LP09075E.
Features
- 9-inch diameter
- 7.5-inch pitch
- Two-blade configuration
- Thin Electric design
- CCW – standard/tractor rotation
- Lightweight construction
- Grey finish
- Designed for electric propulsion
- Suitable for RC aircraft
- Suitable for compatible UAV applications
- Compact hub design
- Uses APC LPAR06E adapter rings
- Designed for a 1/4-inch / 6.35 mm shaft
Technical Specifications
| Specification | Details |
|---|---|
| Brand | APC |
| Product Code | LP09075E |
| Model | 9×7.5E |
| Propeller Type | Thin Electric |
| Diameter | 9 in / 228.6 mm |
| Pitch | 7.5 in / 190.5 mm |
| Number of Blades | 2 |
| Rotation | CCW – Standard / Tractor |
| Hub Diameter | 0.80 in / 20.32 mm |
| Hub Thickness | 0.39 in / 9.91 mm |
| Shaft Diameter | 1/4 in / 6.35 mm |
| Weight | 0.63 oz / approx. 17.86 g |
| Colour | Grey |
| Adapter Rings | LPAR06E |
| Application | Electric Aircraft / UAV |
