Description
About This Product

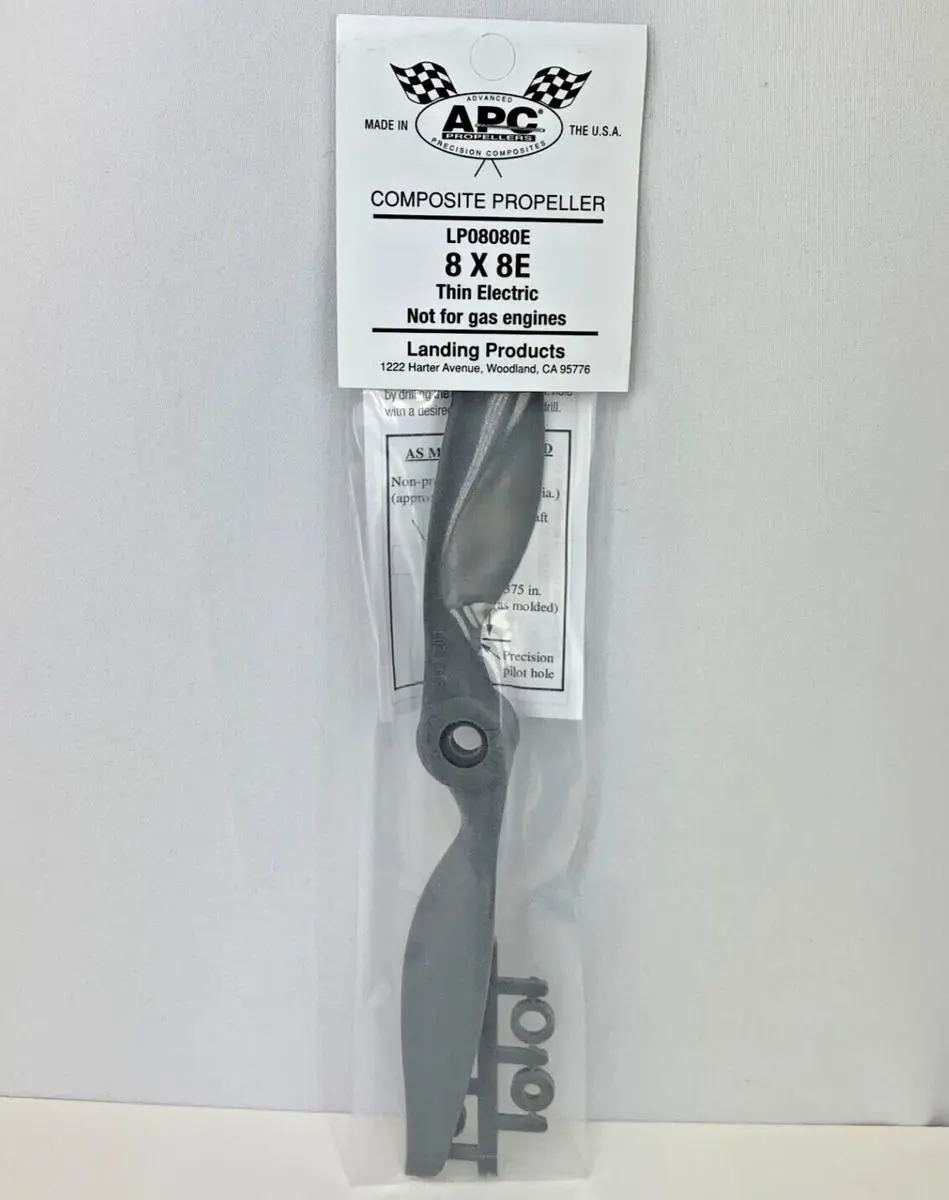

The APC 8×8E Thin Electric Propeller is a two-blade electric aircraft propeller designed for compact electric propulsion systems. With an 8-inch diameter and 8-inch pitch, it provides a balanced diameter-to-pitch combination for compatible RC aircraft and electric-powered UAV applications. Its compact hub is designed to work with APC’s LPAR06E adapter-ring system, allowing the propeller to be properly matched to a compatible motor shaft. The official APC product code is LP08080E.
Features
- 8-inch diameter
- 8-inch pitch
- Two-blade configuration
- Thin Electric design
- CCW – standard/tractor rotation
- Compact hub
- Grey finish
- Designed for electric propulsion
- Suitable for RC aircraft
- Suitable for compatible UAV applications
- LPAR06E adapter rings included
- 1/4-inch shaft compatibility
- Non-folding propeller
Technical Specifications
| Specification | Details |
|---|---|
| Brand | APC |
| Product Code | LP08080E |
| Model | 8×8E |
| Propeller Type | Thin Electric |
| Diameter | 8 in / 203.2 mm |
| Pitch | 8 in / 203.2 mm |
| Number of Blades | 2 |
| Rotation | CCW – Standard / Tractor |
| Hub Diameter | 0.80 in / 20.32 mm |
| Hub Thickness | 0.40 in / 10.16 mm |
| Shaft Diameter | 1/4 in / 6.35 mm |
| Weight | 0.53 oz / approx. 15.0 g |
| Colour | Grey |
| Adapter Rings | LPAR06E |
| Application | Electric Aircraft / UAV |
