Description
About This Product

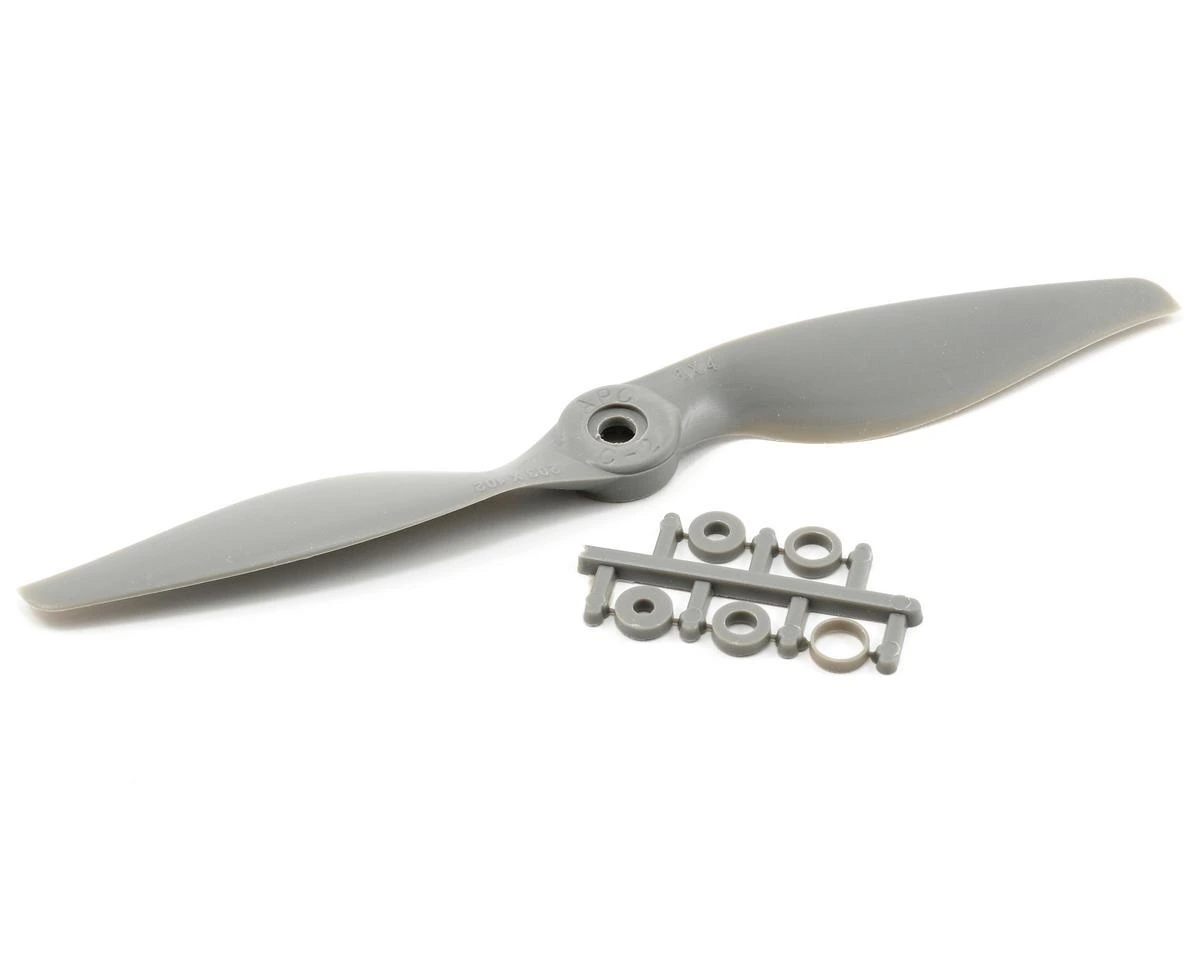

The APC 8×4E Thin Electric Propeller is a two-blade propeller intended for electric-powered aircraft and other compatible electric propulsion applications. Its 8-inch diameter and 4-inch pitch provide a compact combination for models that require a relatively small electric propeller. The propeller has a lightweight electric-propeller design and uses APC’s adapter-ring system to accommodate the appropriate motor shaft. The official APC product code is LP08040E.
Features
- 8-inch diameter
- 4-inch pitch
- Two-blade configuration
- Thin Electric design
- CCW – standard/tractor rotation
- Lightweight construction
- Grey finish
- Designed specifically for electric propulsion
- Suitable for RC aircraft
- Suitable for compatible UAV applications
- Includes APC adapter-ring set
- Supports a 1/4-inch motor shaft
- Compact hub design
Technical Specifications
| Specification | Details |
|---|---|
| Brand | APC |
| Product Code | LP08040E |
| Model | 8×4E |
| Propeller Type | Thin Electric |
| Diameter | 8 in / 203.2 mm |
| Pitch | 4 in / 101.6 mm |
| Number of Blades | 2 |
| Rotation | CCW – Standard / Tractor |
| Hub Diameter | 0.80 in / 20.32 mm |
| Hub Thickness | 0.35 in / 8.89 mm |
| Shaft Diameter | 1/4 in / 6.35 mm |
| Weight | 0.46 oz / approx. 13.0 g |
| Colour | Grey |
| Adapter Rings | LPAR06E |
| Application | Electric Aircraft / UAV |
