About This Product

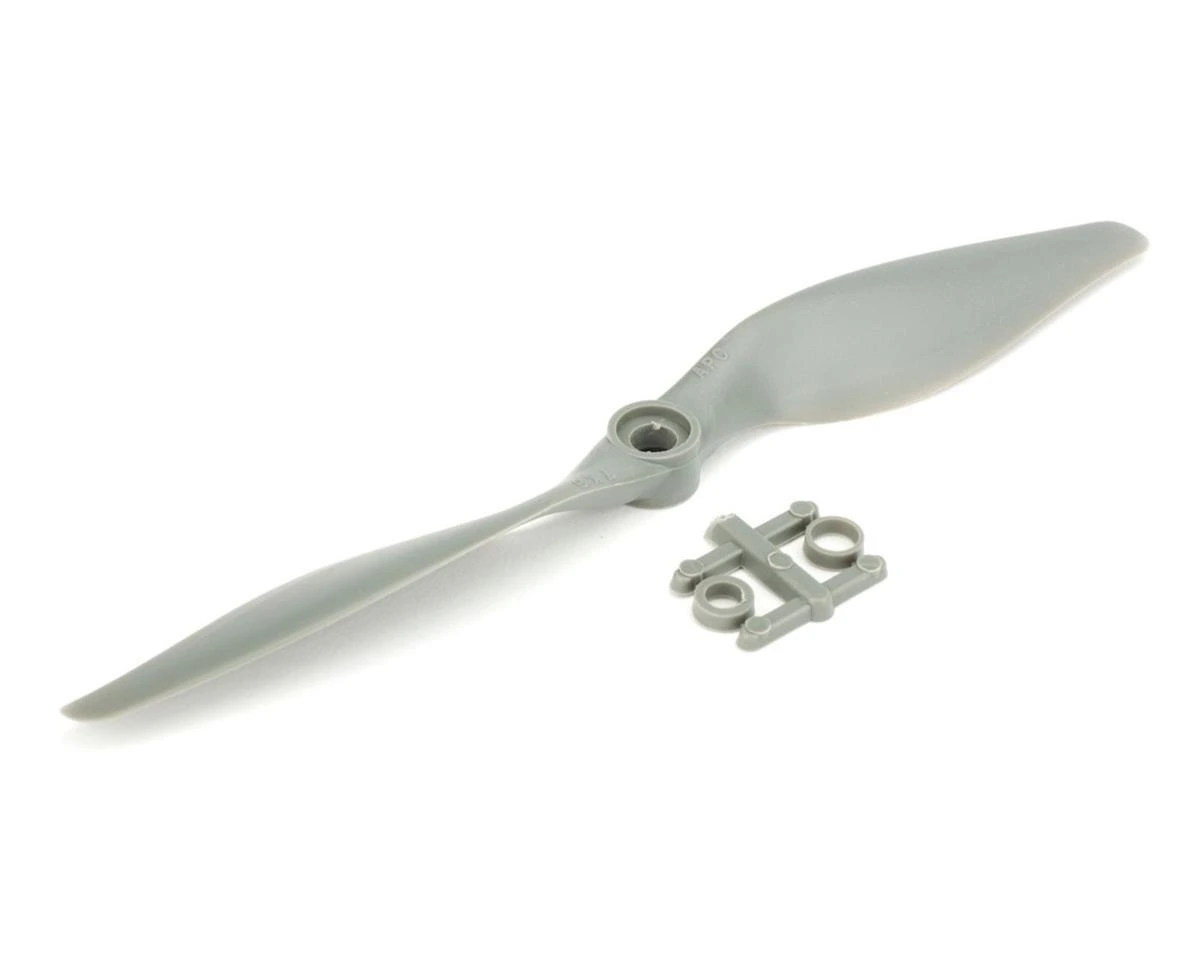

The APC 7×7E Thin Electric Propeller is a compact two-blade propeller developed for electric-powered aircraft and other lightweight electric propulsion applications. Its equal 7-inch diameter and 7-inch pitch provide a balanced size and pitch combination for compatible electric power systems. The propeller has a compact hub and uses interchangeable adapter rings, making it suitable for motors with the appropriate shaft configuration. The APC product code is LP07070E.
Features
- 7-inch diameter
- 7-inch pitch
- Two-blade configuration
- Thin Electric design
- Standard CCW rotation
- Compact hub design
- Grey finish
- Designed for electric propulsion
- Suitable for RC aircraft
- Suitable for compatible UAV and multirotor applications
- Compatible with APC adapter-ring system
- Lightweight construction
Technical Specifications
| Specification | Details |
|---|---|
| Brand | APC |
| Product Code | LP07070E |
| Model | 7×7E |
| Propeller Type | Thin Electric |
| Diameter | 7 in / 177.8 mm |
| Pitch | 7 in / 177.8 mm |
| Number of Blades | 2 |
| Rotation | CCW – Standard |
| Hub Diameter | 0.50 in / 12.7 mm |
| Hub Thickness | 0.34 in / 8.64 mm |
| Shaft Diameter | 1/4 in / 6.35 mm |
| Weight | 0.28 oz / approx. 7.9 g |
| Colour | Grey |
| Adapter Rings | LPAR18SF / LPARM12SF |
| Application | Electric Aircraft / UAV / Multirotor |
