Description
About This Product

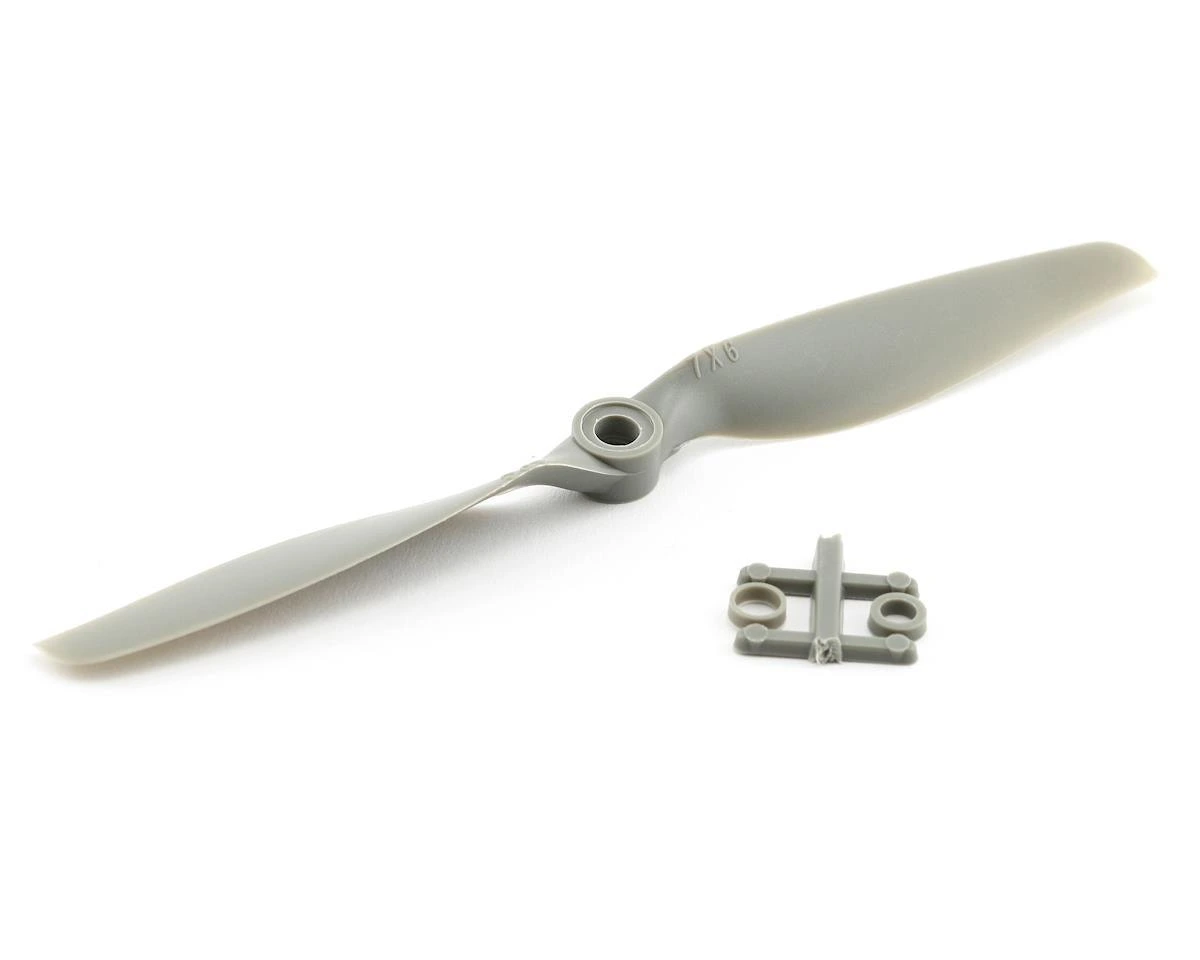

The APC 7×6EP is a compact two-blade electric pusher propeller intended for propulsion systems that require reverse rotation. With a 7-inch diameter and 6-inch pitch, it is suited to small electric aircraft and other compatible electric propulsion setups. Its compact hub accepts APC adapter rings, allowing the propeller to be matched with the appropriate motor shaft. The official APC product code is LP07060EP.
Features
- 7-inch diameter
- 6-inch pitch
- Two-blade configuration
- Thin Electric construction
- CW / reverse-rotation configuration
- Pusher-type electric propeller
- Grey finish
- Compact hub design
- Suitable for small electric aircraft
- Suitable for compatible FPV and UAV applications
- Adapter rings included
- Non-folding blade design
- Designed for compatible 1/4-inch / 6.35 mm shafts
Technical Specifications
| Specification | Details |
|---|---|
| Brand | APC |
| Product Code | LP07060EP |
| Model | 7×6EP |
| Type | Thin Electric Pusher |
| Diameter | 7 in / 177.8 mm |
| Pitch | 6 in / 152.4 mm |
| Number of Blades | 2 |
| Rotation | CW – Reverse / Pusher |
| Hub Diameter | 0.50 in / 12.7 mm |
| Hub Thickness | 0.33 in / 8.38 mm |
| Shaft Diameter | 1/4 in / 6.35 mm |
| Weight | 0.28 oz / approx. 7.9 g |
| Colour | Grey |
| Adapter Rings | LPAR18SF / LPARM12SF |
| Application | Electric Aircraft / UAV / FPV |
