Description
About This Product

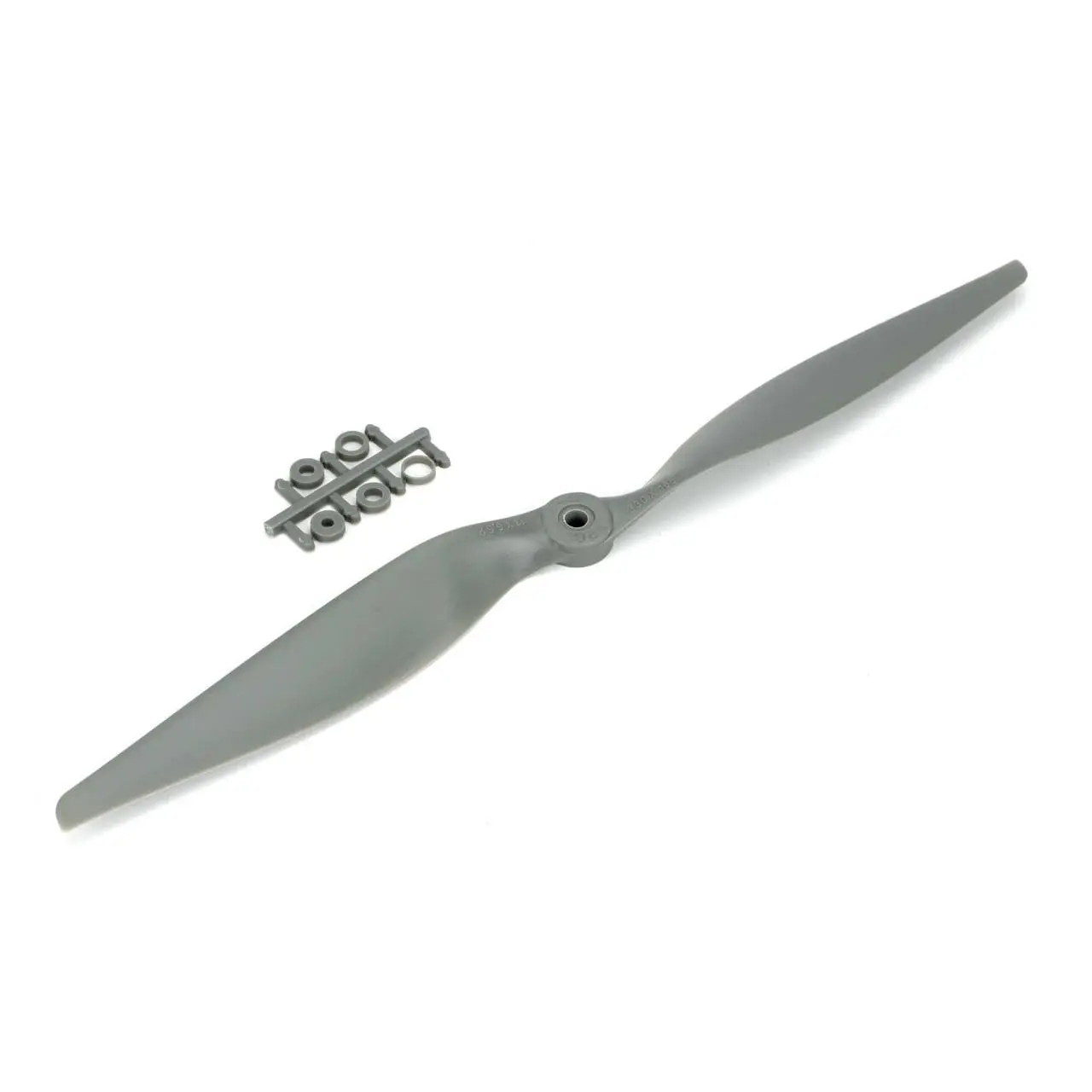

The APC 20×10E Thin Electric Propeller is a large two-blade electric aircraft propeller designed for electric-powered aircraft and compatible UAV propulsion systems. With a 20-inch diameter and 10-inch pitch, it is intended for larger electric propulsion setups where the motor, battery and ESC are properly matched.
Features
- 20-inch diameter
- 10-inch pitch
- Two-blade configuration
- Thin Electric design
- CCW – standard/tractor rotation
- Grey finish
- Lightweight construction
- Designed for electric motors
- Suitable for larger model aircraft
- Suitable for compatible UAV applications
- Uses APC LPAR06E adapter rings
- Includes one set of adapter rings
- 1/4-inch shaft compatibility
- Non-folding propeller
Technical Specifications
| Specification | Details |
|---|---|
| Brand | APC |
| Product Type | Thin Electric Propeller |
| Model | 20×10E |
| Part Number | LP20010E |
| Diameter | 20 in / 508 mm |
| Pitch | 10 in / 254 mm |
| Number of Blades | 2 |
| Rotation | CCW – Standard / Tractor |
| Hub Diameter | 1.25 in / 31.75 mm |
| Hub Thickness | 0.50 in / 12.70 mm |
| Shaft Diameter | 1/4 in / 6.35 mm |
| Weight | 3.39 oz / approx. 96.0 g |
| Colour | Grey |
| Adapter Rings | LPAR06E |
| Application | Electric Aircraft / UAV |
