Description
About This Product

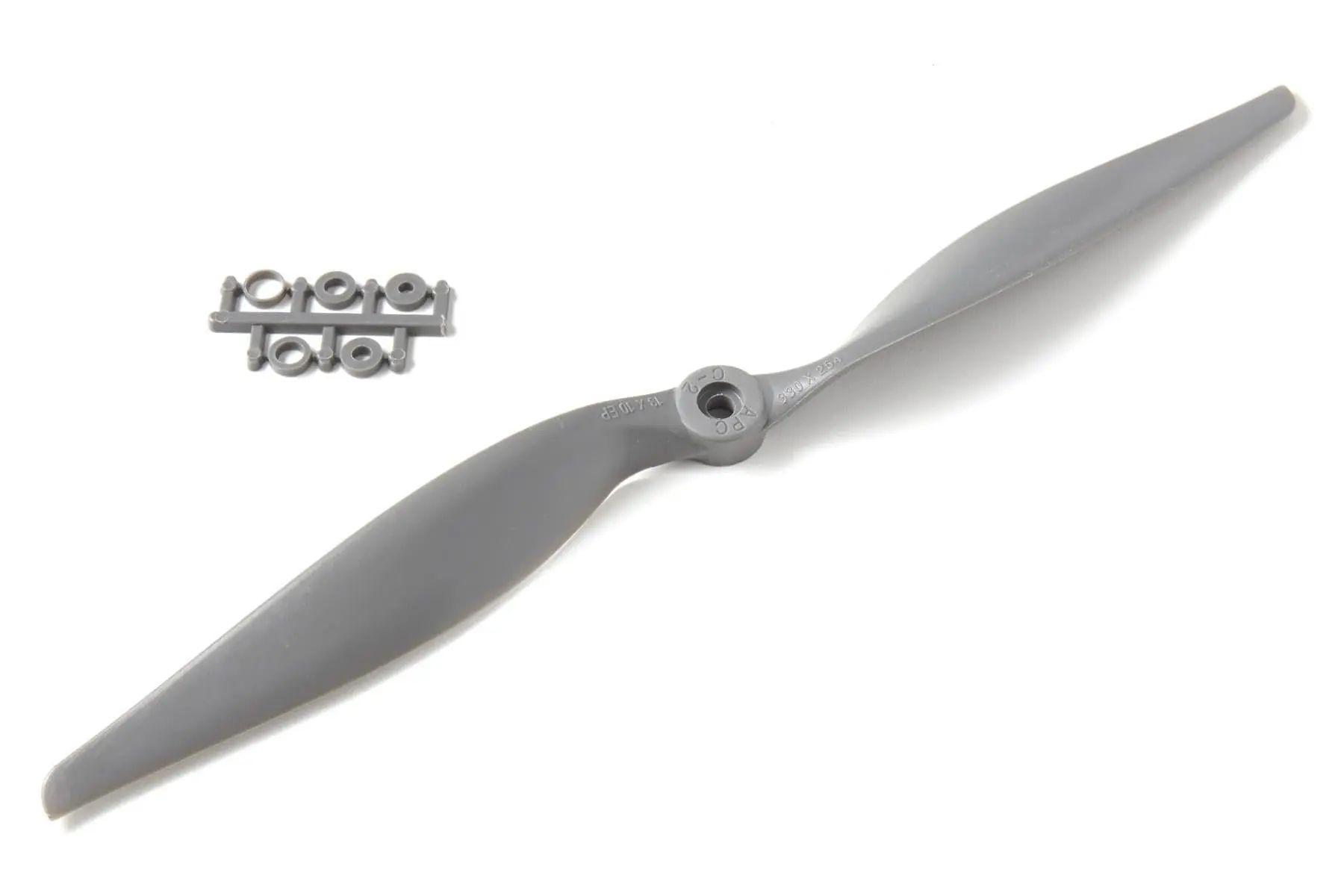

The APC 19×10EP Thin Electric Propeller is a two-blade electric aircraft propeller designed for reverse-rotation and pusher applications. It combines a 19-inch diameter with a 10-inch pitch, making it suitable for appropriately matched electric propulsion systems used in larger model aircraft and compatible UAV platforms.
Features
- 19-inch diameter
- 10-inch pitch
- Two-blade configuration
- Thin Electric construction
- Reverse-rotation / pusher design
- CW orientation in pusher listings
- Grey finish
- Designed for electric motors
- Suitable for larger model aircraft
- Suitable for compatible UAV applications
- Uses APC LPAR06E adapter rings
- Includes one set of adapter rings
- Non-folding propeller
Technical Specifications
| Specification | Details |
|---|---|
| Brand | APC |
| Product Type | Thin Electric Pusher Propeller |
| Model | 19×10EP |
| Part Number | LP19010EP |
| Diameter | 19 in / 482.6 mm |
| Pitch | 10 in / 254 mm |
| Number of Blades | 2 |
| Rotation | CW – Pusher / Reverse Rotation |
| Hub Diameter | 1.25 in / 31.75 mm |
| Hub Thickness | 0.49 in / 12.45 mm |
| Shaft Diameter | 1/4 in / 6.35 mm |
| Weight | 2.93 oz / approx. 83.0 g |
| Colour | Grey |
| Adapter Rings | LPAR06E |
| Application | Electric Aircraft / UAV |
