Description
About This Product

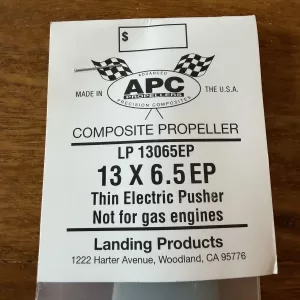

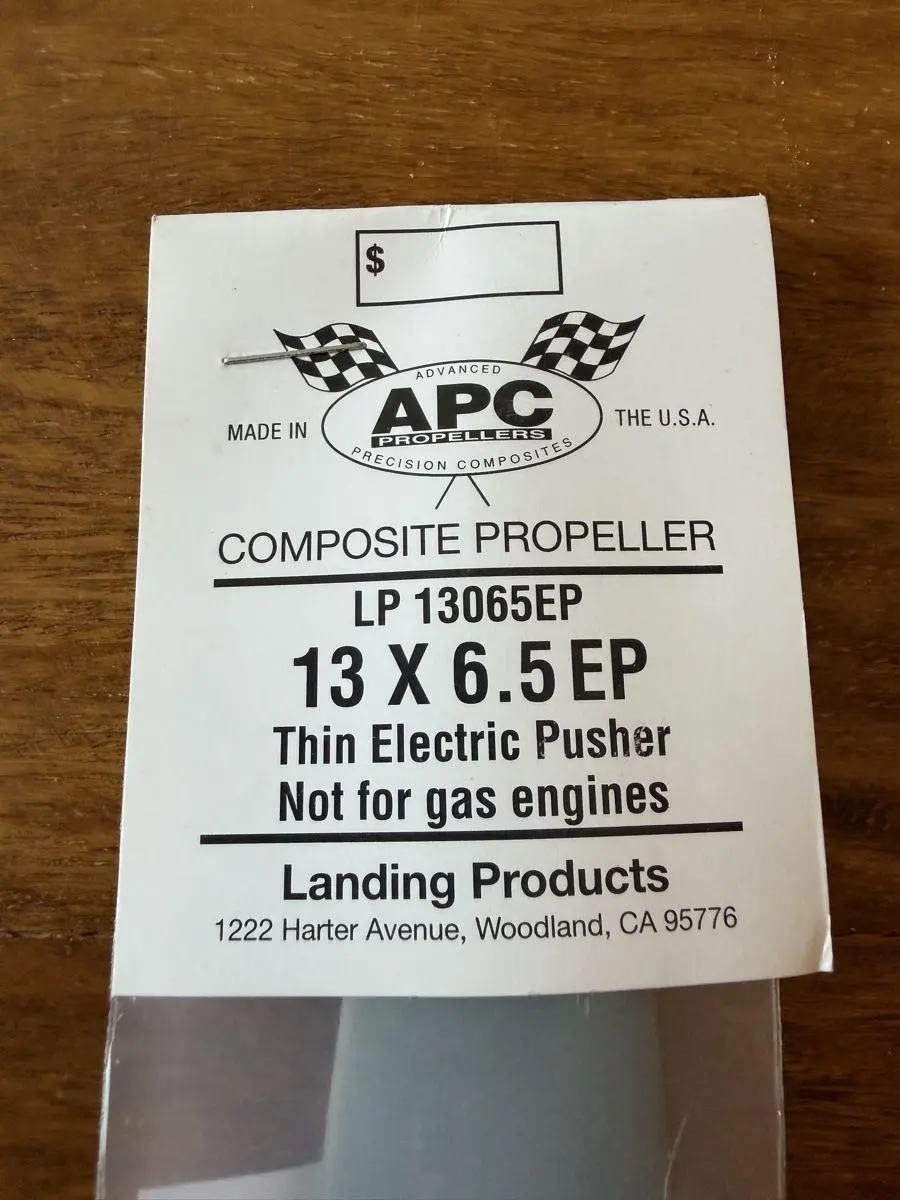

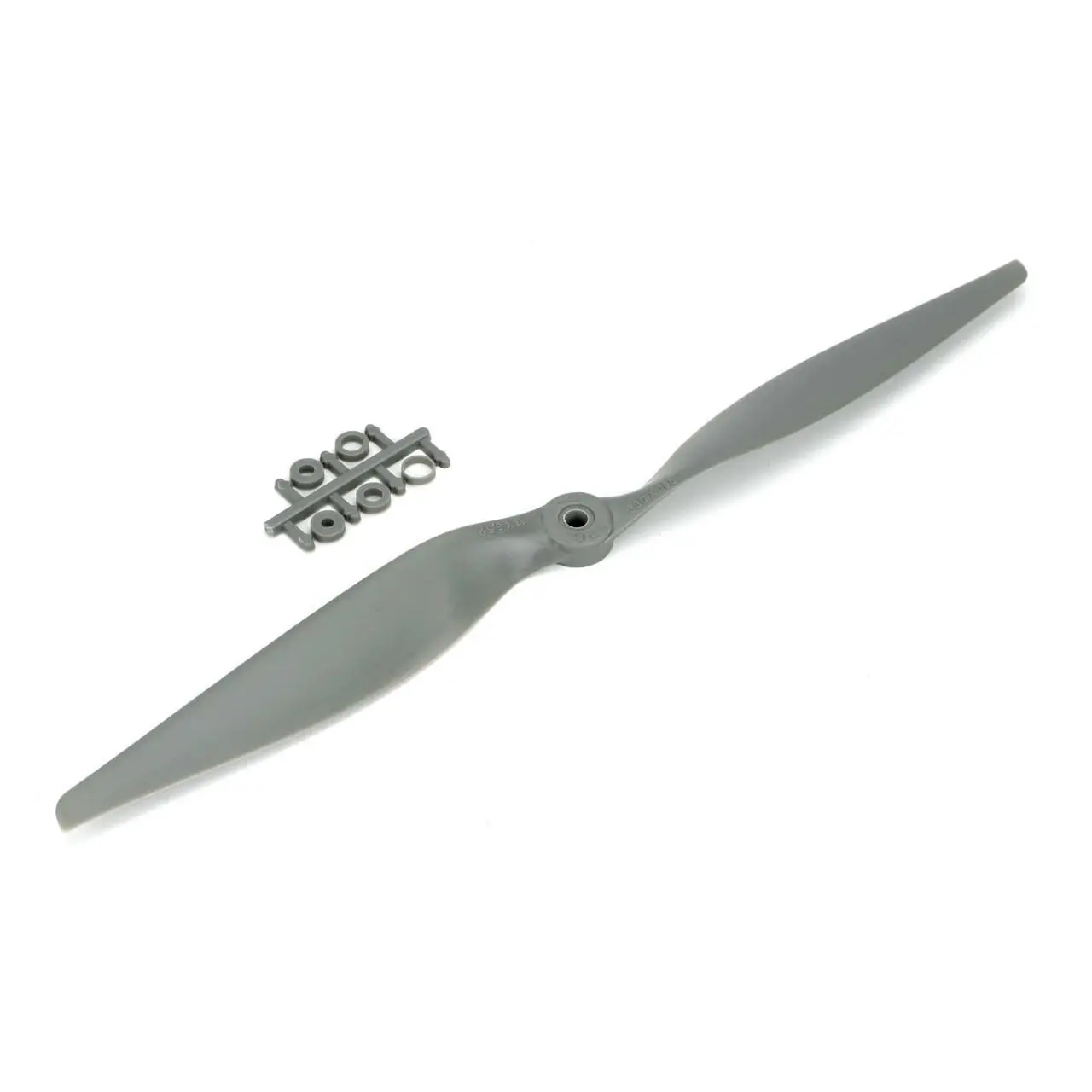

The APC 13×6.5EP Thin Electric Propeller is a two-blade propeller designed for electric-powered aircraft and compatible UAV propulsion systems. It combines a 13-inch diameter with a 6.5-inch pitch, making it suitable for electric propulsion setups where this propeller size and pitch are matched with the motor and operating voltage.The EP version is APC’s reverse-rotation configuration, intended for applications where the propulsion system requires the opposite rotation from the standard 13×6.5E propeller.
Features
- 13-inch diameter
- 6.5-inch pitch
- Two-blade design
- Thin Electric configuration
- Reverse-rotation version
- Designed for electric propulsion
- Suitable for compatible aircraft and UAV applications
- Grey finish
- Uses APC LPAR06E adapter rings
- One set of adapter rings included
- Suitable for appropriately matched electric motors
Technical Specifications
| Specification | Details |
|---|---|
| Brand | APC |
| Product Type | Thin Electric Propeller |
| Model | 13×6.5EP |
| Part Number | LP13065EP |
| Diameter | 13 in / 330.2 mm |
| Pitch | 6.5 in / 165.1 mm |
| Blades | 2 |
| Rotation | Reverse / Left-Hand Rotation |
| Hub Diameter | 0.80 in / 20.32 mm |
| Hub Thickness | 0.41 in / 10.41 mm |
| Shaft Diameter | 1/4 in / 6.35 mm |
| Weight | 1.06 oz / approx. 30.1 g |
| Colour | Grey |
| Adapter Rings | LPAR06E |
| Application | Electric Aircraft / UAV |
