MPN: HX4-06038
Manufacturer: CubePilot

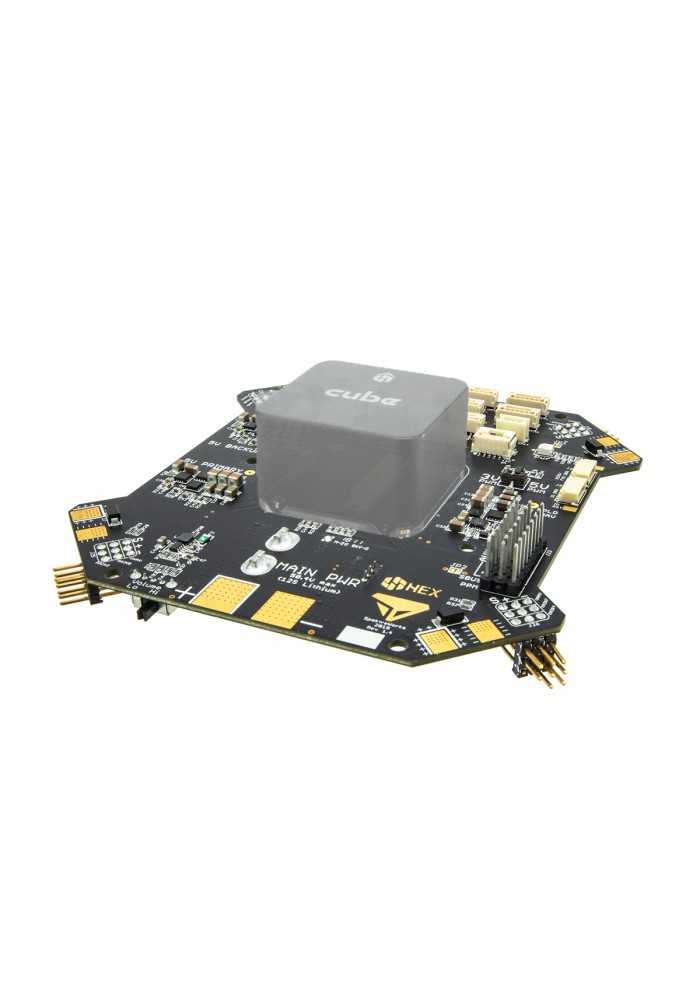

The CubePilot Kore Carrier Board is a high-performance multi-rotor carrier board designed to simplify UAV integration by eliminating complex wiring and consolidating critical system components into a single platform. Built for professional UAV systems, it combines power distribution, signal routing, and redundancy into a clean, efficient architecture.
Optimized for quadcopters, X8 configurations, and octocopters, the Kore Carrier Board supports full Cube autopilot functionality and can be integrated into a wide range of platforms including multirotors, fixed-wing aircraft, rovers, subs, and antenna trackers.
With built-in power distribution, redundant power supply systems, and failover protection, it ensures reliable operation for mission-critical applications. Dedicated payload power outputs and integrated voltage/current sensing further enhance system control and monitoring.
FEATURES AT-A-GLANCE
- Up to 12-cell Lithium battery (50.4V)
- 140A continuous current with 280A surges
- Power and signal for ESCs conveniently located in corners
- 12V navigation light power available at each cornerBuilt-in power distribution
- Built-in voltage and current sense
- Redundant power supplies for flight critical components
- Payload connectors with resettable fuses for 5V, 12V, and direct battery power
- Good power and error indicator lights
- Built-in buzzer with volume control
- Connectors for every function of Pixhawk Cube
- Easily accessible PWM voltage level selector (3.3V or 5V)
- Resistant to ground bounce on PWM signal
- Connector-compatible with standard ProfiCNC carrier board
- Connector ports for debugging IO and FMU processors
STANDARD CABLES:
4-pin JST GH
6-pin JST GH
PAYLOAD POWER CABLES:
4-pin Clik-Mate 1.25mm (for 5V payload power)
5-pin Clik-Mate 1.25mm (for 12V payload power)
6-pin Clik-Mate 1.25mm (for battery payload power)
NOTE: Pixhawk 2.1 Cube NOT included.
