Description
About This Product

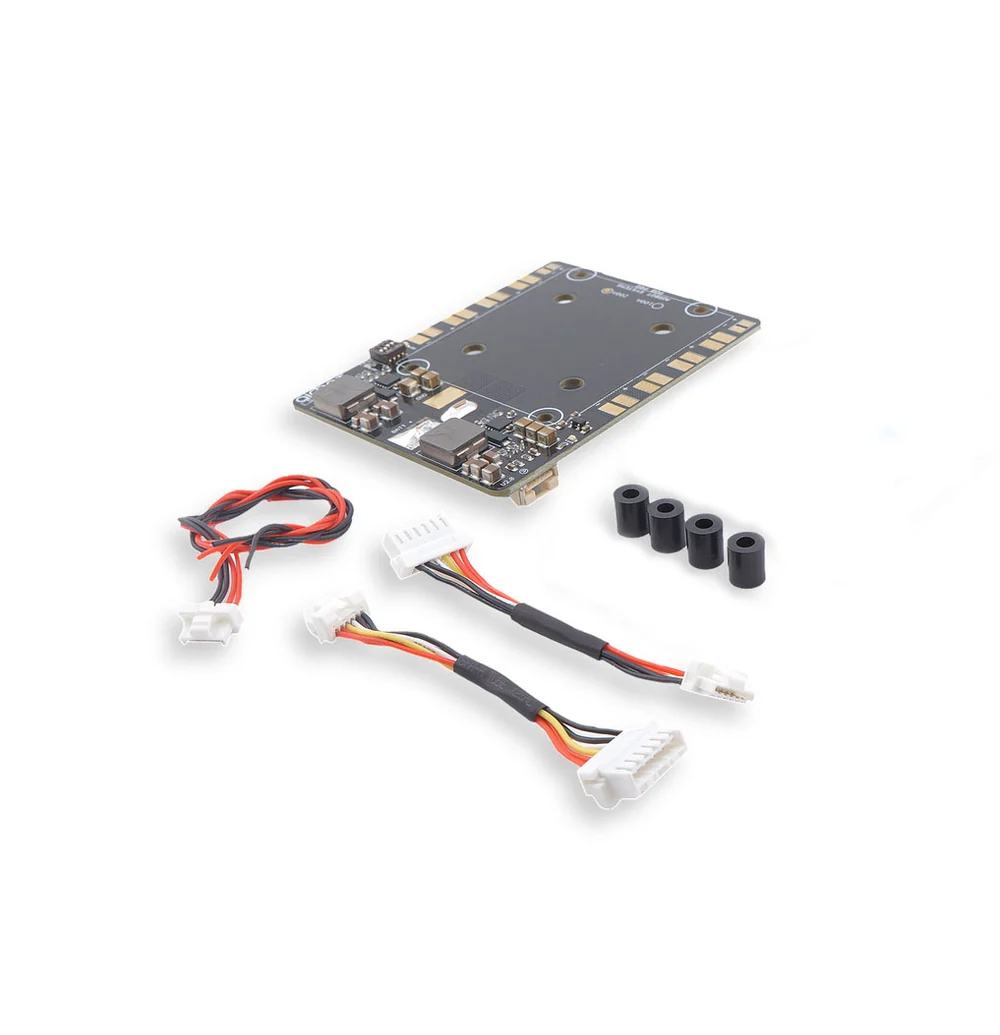

The Airbot Mini PDB PRO v2 – 100A is a compact power distribution and power-management board developed for UAV platforms using Cube-based flight-control systems. It combines high-current power distribution with integrated voltage and current monitoring and two regulated power supplies.
Features
- 100A current-sensing version
- Supports battery input up to 12S / 50.4V
- Integrated high-current power distribution
- 10 pairs of power pads
- 8 pairs for ESC connections
- 2 smaller pairs for accessories
- Two integrated regulated power supplies
- Power Supply 1 provides fixed 5.3V
- Power Supply 2 can provide 5.3V or 12V
- Up to 3A continuous output from each power supply
- Integrated voltage sensing
- Integrated current sensing
- Compact board design for UAV installations
- Suitable for Cube-based autopilot systems
- Includes mounting spacers and power cables
- Can be used as a standalone PDB or with the Airbot Mini Carrier Board PRO v2
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Airbot Systems |
| Product Name | Mini PDB PRO v2 – 100A |
| Product Type | Power Distribution Board |
| Maximum Current Rating | 100A |
| Board Dimensions | 65.5 × 85 mm |
| Weight | Approx. 44 g |
| Maximum Input Voltage | 50.4V / 12S |
| Current Sensing | Up to 100A |
| Voltage Sensing | Up to 12S |
| Power Supply 1 | 5.3V |
| Power Supply 1 Current | 3A continuous |
| Power Supply 2 | 5.3V / 12V selectable |
| Power Supply 2 Current | 3A continuous |
| ESC Power Connections | 8 pairs |
| Accessory Power Connections | 2 smaller pairs |
| Application | UAV / Drone / Multirotor |
| Compatible Ecosystem | Cube / Pixhawk Cube |
