Description
About this Item

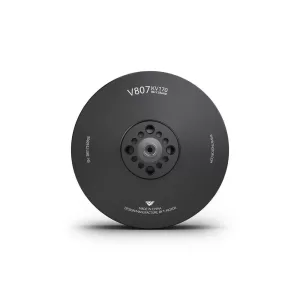

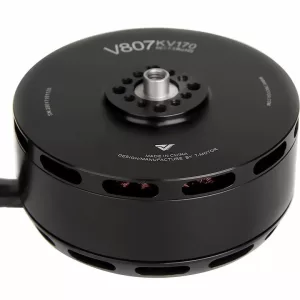

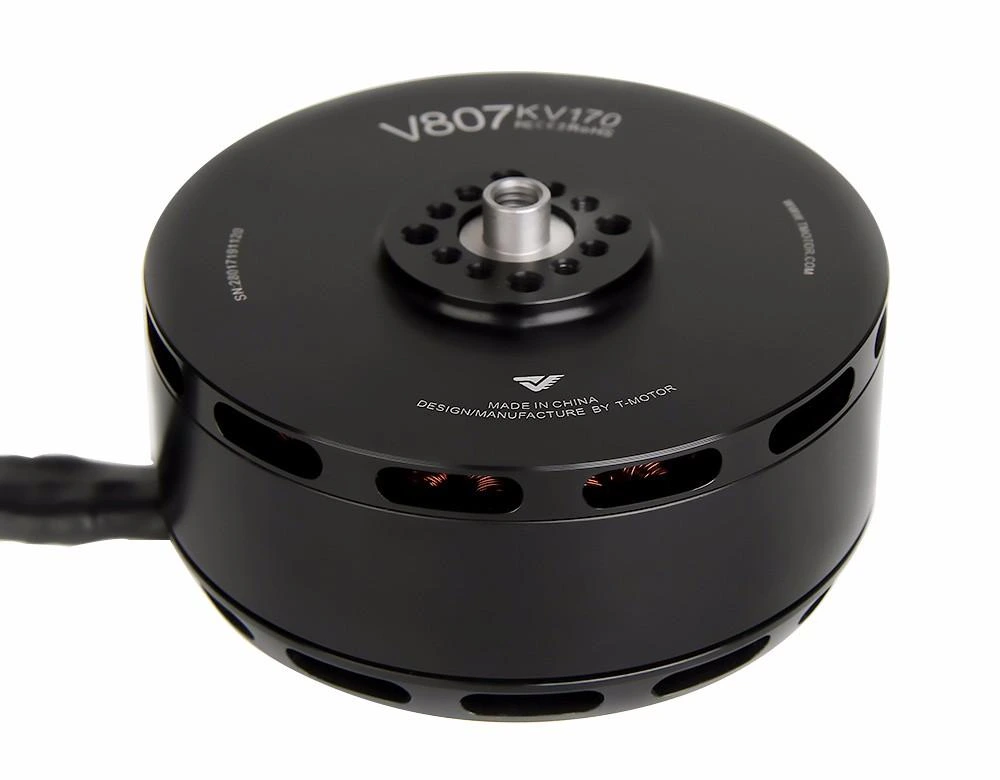

The T-Motor V807 KV170 12S VTOL Brushless Motor is a professional heavy-lift propulsion motor developed for VTOL UAVs, fixed-wing hybrid aircraft, and industrial drone platforms. Designed for high-thrust applications, it combines exceptional power output with efficient cooling and robust construction to ensure reliable performance during long-duration missions. Its precision-balanced rotor, industrial-grade bearings, and optimized airflow design make it ideal for cargo delivery, mapping, surveying, inspection, and emergency response drones.
Features
- Designed for VTOL and heavy-lift UAV platforms
- High-efficiency brushless outrunner motor
- Optimized for 12S LiPo battery systems
- High thrust-to-weight ratio for payload-carrying missions
- Advanced centrifugal cooling system
- Precision-balanced rotor for smooth operation
- IP35-rated dust and splash protection
- High-temperature resistant internal winding insulation
- Durable imported bearings for long service life
- Suitable for industrial and commercial UAV operations
Specifications
| Specification | Details |
|---|---|
| Product Type | Brushless VTOL UAV Motor |
| Model | T-Motor V807 |
| KV Rating | 170KV |
| Motor Type | Brushless Outrunner |
| Battery Compatibility | 12S LiPo (42–52V) |
| Maximum Power | Up to 6800W |
| Peak Current | 150A (Continuous 180s) |
| Maximum Thrust | Up to 21kg |
| Protection Rating | IP35 |
| Motor Weight | 650g (Approx. 800g including cables) |
| Motor Size | Ø88.5 × 46.4mm |
| Shaft Diameter | 12mm (Input) / 8mm (Output) |
| Recommended Propellers | G27×8.8, G28×9.2, G29×9.5 Carbon Fiber |
| Recommended ESC | T-Motor FLAME 180A 12S V2.0 |
| Applications | VTOL UAVs, Heavy-Lift Drones, Cargo UAVs, Surveying, Mapping, Inspection, Industrial Drone Platforms |
