T Motor V804 KV170 12S VTOL Motor

Description

About this Item

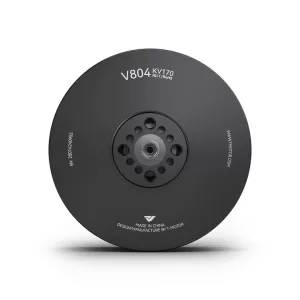

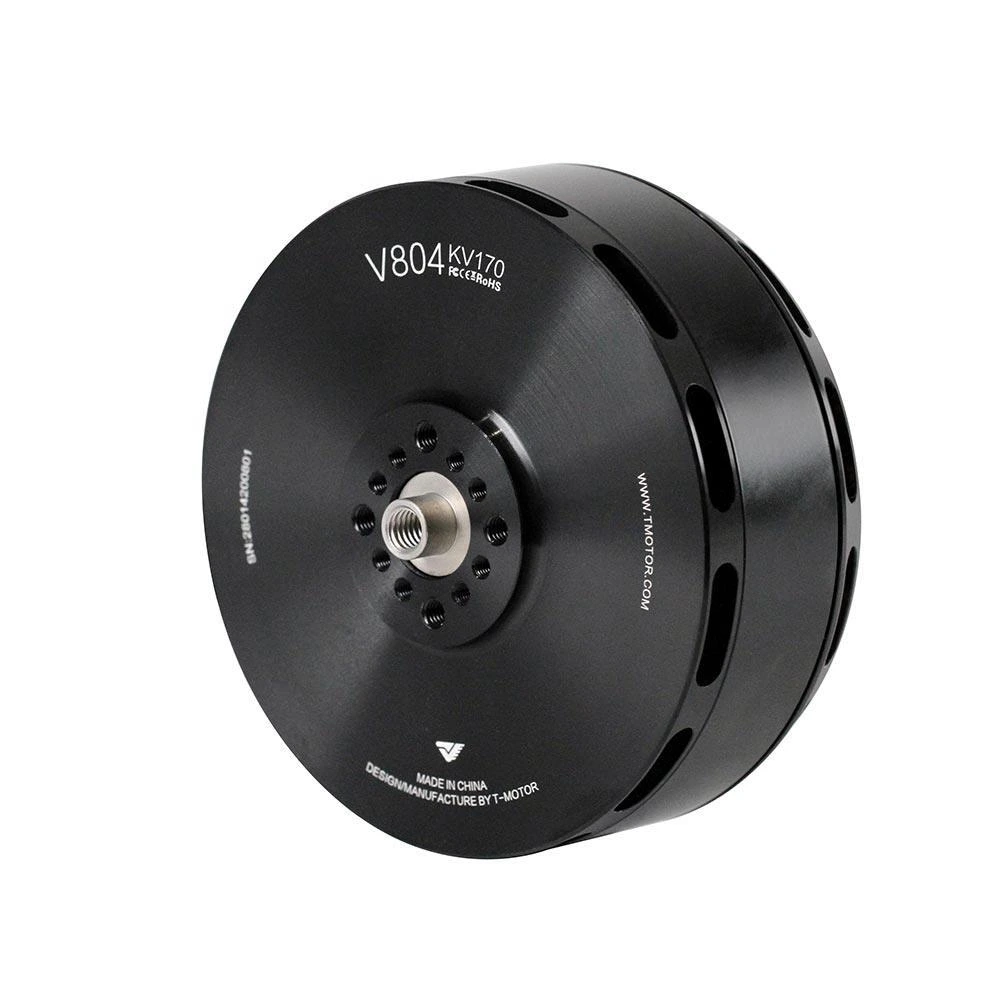

The T-Motor V804 KV170 12S VTOL Motor is a high-performance brushless motor developed for VTOL UAVs, heavy-lift drones, and fixed-wing vertical take-off platforms. Designed to deliver exceptional thrust with high efficiency, it features a robust construction, precision-balanced rotor, and optimized cooling system for reliable operation during demanding missions. Its compact design and industrial-grade components make it an excellent choice for mapping, surveillance, cargo delivery, inspection, and commercial UAV applications.

Features

• Designed specifically for VTOL and heavy-lift UAVs
• High-efficiency brushless outrunner motor
• Optimized for 12S LiPo battery systems
• Produces up to 17kg maximum thrust
• IP35-rated dust and splash resistance
• Precision-balanced rotor for smooth, low-vibration operation
• Efficient heat dissipation for continuous high-load flights
• Durable industrial-grade bearings for long service life
• Supports demanding commercial and industrial missions
• Compatible with high-performance carbon fiber propellers


  Specifications

  Specification	Details
  Product Type	Brushless VTOL UAV Motor
  Model	T-Motor V804
  KV Rating	170KV
  Motor Type	Brushless Outrunner
  Battery Compatibility	12S LiPo (42–52V)
  Maximum Power	Up to 5200W
  Peak Current	115A (Continuous 180s)
  Maximum Thrust	Up to 17kg
  Protection Rating	IP35
  Motor Weight	560g (Approx. 710g including cable)
  Shaft Diameter	12mm (Input) / 8mm (Output)
  Motor Dimensions	Ø88.5 × 43.4mm
  Recommended Propellers	G26×8.5, G27×8.8, G28×9.2 Carbon Fiber
  Recommended ESC	T-Motor FLAME 180A 12S V2.0
  Applications	VTOL UAVs, Heavy-Lift Drones, Cargo UAVs, Mapping, Surveying, Inspection, Industrial Drone Platforms
