Description
About This Product

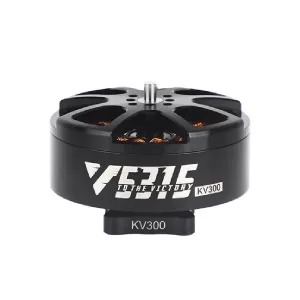

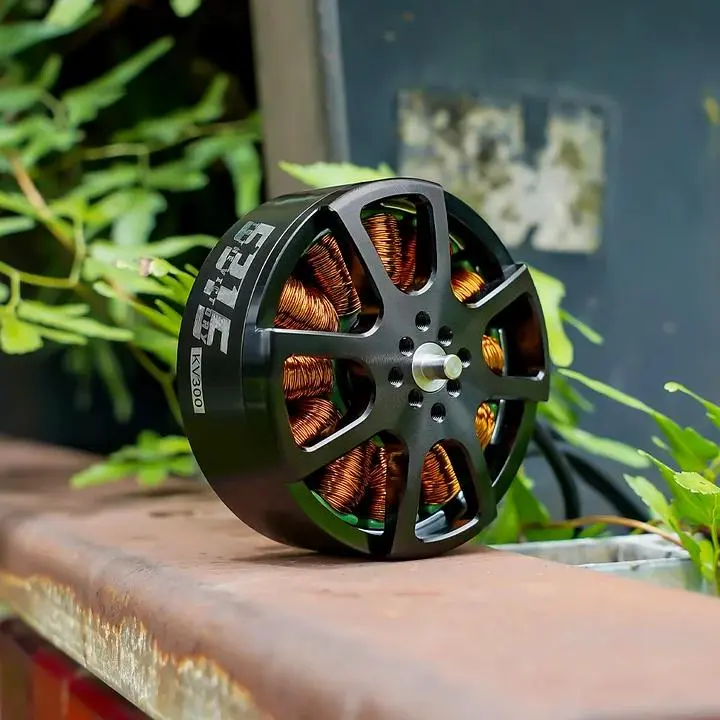

The T-Motor V5315 KV300 is a high-power brushless motor designed for large cinematic FPV and heavy-lift drone platforms. It is optimized for 12S LiPo systems and large propellers, providing high thrust and strong torque for professional aerial filming and heavy-payload applications. The motor uses a 12N14P configuration, imported 606-ZZ bearings, and supports T-Motor Cine propellers as well as traditional M6 propeller mounting through the supplied adapter.
Features
- 300KV configuration optimized for 12S LiPo systems
- Maximum tested thrust up to 8.6 kg
- 12N14P motor configuration
- Designed for large 13–15 inch propellers
- Imported 606-ZZ bearings
- 4 mm shaft diameter
- 14AWG × 600 mm motor cable
- Supports T-Motor Cine propellers
- Compatible with traditional M6 single-hole propellers using adapter
- Suitable for 15-inch X4/X8 cinematic and heavy-lift platforms
- High-power design for professional camera and payload applications
Technical Specifications
| Specification | Details |
|---|---|
| Motor Model | V5315 KV300 |
| KV Rating | 300KV |
| Recommended Voltage | 12S LiPo |
| Motor Dimension | Φ62 × 44.7 mm |
| Configuration | 12N14P |
| Maximum Power | 5252 W (1 sec) |
| Peak Current | 116 A (1 sec) |
| Maximum Thrust | 8600 g |
| Internal Resistance | 32 mΩ |
| Idle Current | 1.8 A @ 10V |
| Shaft Diameter | 4 mm |
| Bearing | Imported 606-ZZ |
| Lead Wire | 14AWG × 600 mm |
| Mounting Pattern | Φ30-M4-4 |
| Propeller Mounting | Φ15/Φ12-M3-4 / M6 with adapter |
| Weight Including Cable | 390 g |
| Recommended Propeller | T-Motor Cine1510 |
| Recommended Frame | 15-inch X4 |
| Recommended ESC | C80A 5–12S Single ESC |
Applications
- Heavy-lift FPV drones
- Professional cinematic drones
- 15-inch X4/X8 platforms
- Aerial photography and videography
- Large camera payload systems
- Industrial heavy-lift UAVs
