Description
About the Product

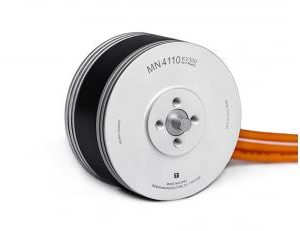

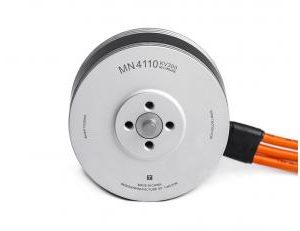

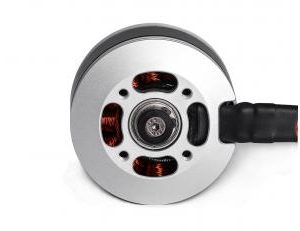

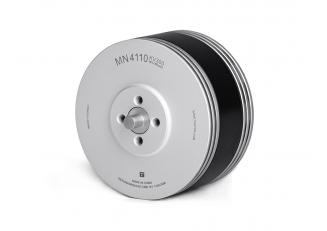

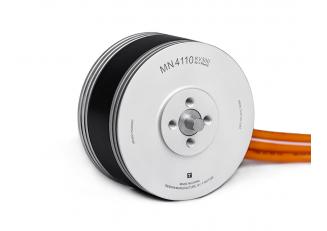

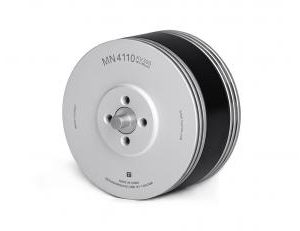

The MN4110 KV400 combines a 40 mm-class stator with a high-temperature-resistant construction and balanced rotor design. The KV400 version is optimized for P15×5 to P16×5.4 propellers, making it suitable for UAV platforms requiring a balance between thrust and motor efficiency.
Key Features
- 400KV brushless UAV motor
- T-MOTOR Navigator Series
- 12N14P configuration
- 6S LiPo rated operation
- Centrifugal cooling design
- N45SH magnets
- 686ZZ / 696ZZ bearings
- 4 mm external shaft diameter
- 6 mm internal shaft diameter
- 16 AWG × 150 mm motor cable
- Rotor dynamic-balance standard ≤5 mg
- Designed for multirotor, VTOL and fixed-wing UAVs

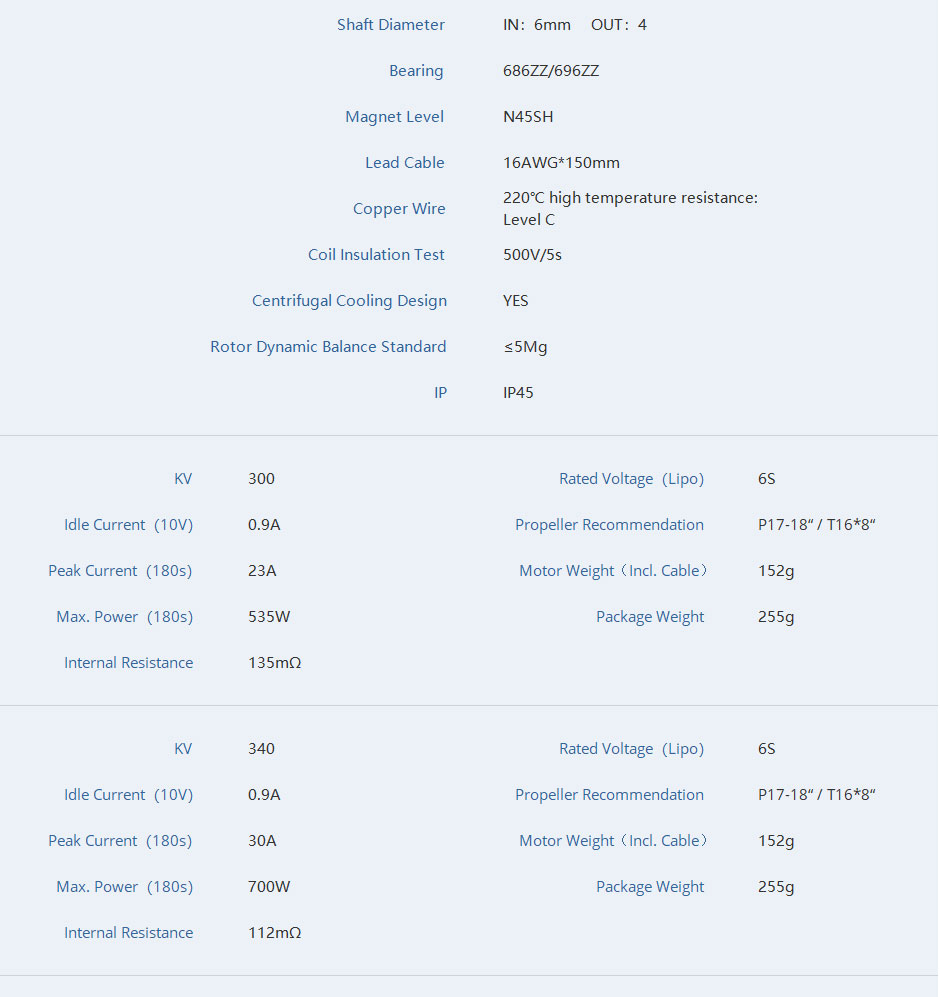

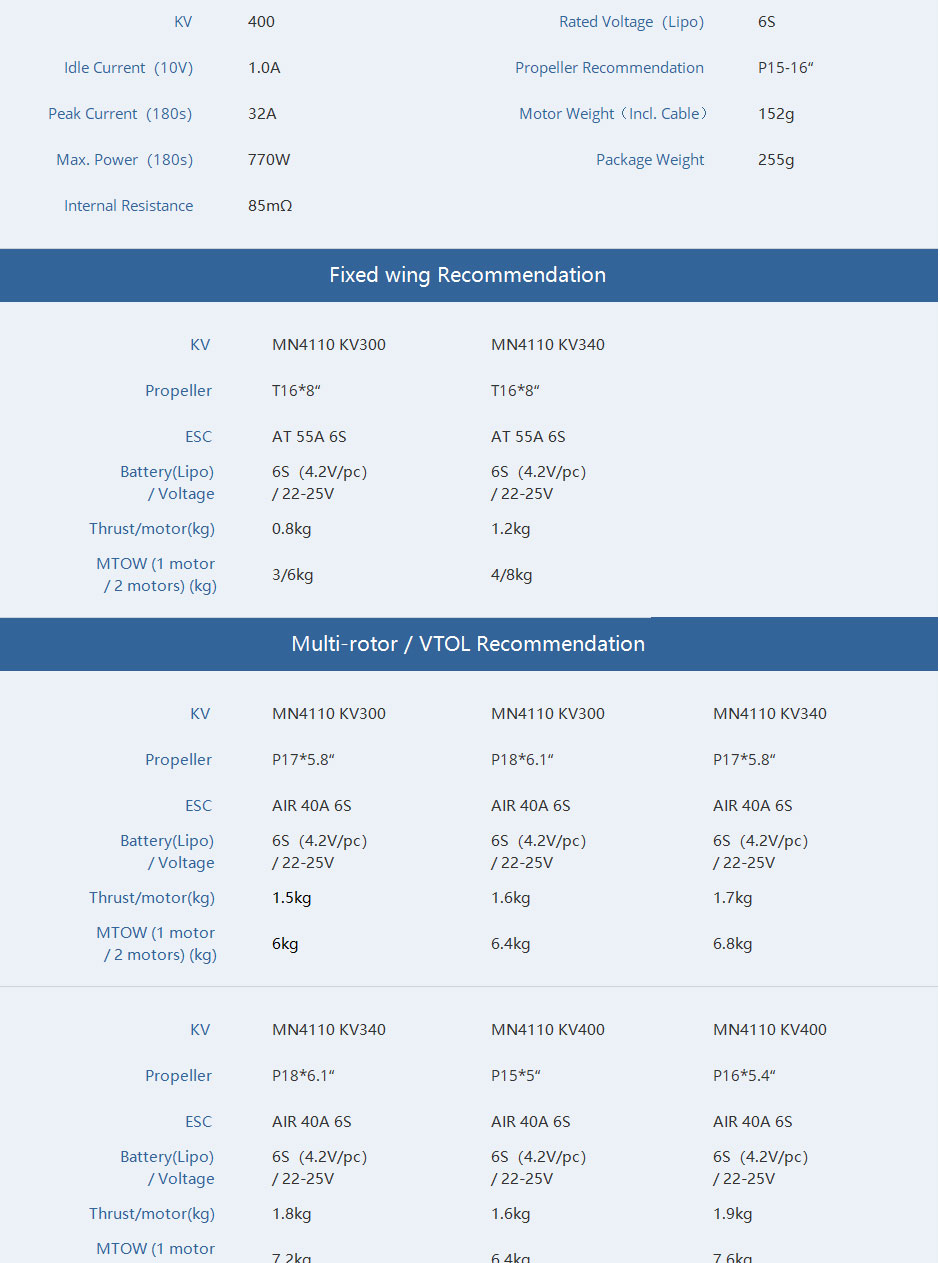

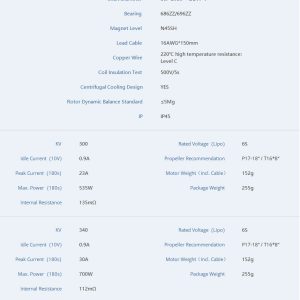

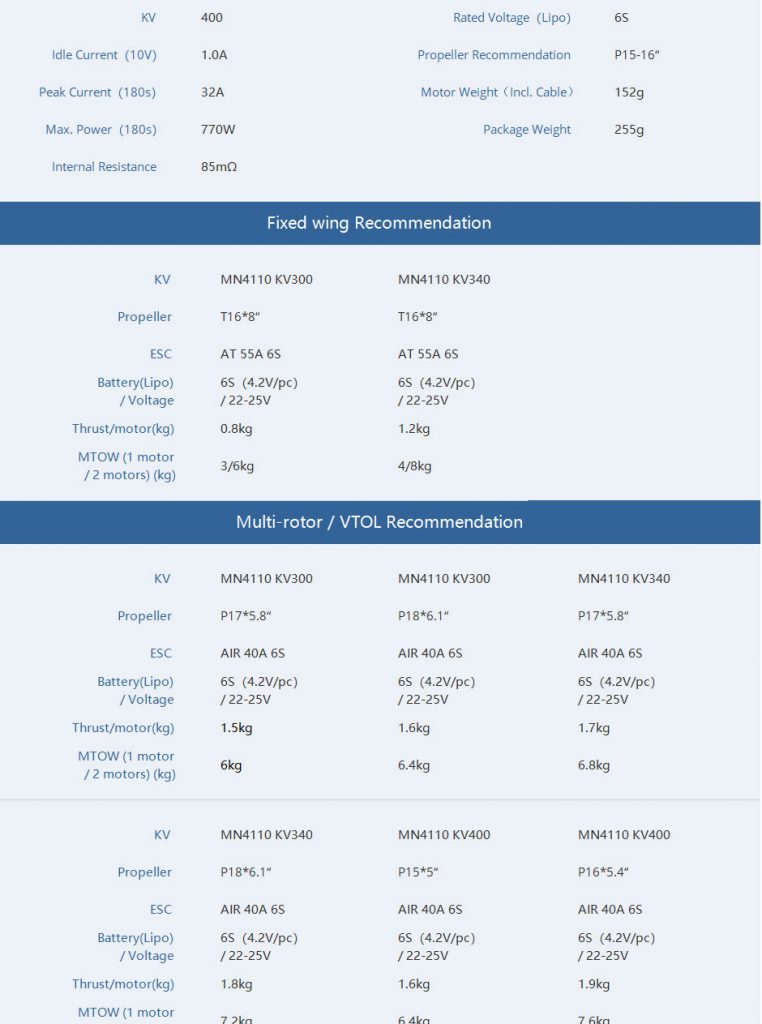

Technical Specifications
| Specification | MN4110 KV400 |
|---|---|
| Motor Type | Brushless Outrunner |
| KV Rating | 400KV |
| Configuration | 12N14P |

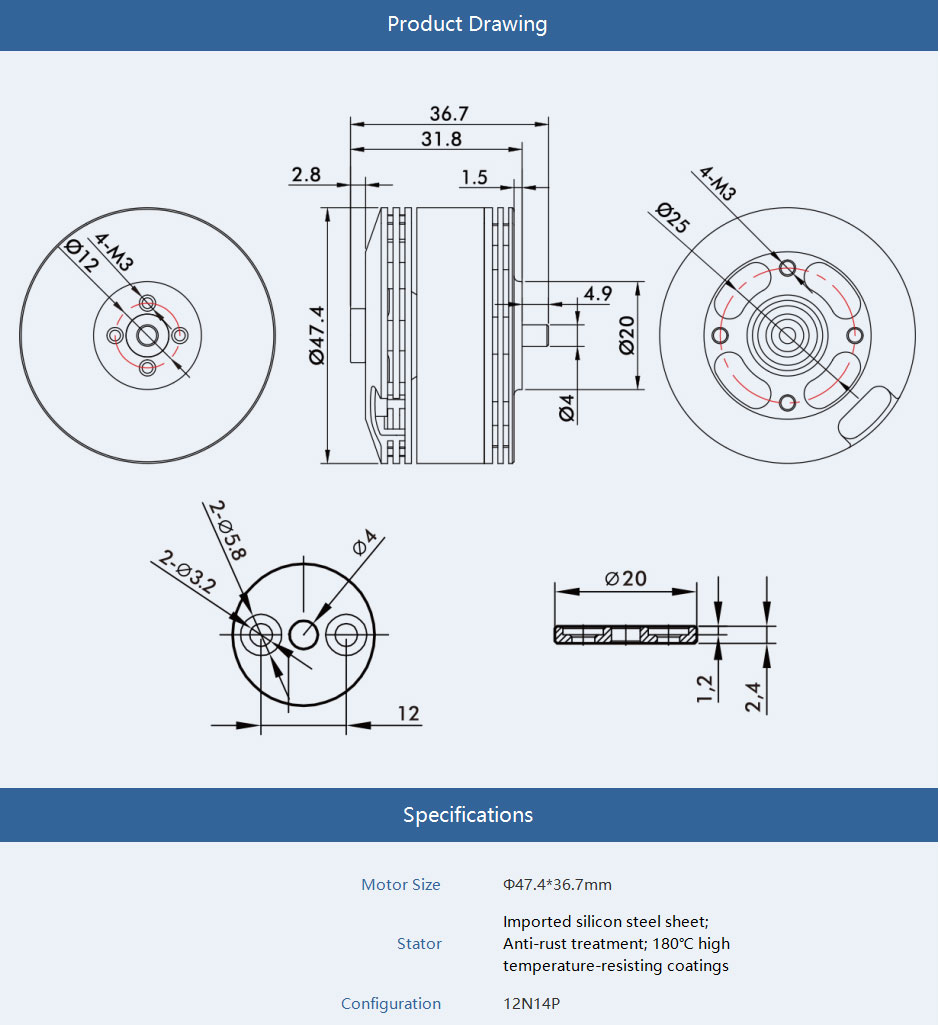

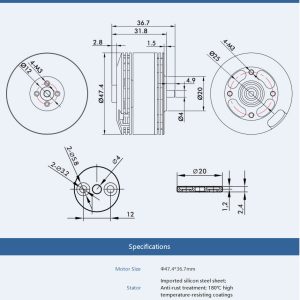

| Motor Dimensions | Φ47.4 × 36.7 mm |
| Stator Diameter | 41 mm class |
| Shaft Diameter | 6 mm IN / 4 mm OUT |
| Bearing | 686ZZ / 696ZZ |
| Magnet Grade | N45SH |
| Motor Cable | 16 AWG × 150 mm |
| Motor Weight incl. Cable | 152 g |
| Rated Battery | 6S LiPo |
| Idle Current @ 10V | 1.0 A |
| Peak Current / 180s | 32 A |
| Max Power / 180s | 770 W |
| Internal Resistance | 85 mΩ |
| Cooling | Centrifugal Cooling |
| Rotor Dynamic Balance | ≤5 mg |
