Description
About the Product

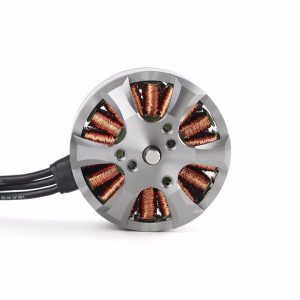

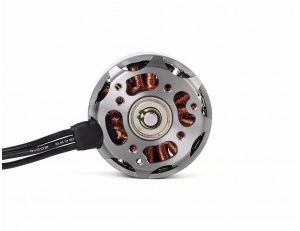

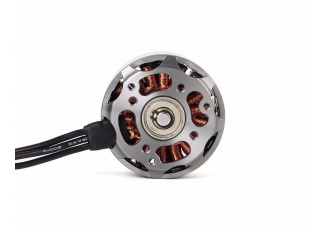

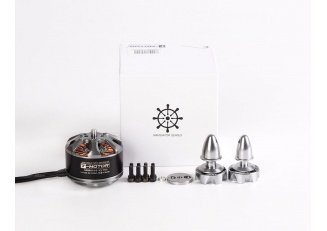

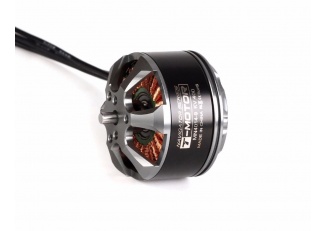

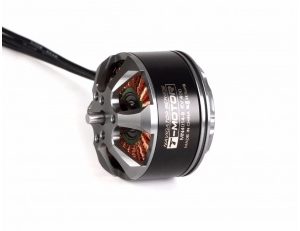

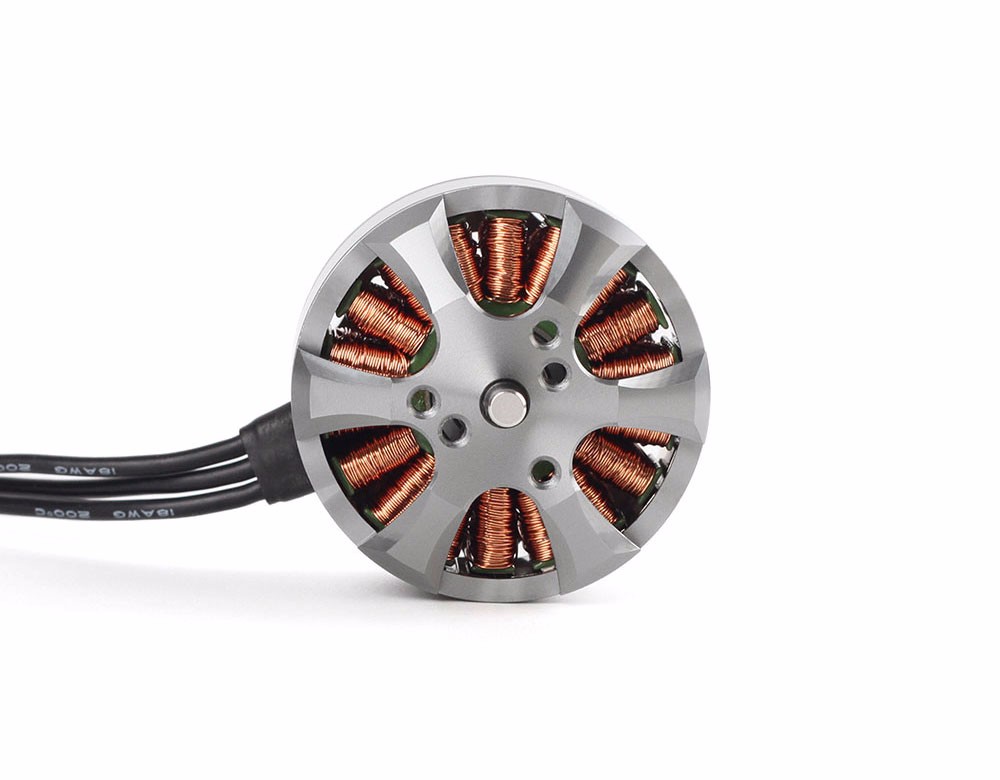

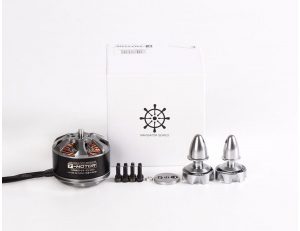

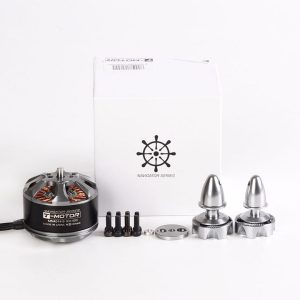

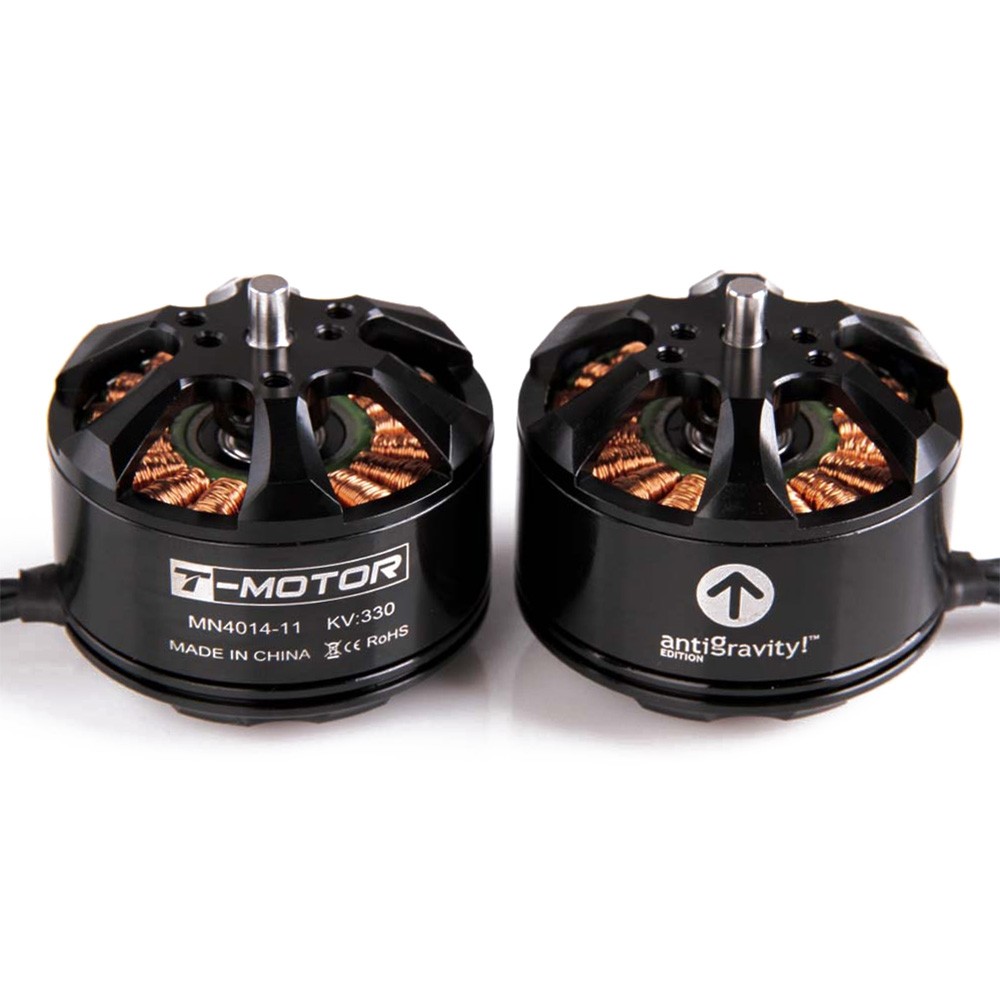

The MN4014 KV330 is built for UAV applications where stable propulsion and efficient long-duration operation are important. It uses an 18N24P configuration, 600 mm motor leads and a 40 mm stator, making it suitable for aerial photography and other professional UAV platforms.
Key Features
- 330KV brushless motor
- T-MOTOR Navigator Series
- 18N24P configuration
- 40 mm stator diameter
- 14 mm stator height
- 4 mm shaft
- Supports 4–8S LiPo
- 600 mm cable
- 18 AWG motor wire
- Designed for multirotor, VTOL and fixed-wing UAVs
- Maximum continuous current: 25A / 180s
- Maximum power: 750W / 180s
- Tested thrust up to 2,600 g with the T-MOTOR 17×5.8 CF propeller under the manufacturer’s test conditions.
Technical Specifications
| Specification | MN4014 KV330 |
|---|---|
| Motor Type | Brushless Outrunner |
| KV Rating | 330KV |
| Configuration | 18N24P |
| Internal Resistance | 85 mΩ |
| Motor Dimensions | Φ44.7 × 34.5 mm |
| Stator Diameter | 40 mm |
| Stator Height | 14 mm |
| Shaft Diameter | 4 mm |
| Cable Length | 600 mm |
| Wire Gauge | 18 AWG |
| Weight Without Cable | 150 g |
| Weight With Cable | 171 g |
| Idle Current @ 10V | 1.1 A |
| Battery | 4–8S LiPo |
| Max Continuous Current | 25 A / 180s |
| Max Power | 750 W / 180s |
