Description
About this Item

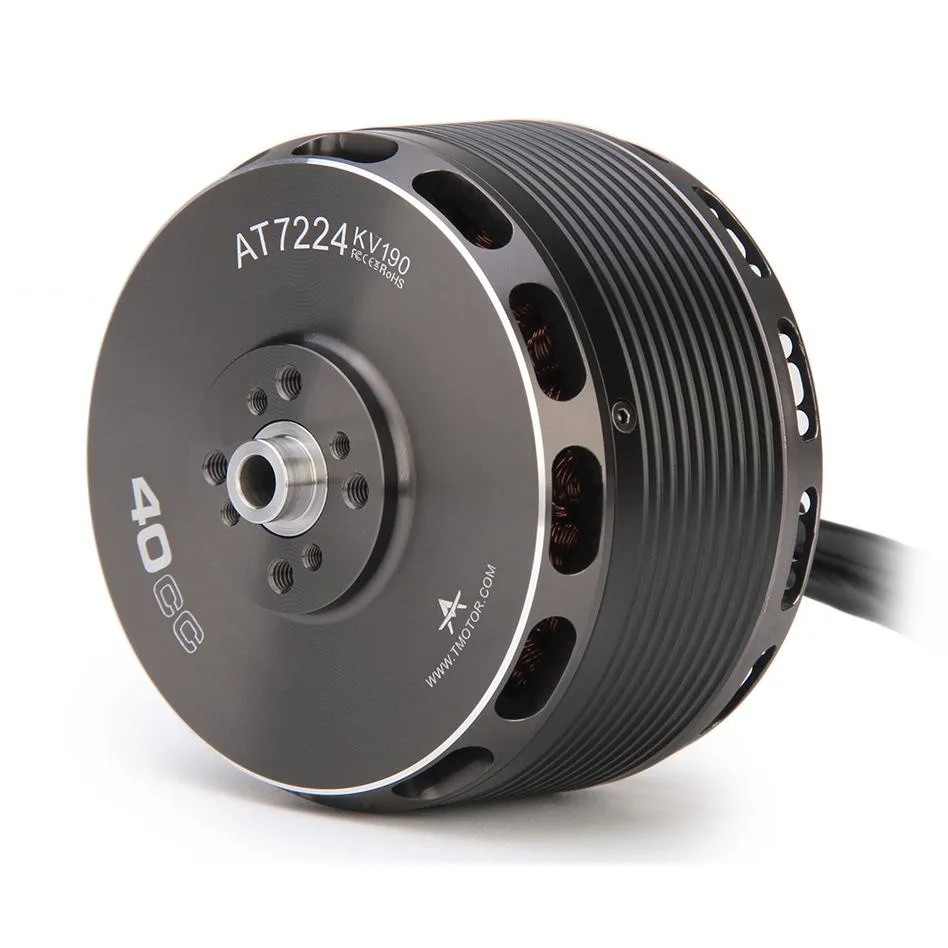

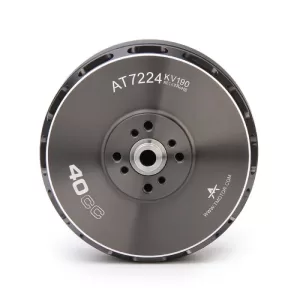

The T-Motor AT7224 40CC VTOL UAV Fixed Wing Long Shaft Motor KV190 is a high-performance brushless outrunner motor built for VTOL aircraft, fixed-wing UAVs, and 40CC-class aerial platforms. Designed for professional applications, it delivers powerful thrust, smooth throttle response, and excellent efficiency for long-endurance and heavy-payload missions. Its long shaft configuration ensures secure propeller mounting, while the robust construction and optimized cooling system provide reliable performance under demanding flight conditions.
Features
- Designed for VTOL and fixed-wing UAV platforms
- High-torque brushless outrunner motor
- Long shaft design for secure propeller installation
- Smooth and precise throttle response
- Optimized cooling for extended flight operations
- Precision-balanced rotor for low vibration
- Durable CNC-machined aluminum housing
- High-quality bearings for long service life
- Suitable for heavy payload and long-endurance flights
- Easy installation and maintenance
Specifications
| Specification | Details |
|---|---|
| Product Type | Brushless Outrunner Motor |
| Model | T-Motor AT7224 |
| KV Rating | 190KV |
| Motor Type | Brushless Outrunner |
| Battery Compatibility | 10S–12S LiPo |
| Maximum Power | Up to 6000W |
| Peak Current | Up to 135A |
| Motor Weight | Approx. 780g |
| Shaft Diameter | 10mm (Input) / 10mm (Output) |
| Motor Dimensions | Ø81.4 × 66.9mm |
| Recommended ESC | T-Motor AT115A ESC |
| Applications | VTOL UAVs, Fixed-Wing Aircraft, Cargo Drones, Mapping, Surveying, Inspection, Industrial UAVs |
