Description
About This Product

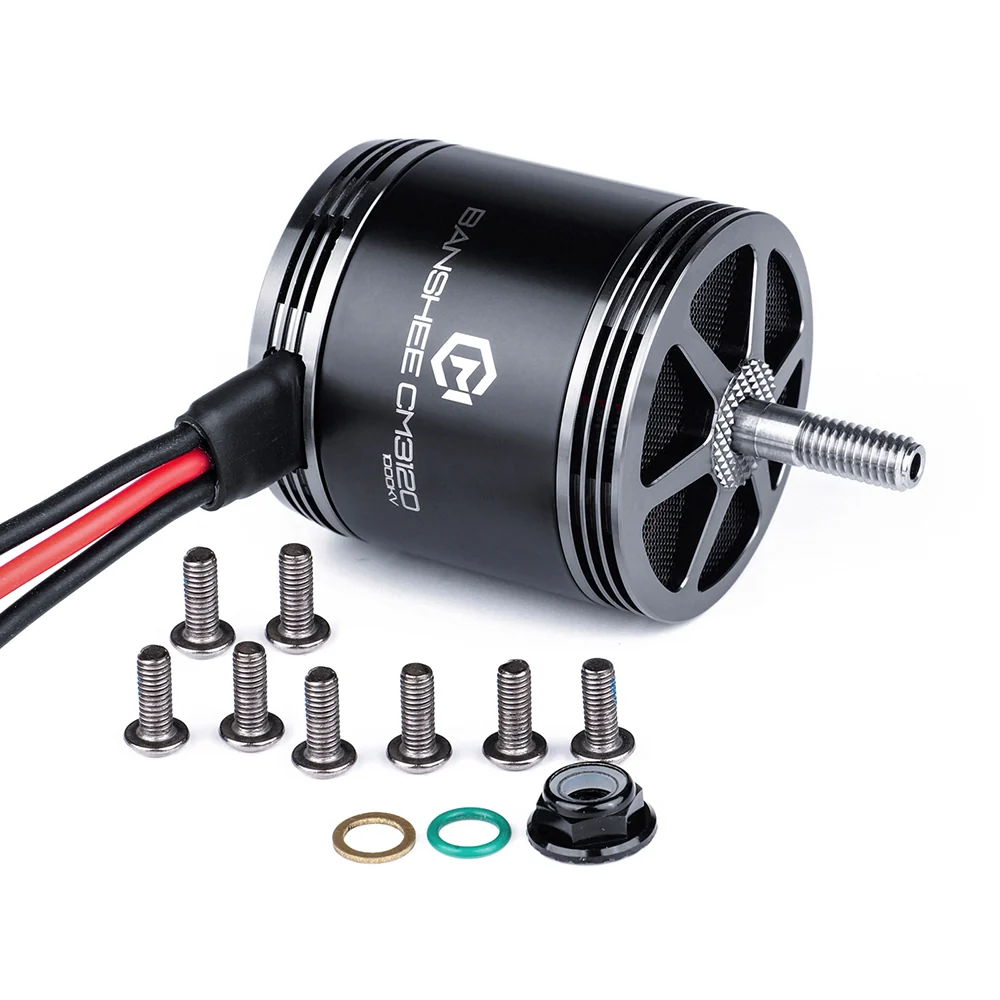

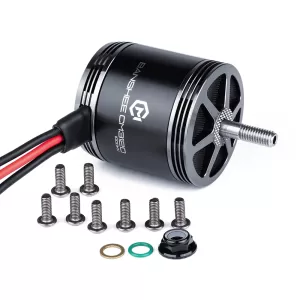

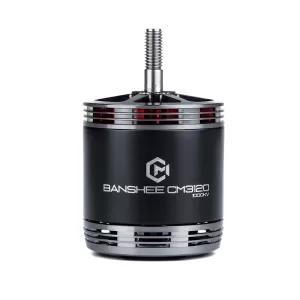

The MAD BANSHEE CM3120 KV500 is a brushless propulsion motor designed for larger FPV and cinematic UAV platforms. The 500KV version is intended for 12S LiPo systems and is suitable for applications using larger propellers where strong thrust and controlled motor speed are required The BANSHEE series uses internal dust-filtering and centrifugal heat-dissipation features, making this motor suitable for demanding FPV and aerial-filming applications. MAD specifically positions the CM3120 for 9–11 inch cinematic FPV platforms.
Features
- 500KV winding
- Designed for 12S LiPo battery systems
- Suitable for 9–11 inch cinematic FPV drones
- Designed for demanding aerial-filming applications
- Internal centrifugal cooling arrangement
- Dual stainless-steel dust filters inside the stator
- Split exhaust-blade design for heat dissipation
- IP45 protection
- High-temperature varnished windings
- Precision-balanced rotor and motor assembly
- Multiple bearings for smooth operation
- Suitable for larger-propeller FPV and multirotor platforms
- 300 mm silicone motor cable
Technical Specifications
| Specification | Details |
|---|---|
| Brand | MAD |
| Series | BANSHEE |
| Model | CM3120 V1.0 |
| KV Rating | 500KV |
| Recommended Battery | 12S LiPo |
| Motor Type | Brushless DC Motor |
| Pole Pairs | 7 |
| Motor Size | Ø37.1 × 59 mm |
| Motor Weight | Approx. 141 g |
| Maximum Current | 54.1A |
| Maximum Power | 2706W |
| Maximum Thrust | 6.1 kg |
| Maximum Torque | 1.0 Nm |
| No-Load Current | 1.2A @ 20V |
| Internal Resistance | 65 mΩ |
| Protection Rating | IP45 |
| Winding Temperature Rating | 220°C |
| Magnet Temperature Rating | 180°C |
| Shaft Diameter | 5 mm |
| Motor Mounting | Ø19 mm, M3 × 4 |
| Propeller Mounting | M5 Nut |
| Cable Length | 300 mm |
| Bearing | 685 × 3 |
| Insulation Test | 500V |
