Description
About this Item

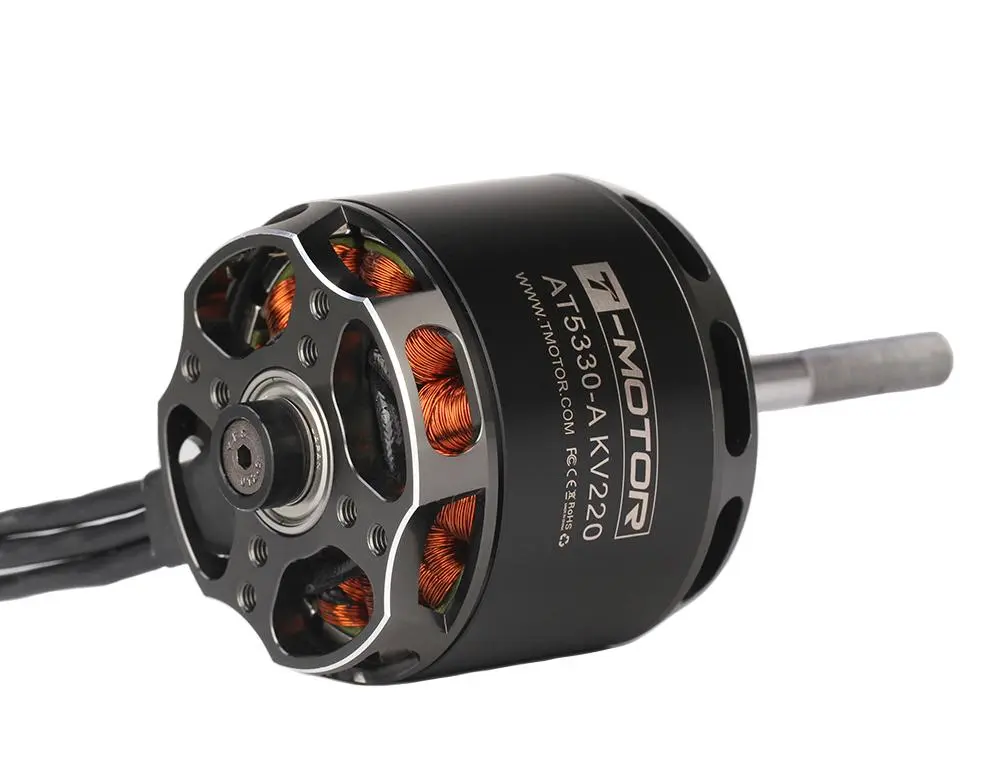

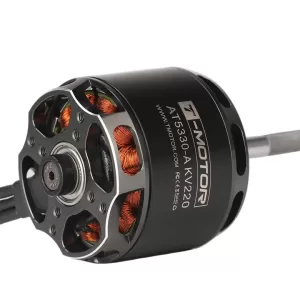

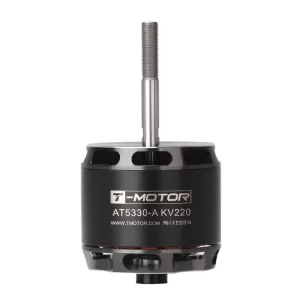

The T-Motor AT5330A KV220 is a high-performance brushless outrunner motor designed for VTOL aircraft, fixed-wing UAVs, and 25–30CC RC airplanes. Built for demanding aerial applications, it delivers high torque, efficient power conversion, and smooth throttle response for stable and reliable flight. Its robust construction, optimized cooling system, and shaft design make it suitable for long-endurance missions, heavy payload operations, and professional UAV platforms.
Features
- Designed for VTOL and fixed-wing UAV platforms
- High-performance brushless outrunner motor
- 220KV rating for high-torque applications
- Optimized cooling system for improved heat dissipation
- Smooth throttle response and stable power delivery
- Precision-balanced rotor for low vibration
- Durable aluminum alloy construction
- High-quality bearings for extended service life
- Supports long-duration and heavy-load flights
- Easy installation and maintenance
Specifications
| Specification | Details |
|---|---|
| Product Type | Brushless Outrunner Motor |
| Model | T-Motor AT5330A |
| KV Rating | 220KV |
| Motor Type | Brushless Outrunner |
| Battery Compatibility | 12S LiPo |
| Maximum Power | Up to 3600W |
| Peak Current | Up to 75A |
| Weight | Approx. 685g (including cables) |
| Protection Rating | IP35 |
| Shaft Diameter | 10mm (Input) / 8mm (Output) |
| Recommended Propeller | 18–20 Inch |
| Recommended ESC | T-Motor AT115A ESC |
| Applications | VTOL UAVs, Fixed-Wing Aircraft, 25–30CC RC Airplanes, Cargo UAVs, Mapping, Surveying, Inspection Drones |
