Description
About this Item

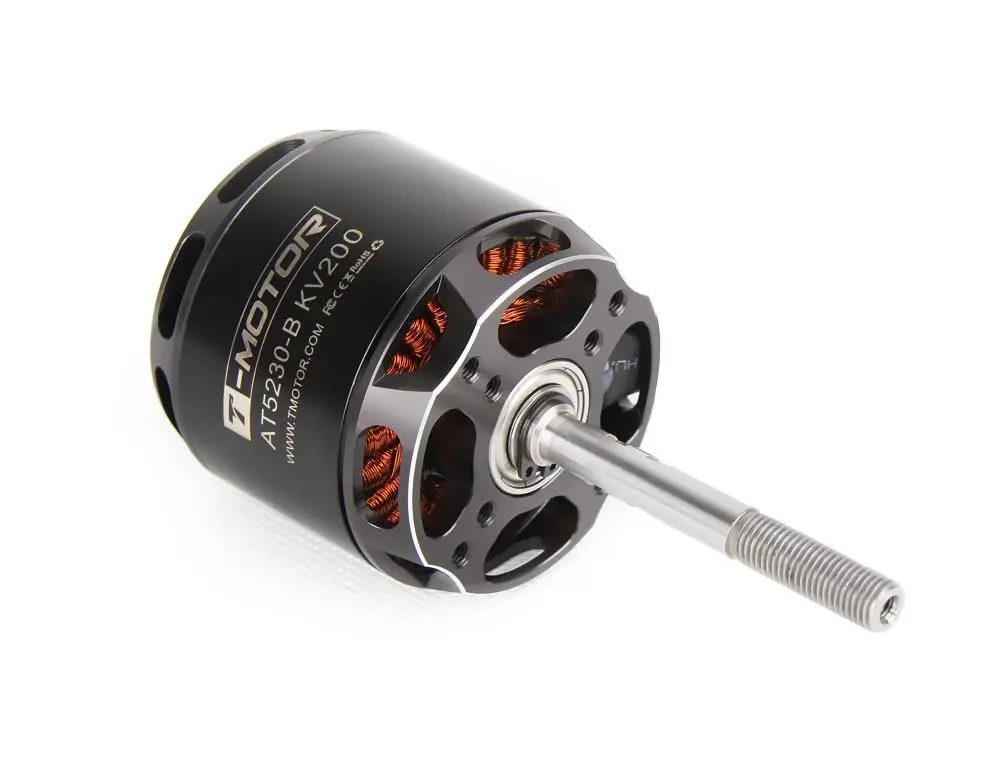

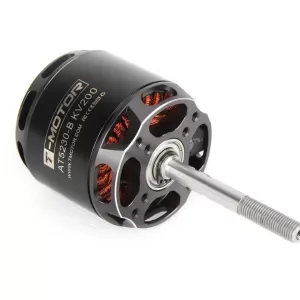

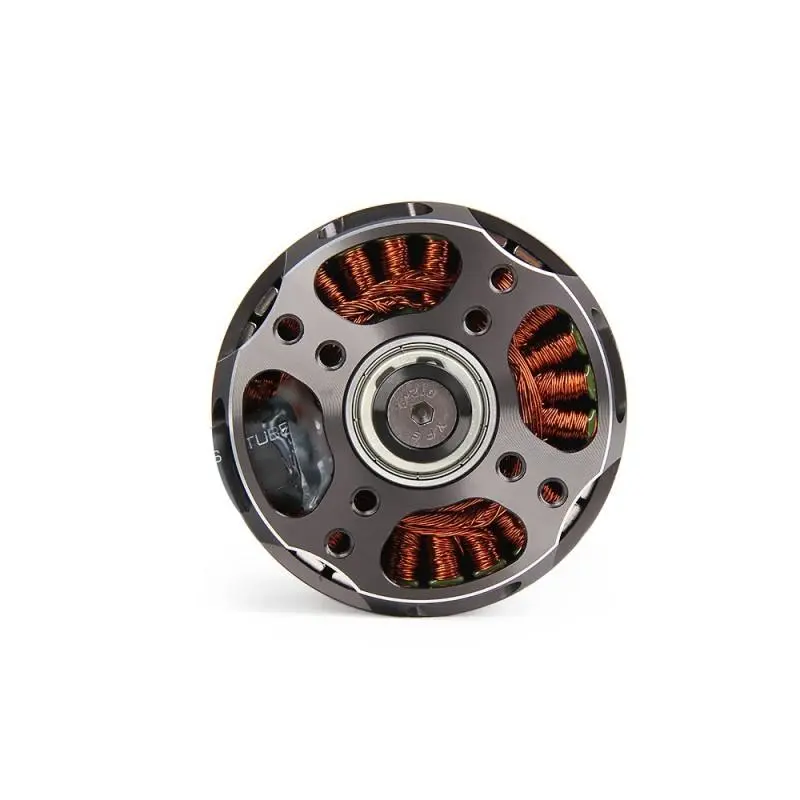

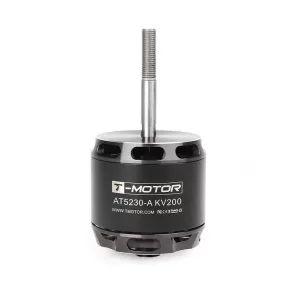

The T-Motor AT5230A 30CC VTOL Fixed Wing Long Shaft Motor KV200 is a premium brushless outrunner motor designed for VTOL aircraft, fixed-wing UAVs, and 25–30CC RC airplanes. Engineered for high-power aerial applications, it delivers exceptional torque, smooth throttle response, and efficient power output. The long shaft design provides flexible mounting options, while the advanced cooling structure ensures stable performance during long-duration and high-load flights.
Features
- Designed for VTOL and fixed-wing UAV platforms
- High-performance brushless outrunner motor
- Long shaft design for versatile installation
- Excellent torque and smooth throttle response
- Efficient heat dissipation for continuous operation
- Precision-balanced rotor for reduced vibration
- High-quality bearings for extended service life
- Strong aluminum alloy construction
- Supports heavy payload and long-endurance flights
- Suitable for industrial and commercial UAV applications
Specifications
| Specification | Details |
|---|---|
| Product Type | Brushless Outrunner Motor |
| Model | T-Motor AT5230A |
| KV Rating | 200KV |
| Motor Type | Brushless Outrunner |
| Battery Compatibility | 6S–12S LiPo |
| Maximum Power | Up to 3500W |
| Peak Current | Up to 75A |
| Weight | Approx. 610g (Including Cable) |
| Shaft Diameter | 10mm (Input) / 8mm (Output) |
| Motor Dimensions | Ø60 × 122.3mm |
| Recommended ESC | T-Motor AT115A ESC |
| Applications | VTOL UAVs, Fixed-Wing Aircraft, 25–30CC RC Airplanes, Cargo UAVs, Mapping & Inspection Drones |
