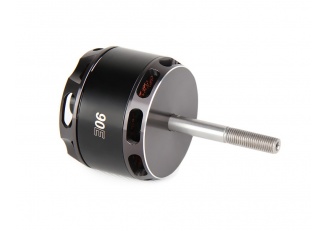

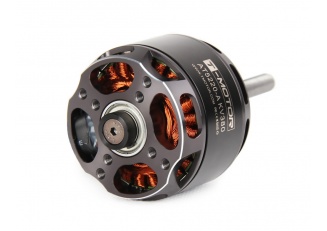

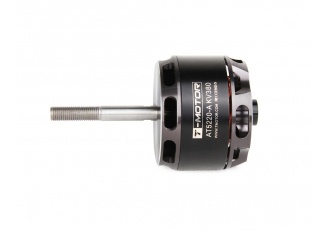

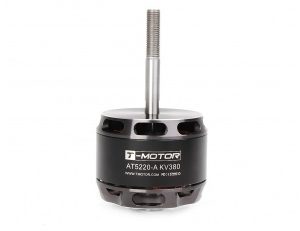

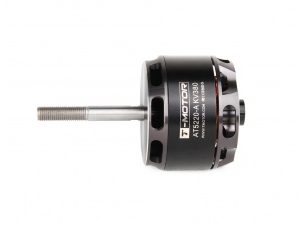

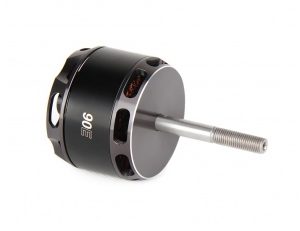

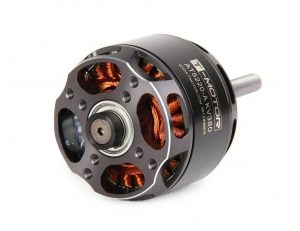

T Motor AT5220A 20–25CC VTOL Fixed Wing Shaft Motor KV220

₹13,750.00

The T-MOTOR AT5220A KV220 is a high-power brushless motor designed for VTOL and fixed-wing UAVs. It features a long-shaft configuration, 24N28P motor structure and 6–12S LiPo compatibility, making it suitable for large aircraft propulsion systems.

Out of stock

Request a quote for bulk quantity

Description

About the Product

The AT5220A belongs to T-MOTOR’s AT52 series, designed for aircraft in the 90E–140E class and approximately equivalent to a 20–25CC gasoline engine. Its shaft arrangement supports different installation configurations, making it useful for demanding UAV propulsion applications.

Key Features

  • 220KV brushless motor
  • Long-shaft configuration
  • 24N28P configuration
  • 6–12S LiPo operating range
  • 10 mm input / 8 mm output shaft
  • High-power design
  • High-quality bearing construction
  • Multiple mounting possibilities
  • Suitable for VTOL and fixed-wing aircraft
  • Maximum power up to 2700W
  • Peak current up to 70A for 180 seconds

Technical Specifications

Specification AT5220A KV220
Motor Type Brushless Outrunner
KV Rating 220KV
Configuration 24N28P
Motor Dimensions Φ60 × 112.3 mm
Shaft Diameter IN: 10 mm / OUT: 8 mm
Internal Resistance 36 mΩ
Weight incl. Cable 450 g
Lead 100 mm Enameled Wire
Rated Battery 6–12S LiPo
Idle Current @ 10V 1.8 A
Peak Current / 180s 70 A
Maximum Power / 180s 2700 W
