About Product

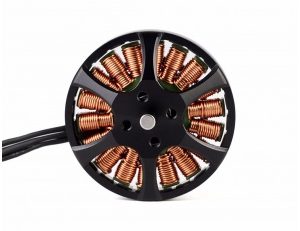

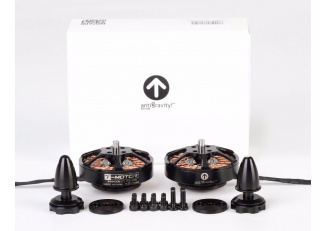

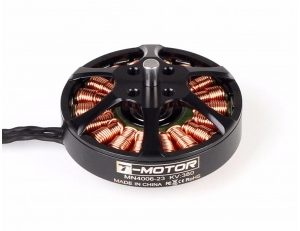

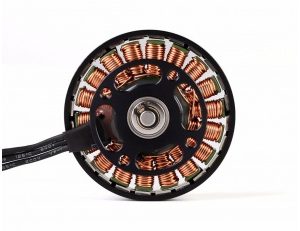

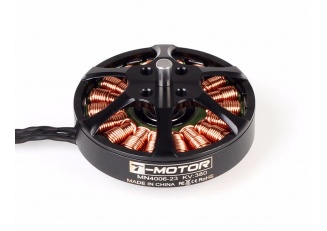

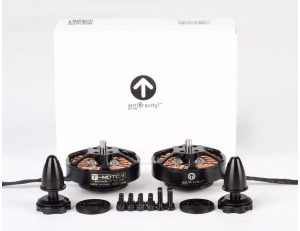

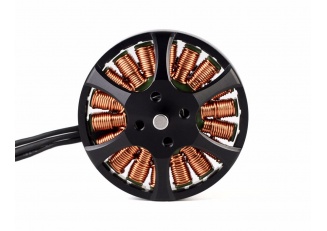

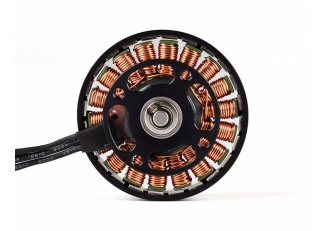

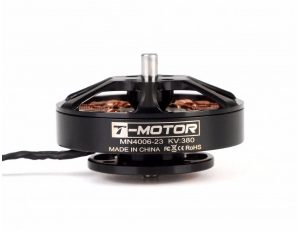

MN4006 KV380 is part of T-MOTOR’s Antigravity motor range. It uses an 18N24P configuration, a 40 mm stator and a 50 mm motor lead. The motor is supplied as a 2PCS/SET, making it suitable for paired or multi-motor UAV propulsion setups.
Key Features
- 380KV brushless motor
- Compatible with 4–6S LiPo
- Lightweight 68 g including cable
- 18N24P configuration
- 40 mm stator diameter
- Ventilation-oriented cooling design
- 50 mm lead length
- High-grade bearing construction
- Designed for multirotor and VTOL UAVs
- Supplied as 2PCS/SET
Technical Specifications
| Specification | Details |
|---|---|
| Brand | T-MOTOR |
| Model | MN4006 KV380 |
| Series | Antigravity |
| KV Rating | 380KV |
| Rated Voltage | 4–6S LiPo |
| Weight | 68 g including cable |
| Motor Dimensions | Ø44.35 × 21 mm |
| Stator Diameter | 40 mm |
| Shaft Diameter | 4 mm |
| Lead Length | 50 mm |
| Configuration | 18N24P |
| Internal Resistance | 194 mΩ |
| Idle Current @ 22V | 0.3 A |
| Peak Current | 16 A / 180 s |
| Maximum Power | 380 W / 180 s |
