Description
About This Product

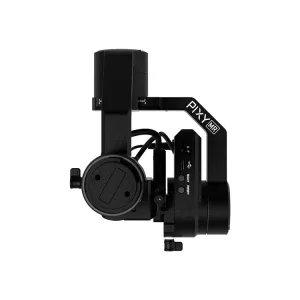

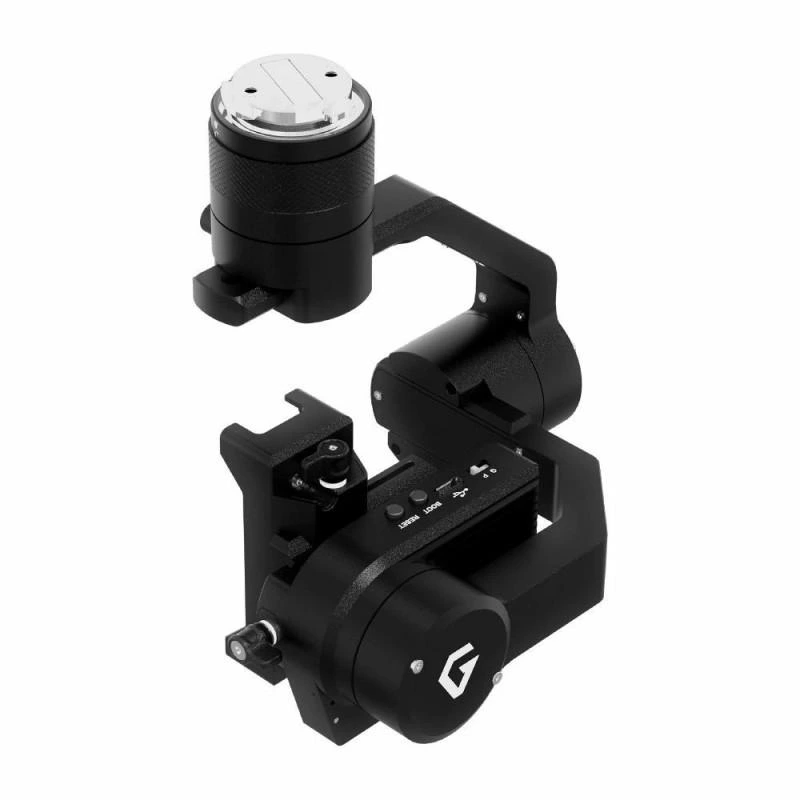

The Gremsy Pixy MR is a compact 3-axis camera gimbal developed for professional aerial mapping, surveying, and inspection. It is designed around the Sony ILX-LR1 full-frame camera and integrates directly with DJI M300/M350 RTK platforms through DJI Skyport. Its lightweight design provides a practical balance between payload size and imaging capability. The system allows operators to control camera settings and capture imagery through the DJI Pilot workflow, making it suitable for precise mapping and detailed inspection missions.
Features
- Designed specifically for Sony ILX-LR1
- 3-axis camera stabilization
- Plug-and-play DJI Skyport integration
- Compatible with DJI M300/M350 RTK
- Supports high-resolution full-frame imaging
- Supports multiple Sony lenses
- DJI Pilot integration for camera and mission control
- Lock, Follow and Mapping modes
- Lightweight aluminum construction
- Suitable for detailed inspection and mapping missions
- Supports HDMI/USB video output through the integrated system
Specifications
| Specification | Details |
|---|---|
| Product Type | 3-Axis Camera Gimbal |
| Model | Pixy MR |
| Supported Camera | Sony ILX-LR1 |
| Weight | 520 g |
| Dimensions | 157 × 108 × 167 mm |
| Construction | Aluminum |
| Quick Release | DJI Skyport V2.0 |
| Input Power | 13.7 V |
| Power Consumption | 5.5–55 W |
| Normal Power Consumption | 11 W |
| Communication | DJI Skyport V2, USB 2.0, UART |
| Operating Temperature | 0°C to 50°C |
| Angular Vibration | ±0.02° |
| Pan Control Range | +160° to −160° |
| Tilt Control Range | +135° to −45° |
| Roll Control Range | ±25° |
| Maximum Controlled Speed | 100°/s |
| Gimbal Modes | Lock, Follow, Mapping |
| Supported Drone | DJI M300/M350 RTK |
| Supported Controller | DJI RC Plus / RC Smart Controller |
| Software | DJI Pilot 2 |
| SDK | Sony Camera SDK, DJI Payload SDK |
