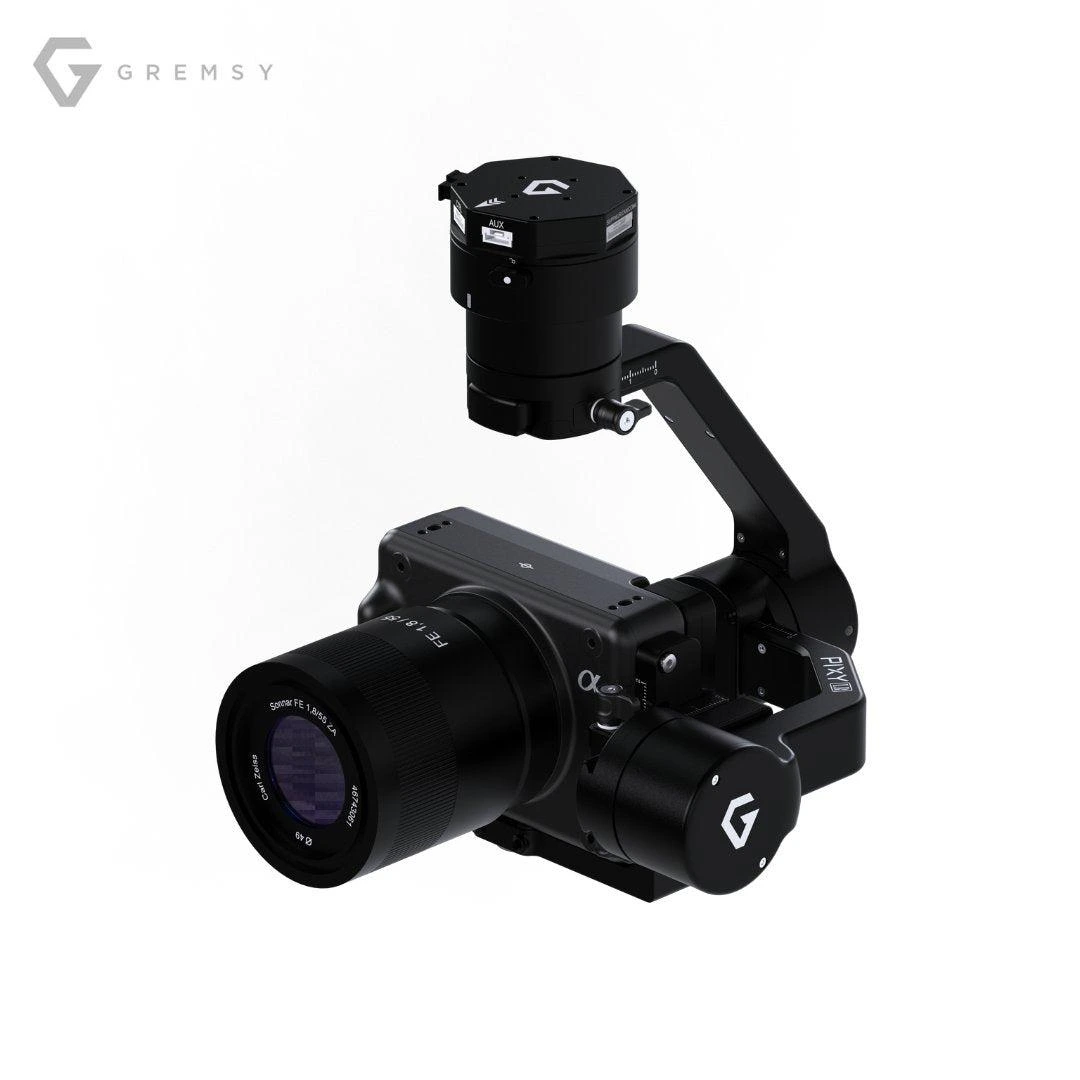

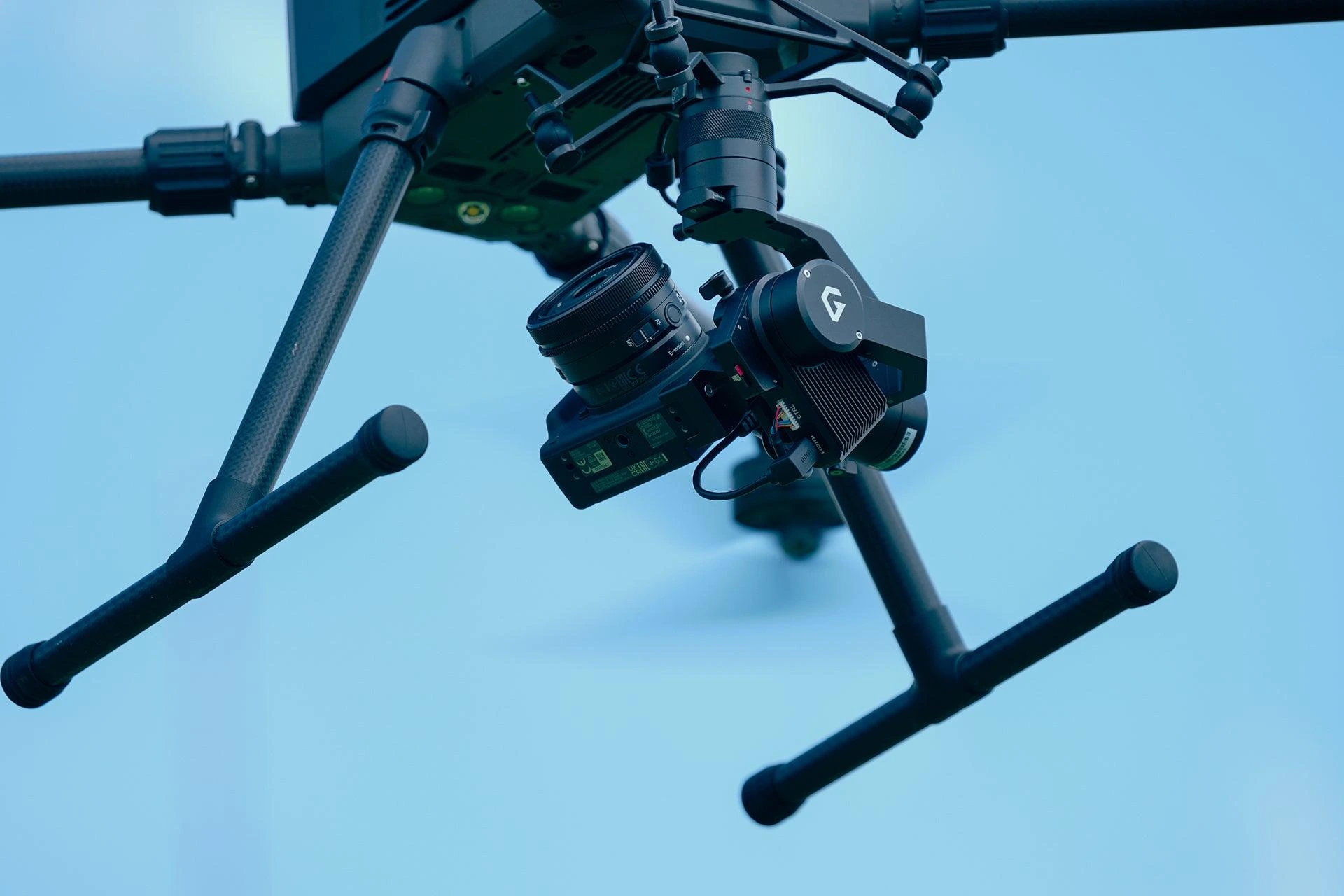

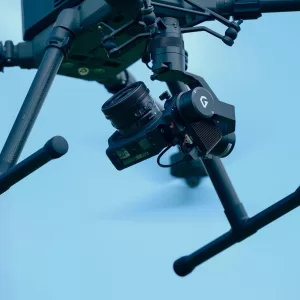

The Gremsy Pixy LR is a compact 3-axis camera gimbal designed specifically for the Sony ILX-LR1 camera. Its lightweight construction and precision stabilization make it suitable for aerial mapping, surveying, inspection, and other professional UAV missions where image quality and stable camera movement are important.
The gimbal combines a compact form factor with high-speed camera data connectivity and flexible control interfaces, allowing it to integrate with different professional drone platforms. Its modular design also provides additional connectivity for external devices such as LiDAR, laser rangefinders, and thermal cameras.
Features
- Designed specifically for Sony ILX-LR1
- 3-axis camera stabilization
- Lightweight and compact construction
- Supports multiple Sony lenses up to 85mm
- USB-C 3.0 connectivity for high-speed camera data transfer
- MAVLink support for UAV integration
- Multiple control interfaces
- Compatible with Pixhawk, CubePilot and Skynode platforms
- Follow, Lock and Mapping modes
- 4-signal AUX interface for additional payload integration
- Quick-release mounting system
- Suitable for professional aerial imaging applications
Specifications
| Specification | Details |
|---|---|
| Product Type | 3-Axis Camera Stabilizer |
| Model | Pixy LR |
| Supported Camera | Sony ILX-LR1 |
| Construction | Aluminum |
| Gimbal Weight | 495 g |
| Dimensions | 140 × 115 × 200 mm |
| Input Power | 17–52 V DC |
| Operating Temperature | 0°C to 50°C |
| Angular Vibration | ±0.02° |
| Pan Controlled Range | ±320° |
| Tilt Controlled Range | +40° to -120° |
| Roll Controlled Range | ±40° |
| Maximum Controlled Speed | 180°/s |
| Connections | Micro USB, USB-C 3.0, CAN, UART, SBus, Micro HDMI |
| Camera Data | Sony USB to USB-C 3.0 |
| Gimbal Control | UART, CAN, SBus, PPM |
| Supported Platforms | Pixhawk, CubePilot, Skynode, M600, Airpeak |
| Autopilot | ArduPilot, PX4 |
| Gimbal Modes | Lock, Follow, Mapping |
| Quick Release | Hyper Quick Release 3.0 |
| Mounting | Bottom |
