Description
About This Product

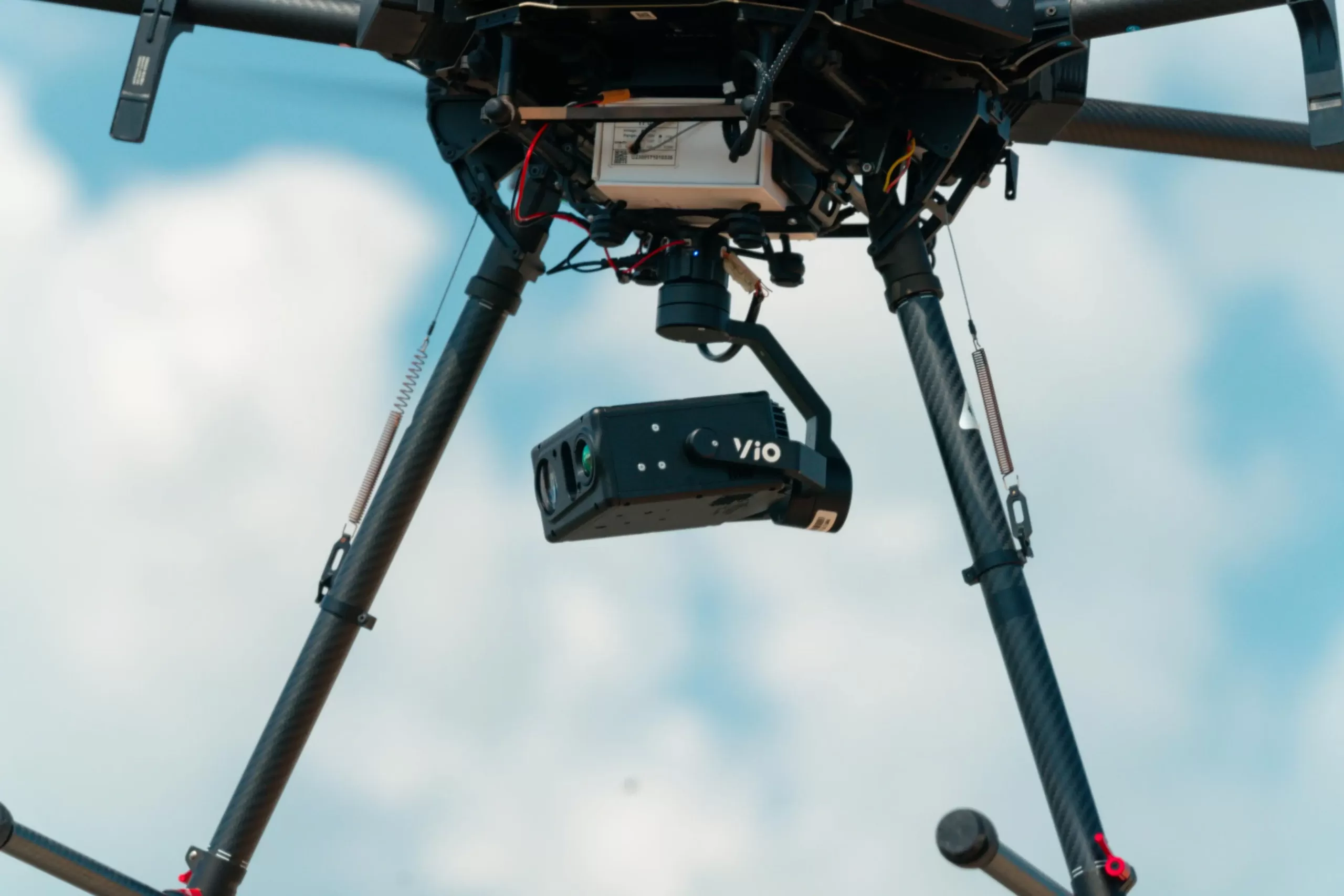

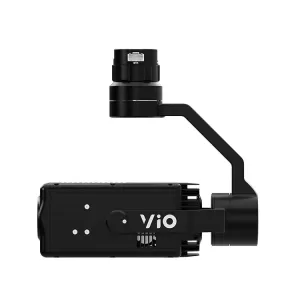

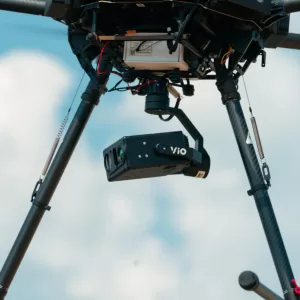

The Gremsy VIO F1 is a professional EO/IR payload engineered for UAV missions that demand high-quality visible imaging, thermal observation, and accurate distance measurement in a single compact unit. Combining a stabilized 3-axis gimbal with a powerful zoom camera, radiometric thermal sensor, and integrated laser rangefinder, it enables drone operators to collect detailed aerial data in both daylight and low-visibility conditions. Its lightweight construction and seamless integration with professional flight controllers make it an ideal choice for industrial inspection, public safety, surveying, and security operations. This description is written in original wording and is not copied from any website.
Features
- Compact all-in-one EO/IR payload
- Precision 3-axis image stabilization
- High-resolution 4K visible camera
- Radiometric thermal imaging for accurate temperature monitoring
- Integrated laser rangefinder for precise distance measurement
- AI-assisted object detection and target tracking
- Smooth video capture with minimal vibration
- Compatible with professional UAV flight controllers
- Rugged design for industrial field operations
- Easy integration with commercial drone platforms
Specifications
| Specification | Details |
|---|---|
| Product Type | EO/IR UAV Payload |
| Model | VIO F1 |
| Gimbal Stabilization | 3-Axis |
| Payload Weight | 854 g |
| Dimensions | 173 × 148 × 159 mm |
| EO Camera | 8.51 MP Sony CMOS |
| Video Resolution | 4K UHD (3840 × 2160 @ 30 fps) |
| Optical Zoom | 20× |
| Digital Zoom | 12× |
| Super Resolution Zoom | 30× |
| Maximum Combined Zoom | 240× |
| Thermal Sensor | FLIR Boson 640 Radiometric |
| Thermal Resolution | 640 × 512 |
| Thermal Frame Rate | 60 Hz |
| Thermal Sensitivity | ≤ 50 mK |
| Laser Rangefinder | Up to 2400 m |
| Input Voltage | 14.5–52 V DC |
| Video Output | HDMI, RTSP |
| Communication | UART, Ethernet, SBUS |
| Compatible Autopilot | PX4, ArduPilot |
| Compatible Flight Controllers | Pixhawk, CubePilot, Skynode |
| Storage | microSD Card (up to 128 GB) |
| Operating Temperature | -10°C to +50°C |
