Description
About This Product

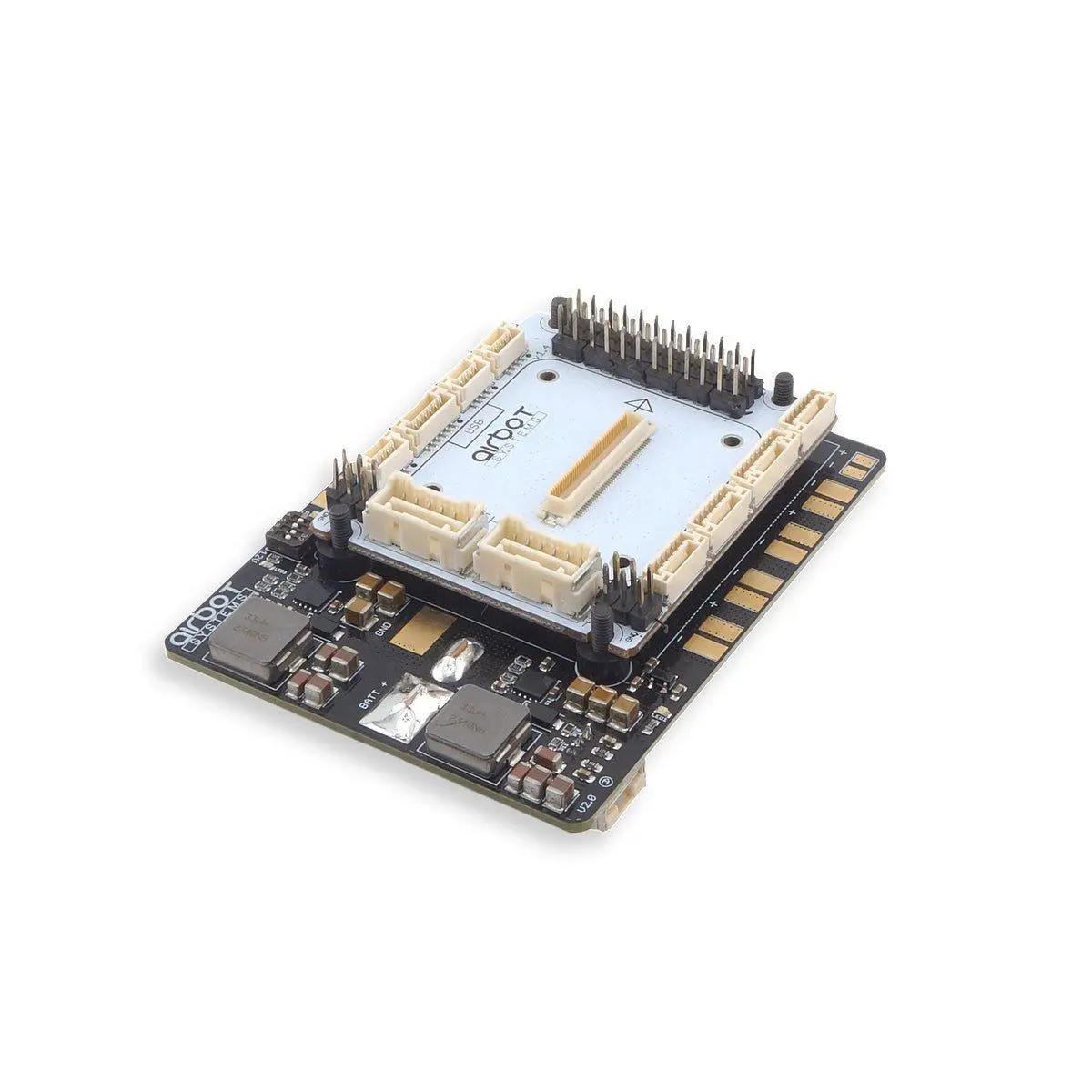

The Airbot Mini Carrier Board & PDB Combo is a compact integration solution for UAVs using a Pixhawk Cube flight controller. It combines the Mini Carrier Board with a dedicated Mini Power Distribution Board, allowing the autopilot, motor-control connections and main power distribution to be arranged in a compact stacked configuration.
Features
- Designed for integrating a Pixhawk Cube into UAV platforms
- Compact carrier-board design for space-constrained drone builds
- Integrated Power Selection Module (PSM)
- Dual power inputs for redundant Cube power supply
- Automatic changeover to the secondary power source if the primary supply fails
- Provides connectivity for multiple Cube interfaces
- Supports PWM signal distribution for up to 8 motors
- Mini PDB supports up to 180A total current
- Provides power connections for up to 8 ESCs
- Includes additional low-power accessory power pads

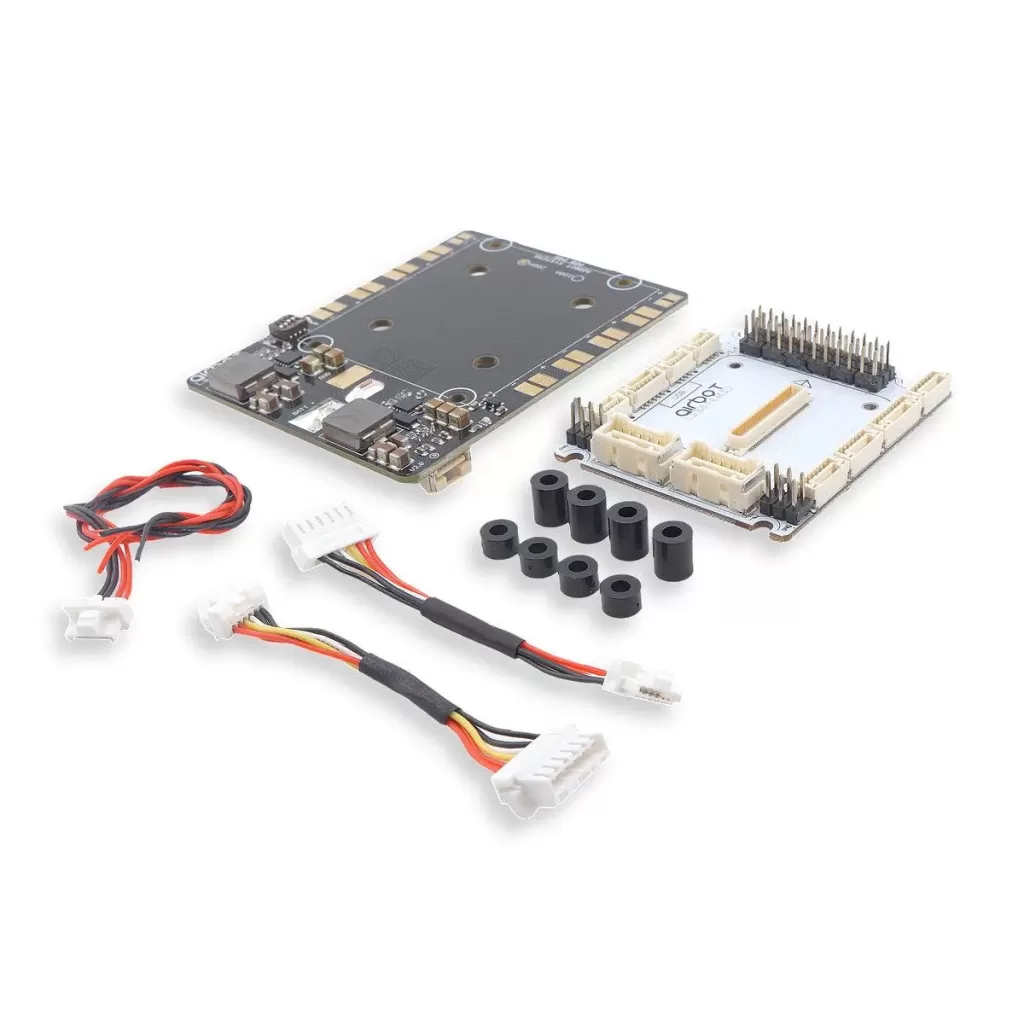

- Carrier board and PDB can be stacked together
- Nylon spacers maintain separation between the two boards
- Helps reduce wiring complexity inside the UAV
- Suitable for compact multirotor and professional UAV platforms
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Airbot Systems |
| Product Type | Mini Carrier Board + PDB Combo |
| Carrier Board Version | V1.4 |
| Flight Controller Compatibility | Pixhawk Cube family |
| Power Selection Module | Included |
| Power Inputs | 2 |
| Motor PWM Distribution | Up to 8 motors |
| PDB Maximum Current | 180A |
| ESC Connections | Up to 8 |
| Accessory Power Pads | 4 pairs |
| Carrier Board Dimensions | 50.5 × 57.5 mm |
| Carrier Board Weight | 19 g |
| Mini PDB Dimensions | 60.5 × 69 mm |
| Mini PDB Weight | 21 g |
| Carrier + PDB Weight | Approx. 40 g, excluding mounting hardware |
| Mounting | Stacked installation using nylon spacers |
| Application | UAV / Multirotor / Drone |
