Description
About This Product

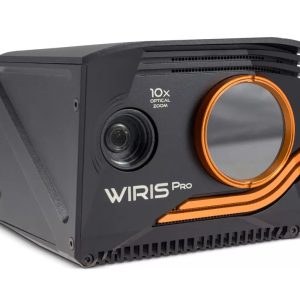

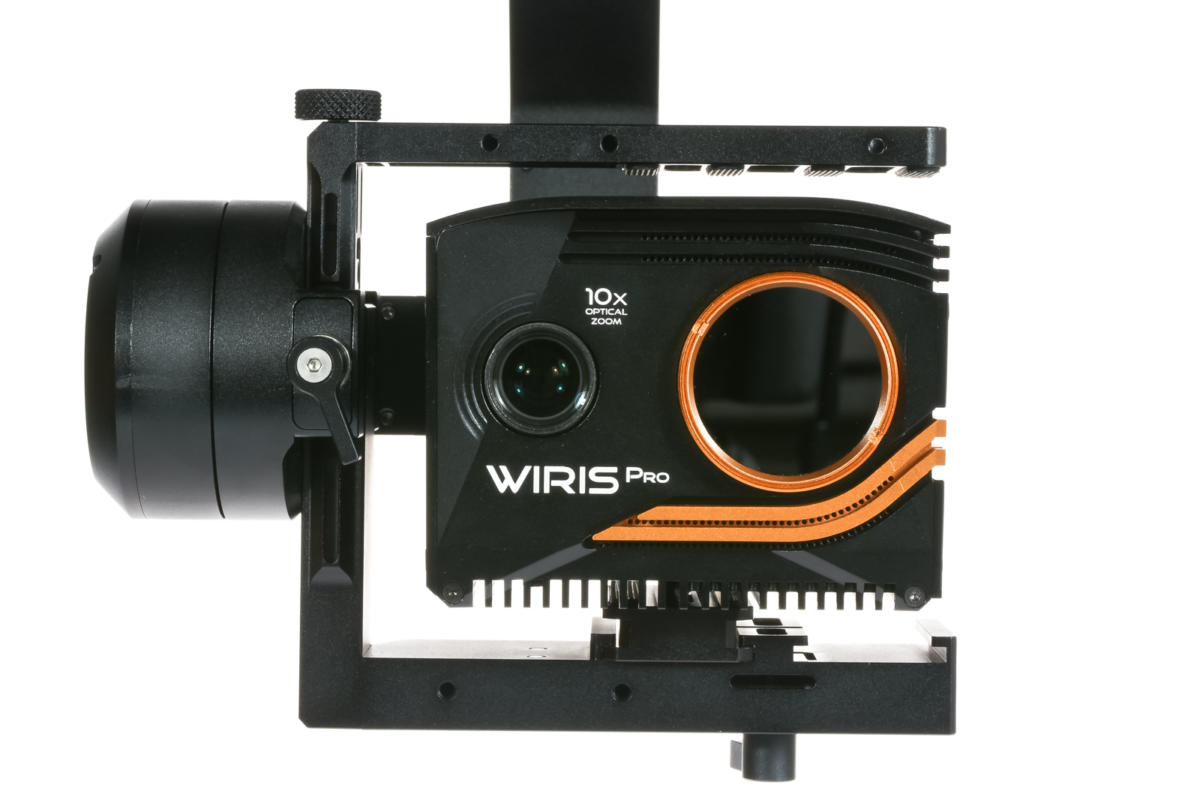

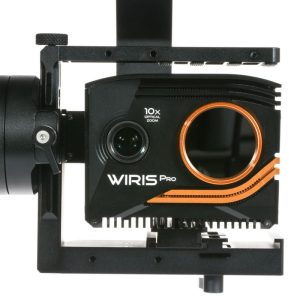

The Workswell WIRIS Pro is a professional thermal imaging payload designed for drone-based inspection and measurement. It combines radiometric long-wave infrared imaging with a Full HD visual camera, allowing operators to collect temperature information along with a clear visual reference of the inspected area. Its compact UAV-oriented design, interchangeable calibrated thermal lenses and onboard processing make it suitable for missions where thermal measurements need to be captured directly from the air.
Features
- Radiometric thermal imaging for temperature measurement
- 640 × 512 native infrared resolution
- Super Resolution output up to 1266 × 1010 pixels
- Full HD visual camera
- 10× optical zoom with vibration compensation
- Multiple interchangeable calibrated thermal lenses
- WIRIS OS for onboard camera operation
- In-flight camera control

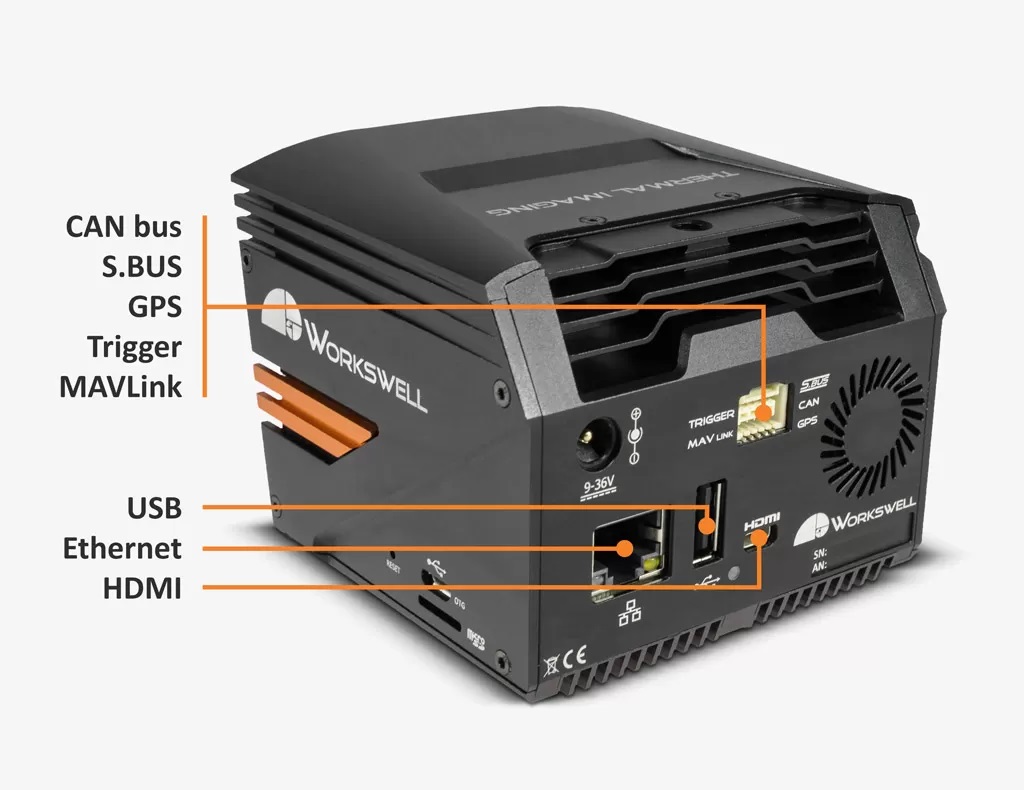

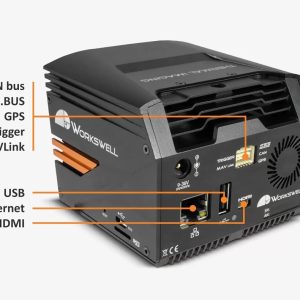

- Supports S.Bus, CAN bus, MAVLink and trigger interfaces
- Optional Ethernet connectivity
- Internal high-speed SSD storage
- Radiometric image and video recording
- Designed specifically for UAV integration
- Suitable for industrial and environmental inspection missions
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Workswell |
| Model | WIRIS Pro |
| Payload Type | Radiometric Thermal + RGB Camera |
| Thermal Sensor | Uncooled VOx Microbolometer |
| IR Resolution | 640 × 512 pixels |
| Super Resolution | 1266 × 1010 pixels |
| Spectral Range | 7.5 – 13.5 µm |
| Standard Thermal Sensitivity | 50 mK |
| Optional Thermal Sensitivity | 30 mK |
| Thermal Frame Rate | 30 Hz or <9 Hz |
| Thermal Lens Options | 18°, 32°, 45°, 69° |
| Lens Type | Interchangeable, calibrated |
| RGB Resolution | 1920 × 1080 Full HD |
| RGB Optical Zoom | 10× |
| RGB FOV | Approx. 6.9° – 58.2° |
| RGB Focus | Autofocus |
| Internal Storage | 128 GB or 256 GB SSD |
| Control Interfaces | S.Bus, CAN Bus, MAVLink, Trigger |
| Ethernet | Optional on standard WIRIS Pro |
| Operating System | WIRIS OS |
| Temperature Measurement | Available across configurable temperature ranges |
| Maximum Configurable Temperature | Up to 1500°C with applicable configuration |
| Application | UAV Inspection, Thermal Surveying, Agriculture, Archaeology |
