About This Product

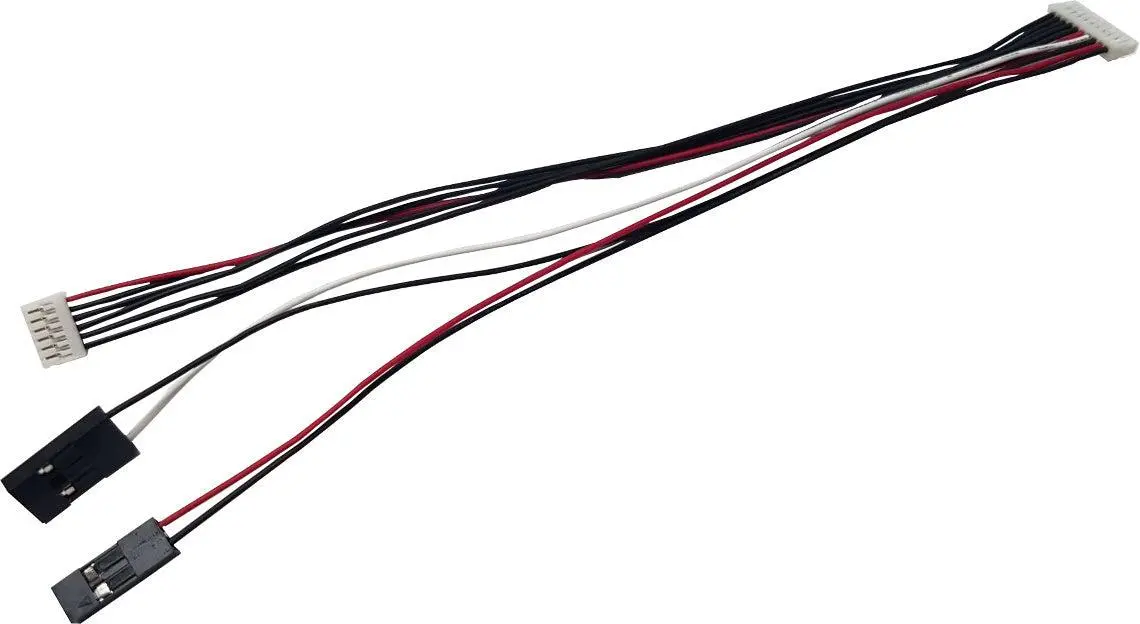

The RFD900ux Multi Cable 150mm is an interface and breakout cable designed for RFD900ux and RFD868ux telemetry modems. It converts the modem’s 10-pin connection into separate connections for a Pixhawk/Cube-standard TELEM port, external power and RC signal, making integration with a flight-control system simpler. The 150mm cable is intended for UAV installations where the modem needs to be connected to the flight controller while also providing separate access to external power and RC/PPM signal connections. RFDesign also offers this cable in a 300mm version.
Features
- Designed for RFD900ux and RFD868ux modems
- 150mm cable length
- Converts the modem’s 10-pin interface into three connection groups
- Pixhawk/Cube-standard TELEM connection
- Separate 2-pin external power connection
- Separate 3-pin RC signal connection
- JST-GH connector for the TELEM interface
- 2.54mm DuPont-style sockets for power and RC connections
- Simplifies modem-to-flight-controller installation
- Suitable for UAV and drone telemetry systems
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Multi / Breakout Cable |
| Brand | RFDesign (RFD) |
| Model / SKU | CABLE-R9UX-MULTI-150 |
| Cable Length | 150mm |
| Compatible Modems | RFD900ux / RFD868ux |
| Modem Interface | 10-pin connector |
| Flight Controller Connector | JST-GH series |
| Flight Controller Compatibility | Pixhawk / Cube-standard carrier board |
| External Power Connector | 2-pin DuPont-style socket |
| Power Connector Pitch | 0.1″ / 2.54mm |
| RC Signal Connector | 3-pin DuPont-style socket |
| RC Connector Pitch | 0.1″ / 2.54mm |
| Weight | Approx. 4g |
| Application | UAV Telemetry / Flight Controller Integration |
Applications
- RFD900ux telemetry systems
- RFD868ux telemetry systems
- Pixhawk flight controllers
- Cube-standard carrier boards
- UAV and drone integration
- External modem power connections
- RC/PPM signal integration
