Description
About This Product

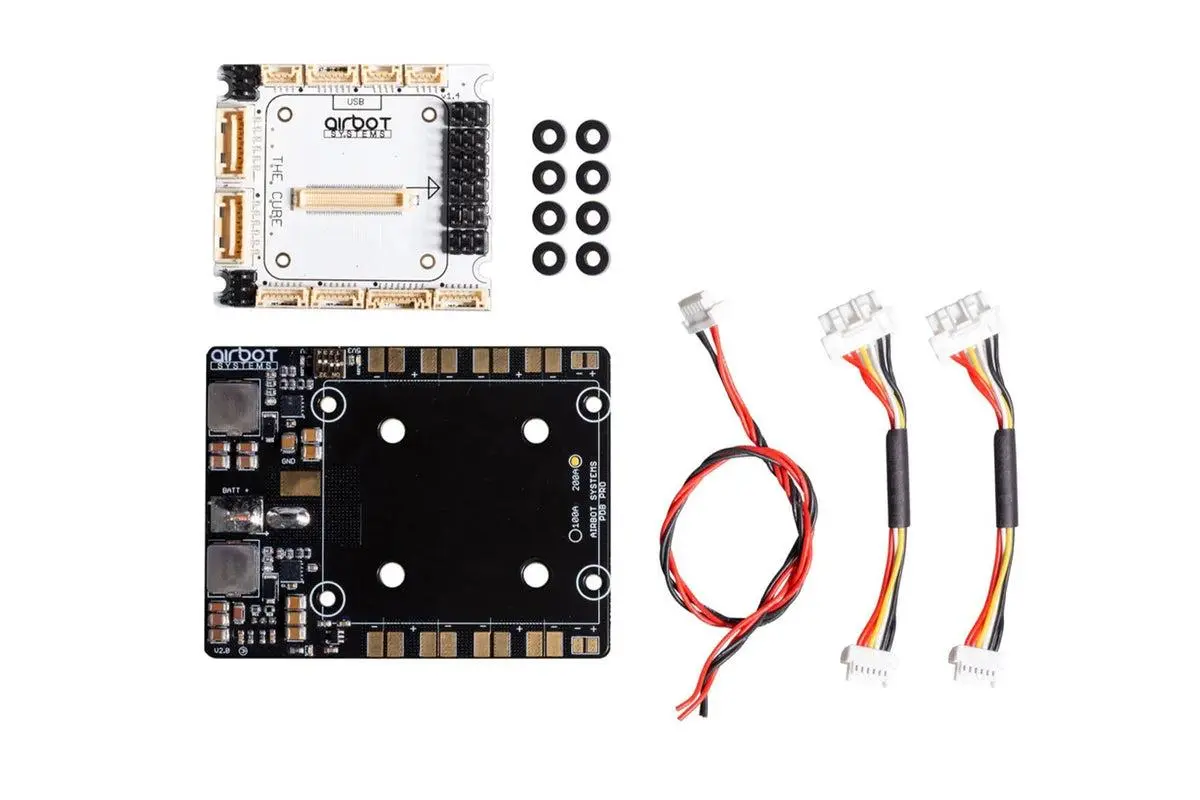

The Airbot Mini Carrier Board PRO v2 – Full Set 200A is a compact carrier and power-distribution solution designed for UAVs built around a Cube autopilot. It combines the Mini Carrier Board with the Mini PDB PRO v2 – 200A, bringing flight-controller connectivity, high-current power distribution, regulated power conversion, and electrical monitoring into one integrated setup.
Features
- Designed for Cube autopilot integration
- Compatible with the Pixhawk Cube ecosystem
- Includes Mini Carrier Board Version 1.4
- Includes Mini PDB PRO v2 – 200A
- Combines signal connectivity and power distribution in a compact assembly
- Integrated voltage and current sensing
- Two independent power-conversion circuits
- First power supply provides 5.3V output
- Second power supply can provide 5.3V or 12V
- Each power supply supports up to 3A output
- Supports input voltage up to 50.4V / 12S
- Compact stacked installation
- Helps reduce wiring and save space inside the UAV
- Includes dedicated Cube power cables
- Includes accessory power connection
- Suitable for multirotor and other UAV platforms
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Airbot Systems |
| Product Type | Carrier Board + Power Distribution Board |
| Version | Mini Carrier Board PRO v2 |
| PDB Version | Mini PDB PRO v2 – 200A |
| Carrier Board Version | 1.4 |
| PDB Maximum Current | 200A |
| Carrier Board Dimensions | 50.5 × 57.5 mm |
| Carrier Board Weight | 19 g |
| PDB Dimensions | 65.5 × 85 mm |
| PDB Weight | 44 g |
| Power Supply 1 | 5.3V / 3A max |
| Power Supply 2 | 5.3V or 12V / 3A max |
| Maximum Input Voltage | 50.4V / 12S |
| Current Sensor | Integrated |
| Voltage Sensor | Integrated |
| Total Set Weight | Approx. 68 g |
| Flight Controller Compatibility | Cube / Pixhawk Cube ecosystem |
| Application | UAV / Drone / Multirotor |
