About This Product

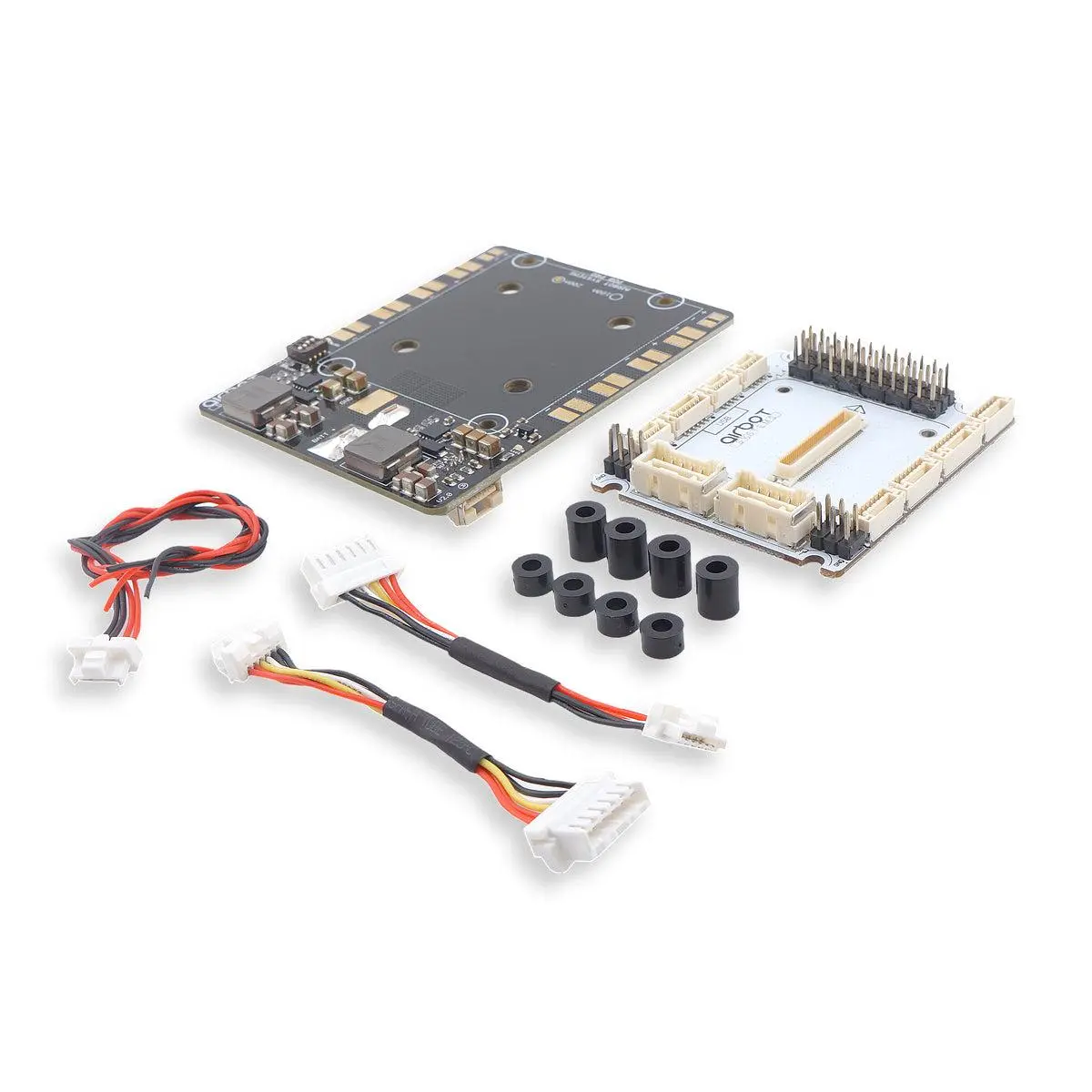

The Airbot Mini Carrier Board PRO – 100A is a compact carrier and power-management solution designed for integrating a Cube autopilot into UAV platforms. It combines the Mini Carrier Board with a dedicated 100A Mini PDB PRO, reducing the need for separate power-management and signal-distribution boards.
Features
- Designed for Cube autopilot / Pixhawk Cube ecosystem
- Integrated 100A Mini PDB PRO
- Compact carrier-board architecture
- Combines signal distribution and power distribution in one system
- Integrated voltage sensing
- Integrated current sensing up to 100A
- Two independent regulated power supplies
- 5.3V regulated output for flight-controller power
- Supports battery systems up to 12S
- Up to 8 motor PWM outputs
- Dual power inputs on the carrier board
- GPS1 and GPS2 connectivity
- I²C and CAN interfaces
- Multiple serial communication ports
- RC input support
- Compact design helps reduce installation space and wiring
- Suitable for multirotor, VTOL and other UAV platforms
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Airbot Systems |
| Product Type | Carrier Board + Power Distribution Board |
| Version | Mini Carrier Board V1.4 + Mini PDB PRO |
| PDB Current Rating | 100A |
| Carrier Board Dimensions | 50.5 × 57.5 mm |
| Carrier Board Weight | 19 g |
| PDB Dimensions | 65.5 × 85 mm |
| PDB Weight | 44 g |
| Power Supply 1 | 5.3V / 3A max |
| Power Supply 2 | 5.3V / 3A max |
| Maximum Input Voltage | 50.4V / 12S |
| Current Sensing | Up to 100A |
| Voltage Sensing | Up to 12S |
| Motor PWM Outputs | Up to 8 |
| Flight Controller Compatibility | Cube / Pixhawk Cube ecosystem |
| Total Set Weight | Approx. 68 g |
| Application | UAV / Drone / Multirotor / VTOL |
