About This Product

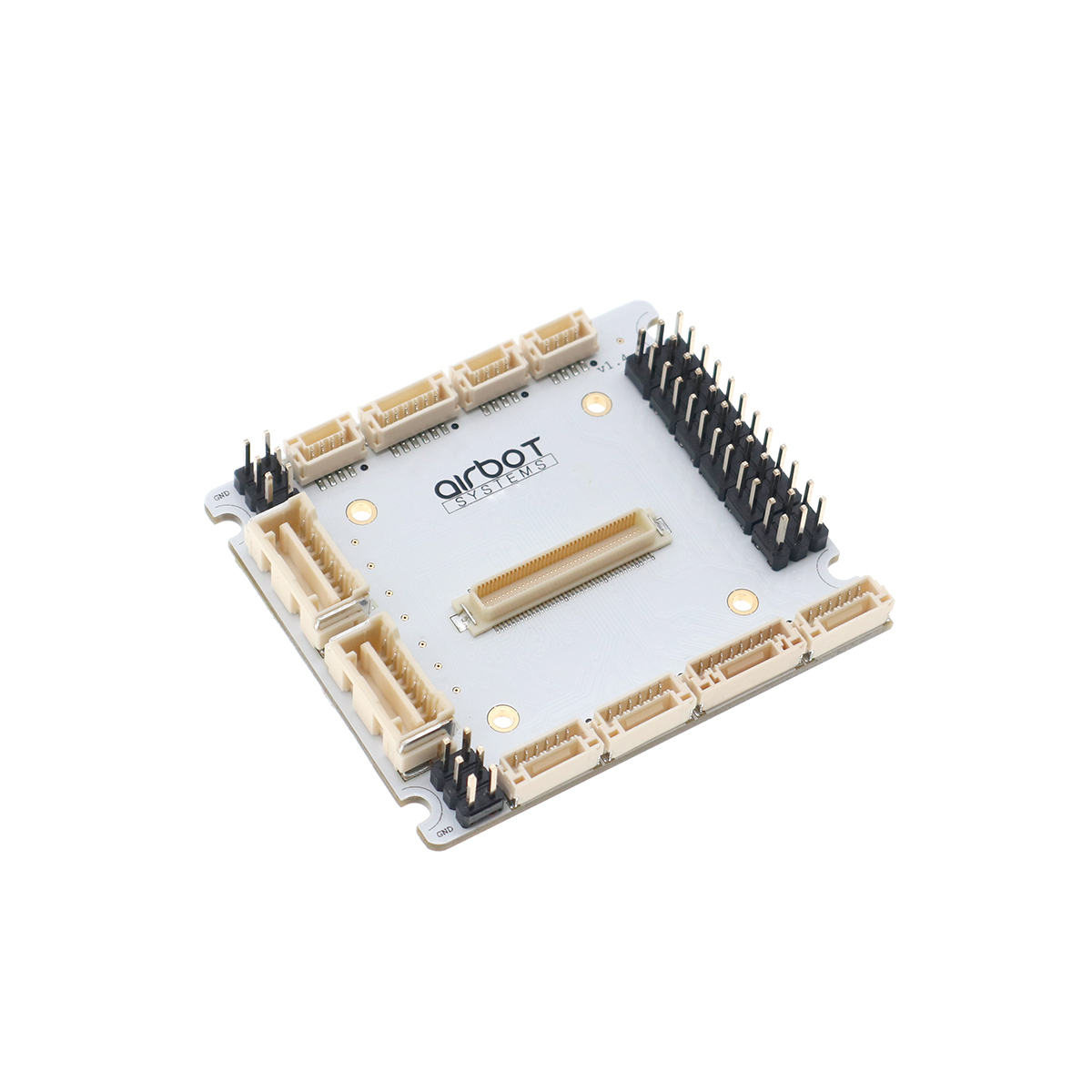

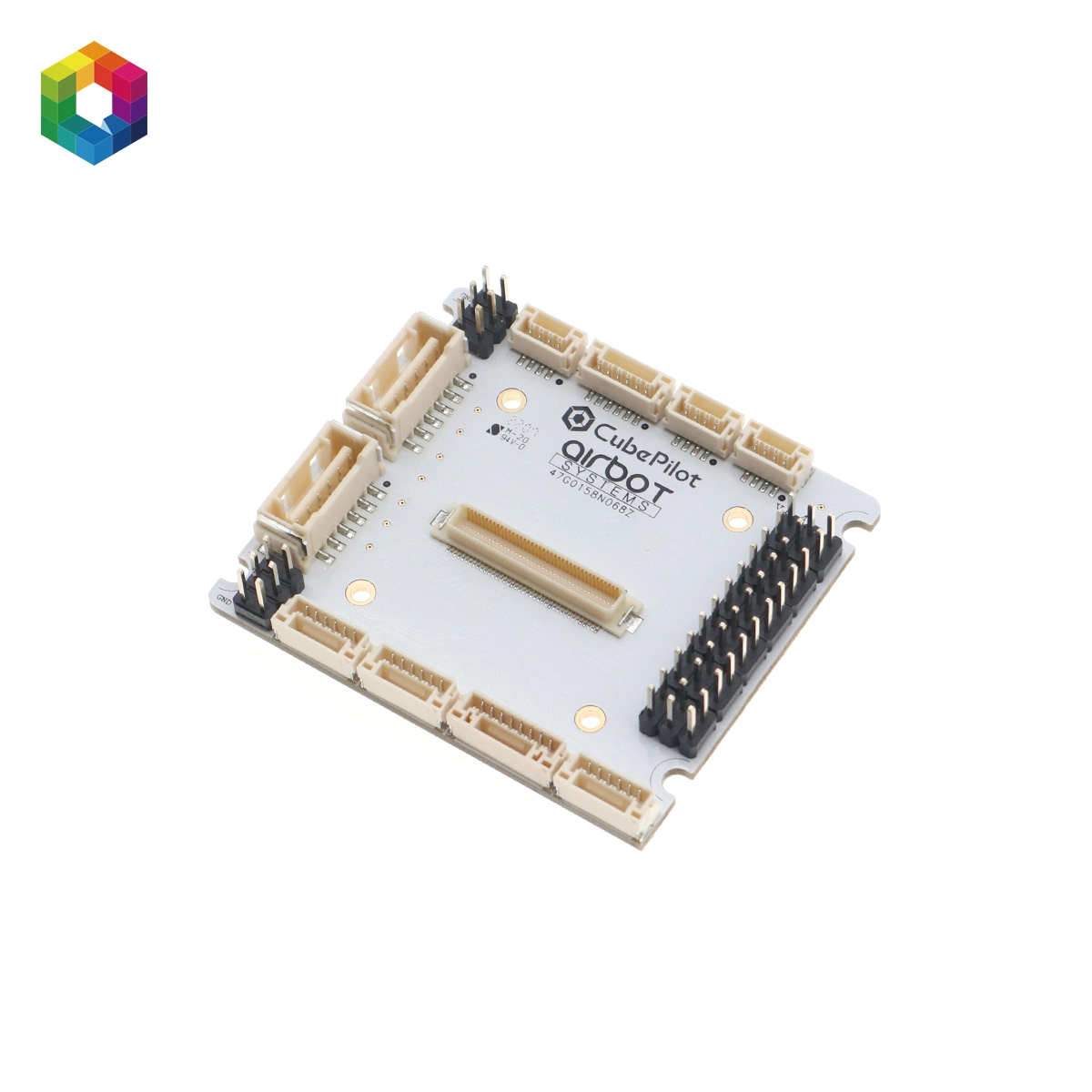

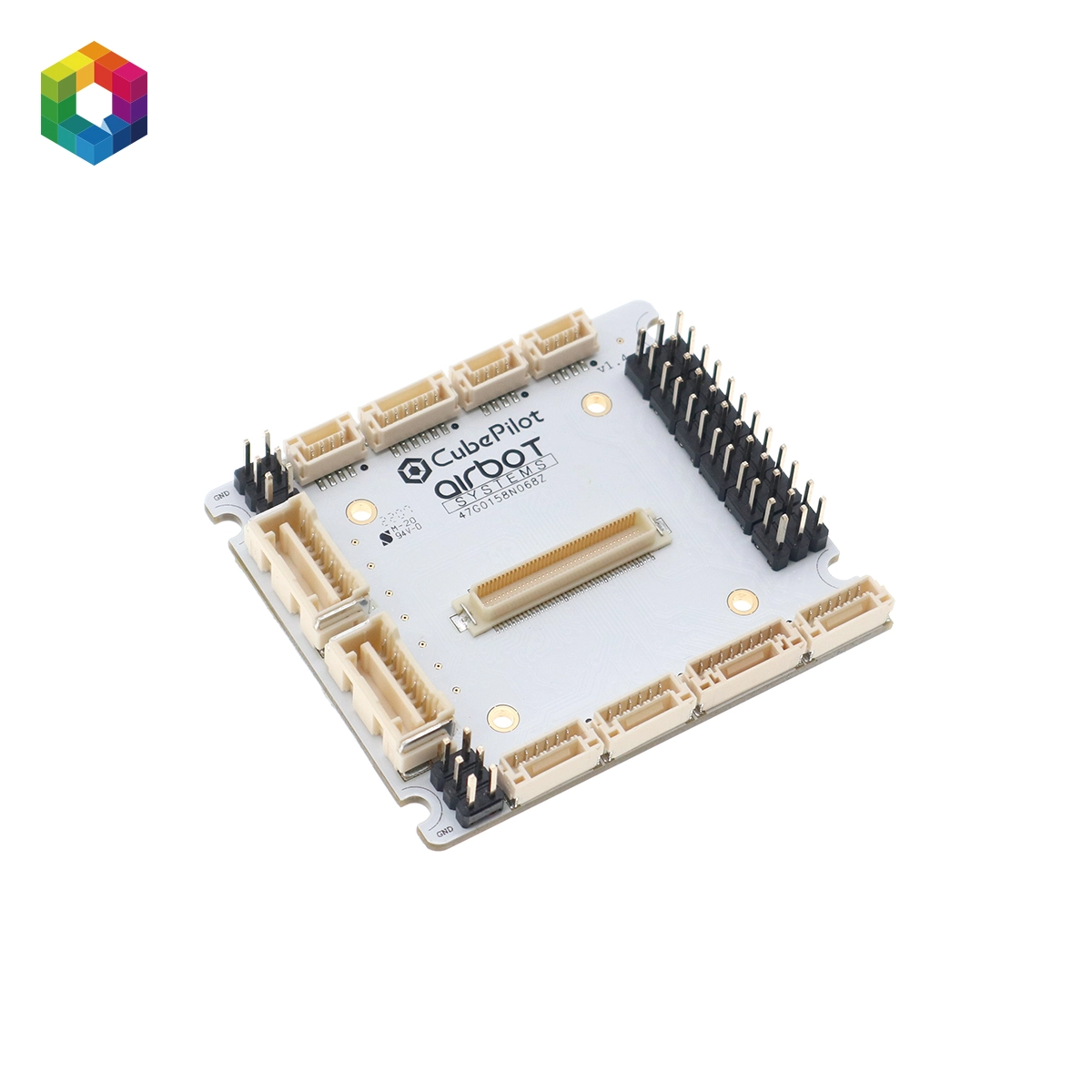

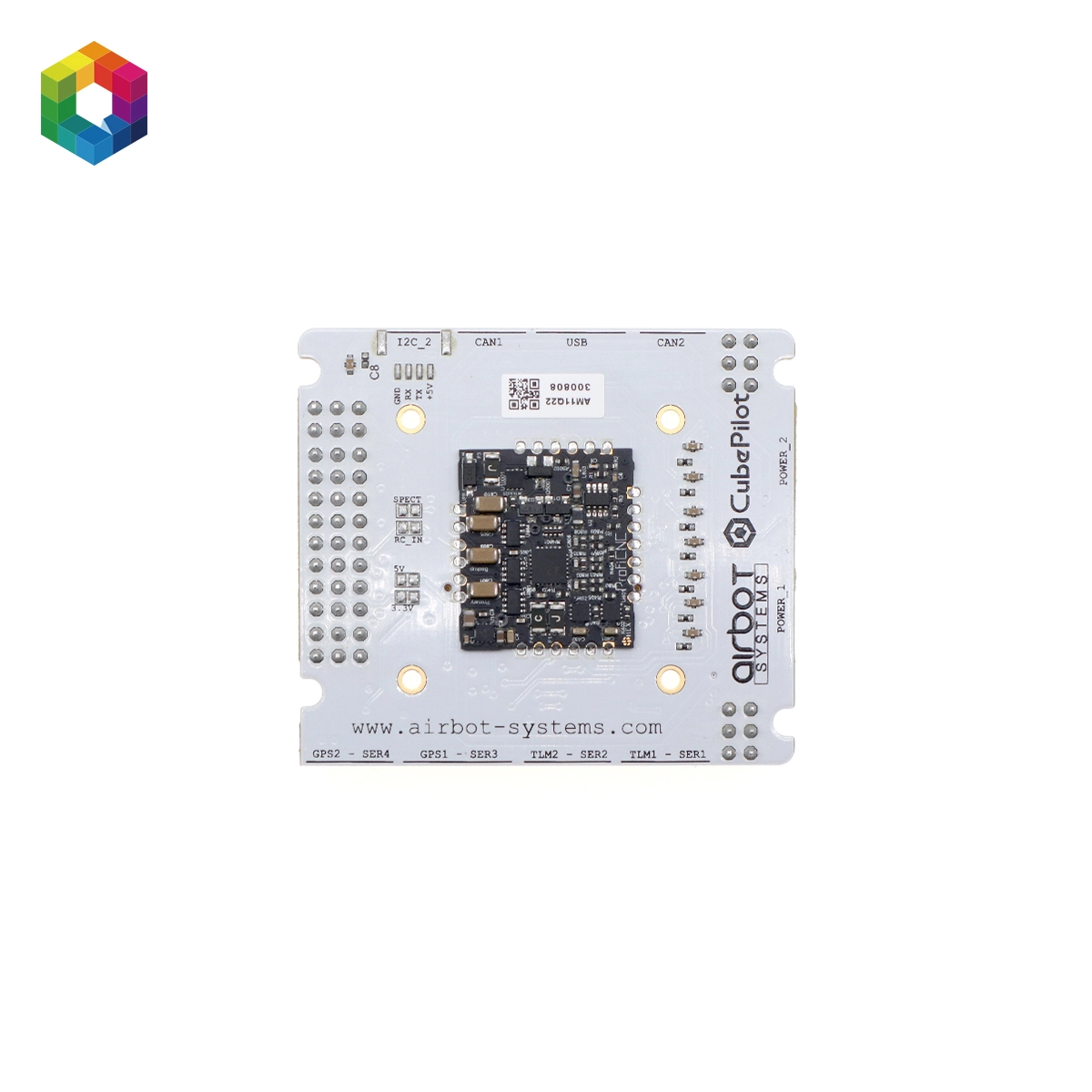

Airbot Mini Carrier Board Set ek compact carrier board solution hai jo Cube/Pixhawk 2.1 autopilot ko UAV/drone frame mein install karne ke liye designed hai. Iska compact 50.5 × 57.5 mm form factor wiring aur installation space ko reduce karta hai, while providing important connections for power, RC, GPS, serial communication, I2C, CAN and motor PWM signals.
Key Features
- Designed for Cube / Pixhawk 2.1 autopilot
- Integrated Power Selection Module (PSM)
- Dual redundant power inputs
- Automatic switching to the secondary power source
- GPS1 and GPS2 connectivity
- I2C and CAN interfaces
- Serial ports 1–5
- PPM/S.Bus/Spectrum RC input
- PWM signal distribution for up to 8 motors
- Compact design for space-constrained UAVs
- Compatible with the Cube family of autopilots
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Airbot Systems |
| Product | Mini Carrier Board |
| Version | V1.4 |
| Compatibility | Cube / Pixhawk 2.1 |
| Dimensions | 50.5 × 57.5 mm |
| Height with Cube | 24.65 mm |
| Weight | 19 g |
| Power Inputs | 2 |
| Motor PWM Distribution | Up to 8 motors |
| RC Input | PPM / S.Bus / Spectrum |
| Interfaces | I2C / CAN / Serial |
| GPS | GPS1 + GPS2 |
| Power Input Range | 5–5.7 V |
