Description
About This Product
The Airbot Systems Power Supply is a compact switching power module designed to provide regulated power for UAV electronics, drones, robots, scale models and other electronic systems. It accepts high-voltage battery input of up to 50.4V (12S) and allows the required output voltage to be selected between 5V, 5.3V and 12V.
Features
- Compact switching power-supply design
- Supports input voltage up to 50.4V / 12S
- Selectable output voltage: 5V, 5.3V or 12V
- Provides up to 3A continuous output
- Can handle short-duration current peaks of up to 4A
- Suitable for UAV and drone electronics
- Can be mounted directly in a stacked configuration

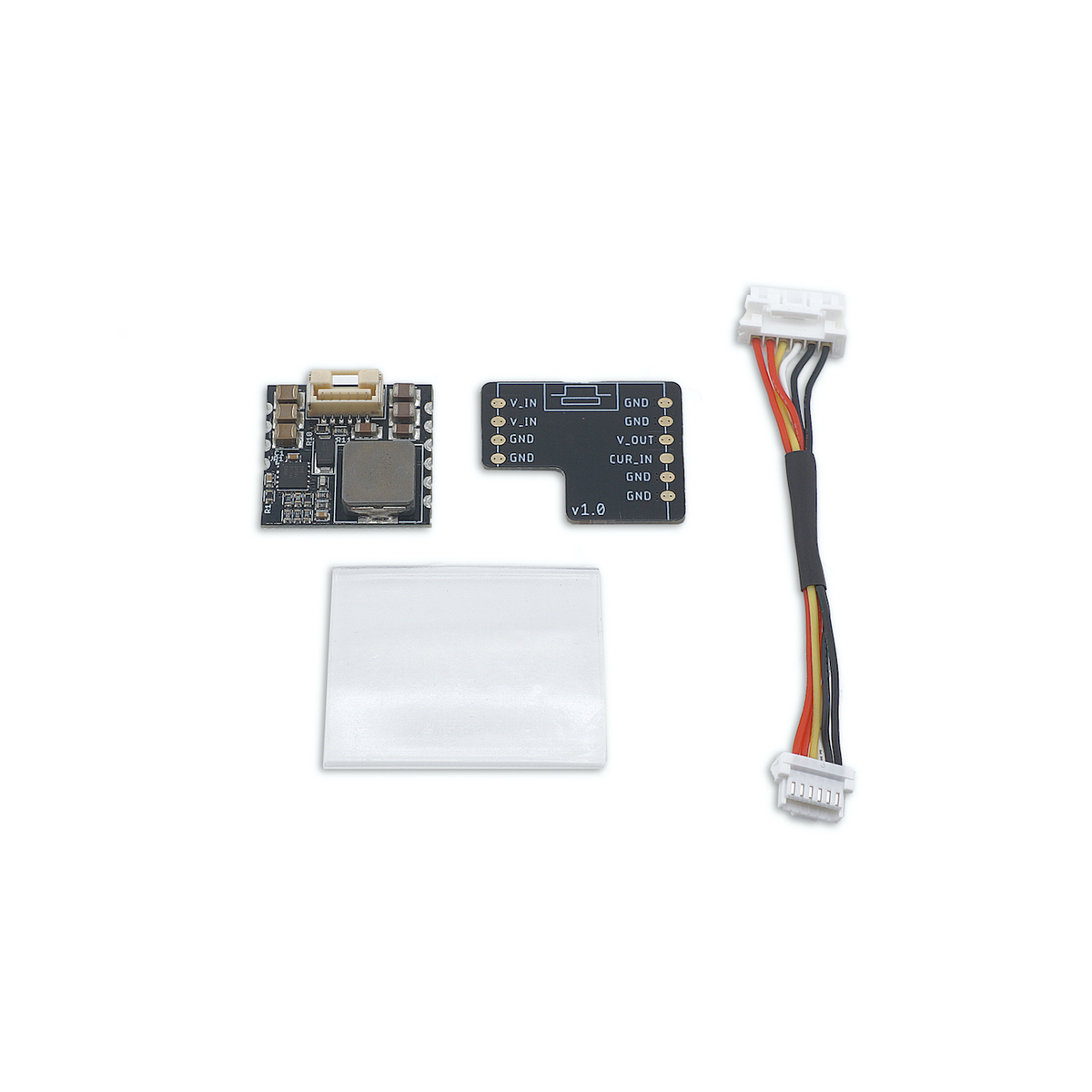

- Supplied with an additional PCB for wired installation
- Integrated voltage-divider circuit for input-voltage measurement
- Small footprint for space-constrained installations
- Suitable for robots, scale models and other electronic projects
- Flexible mounting options depending on system design
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Airbot Systems |
| Product Type | Switching Power Supply / BEC |
| Input Voltage | Up to 50.4V |
| Battery Compatibility | Up to 12S |
| Selectable Output Voltage | 5V / 5.3V / 12V |
| Continuous Output Current | 3A |
| Peak Current | Up to 4A, momentary |
| Input Voltage Monitoring | Integrated voltage-divider circuit |
| Power Module Dimensions | 24 × 23 × 6.15 mm |
| Module + Auxiliary PCB Dimensions | 29 × 23 × 6.15 mm |
| Mounting Options | Stack or wired |
| Application | UAV / Drone / Robot / Electronic Systems |
