Description

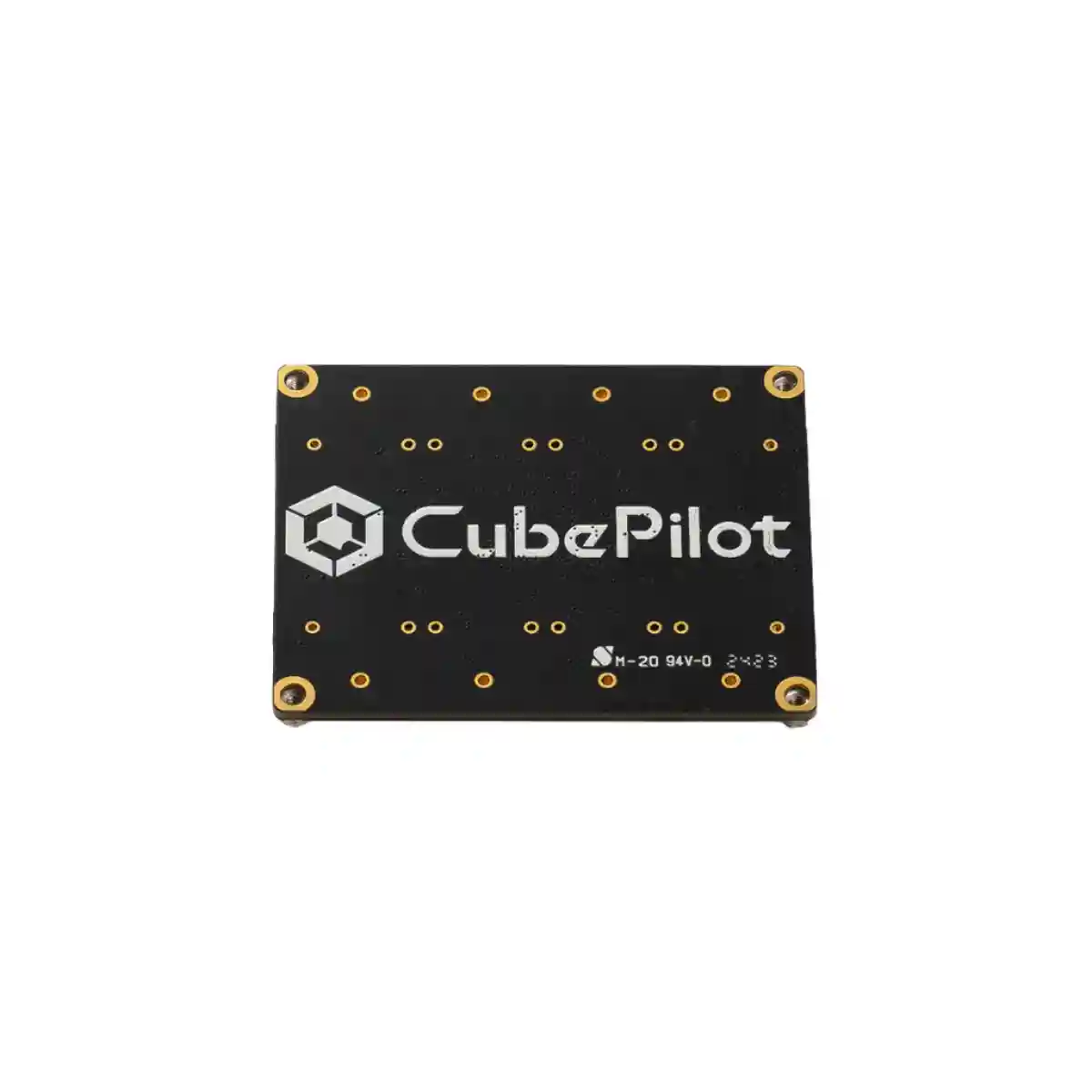

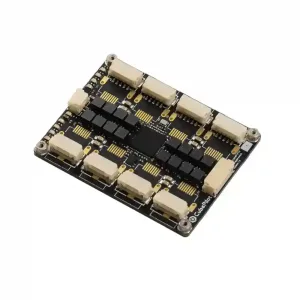

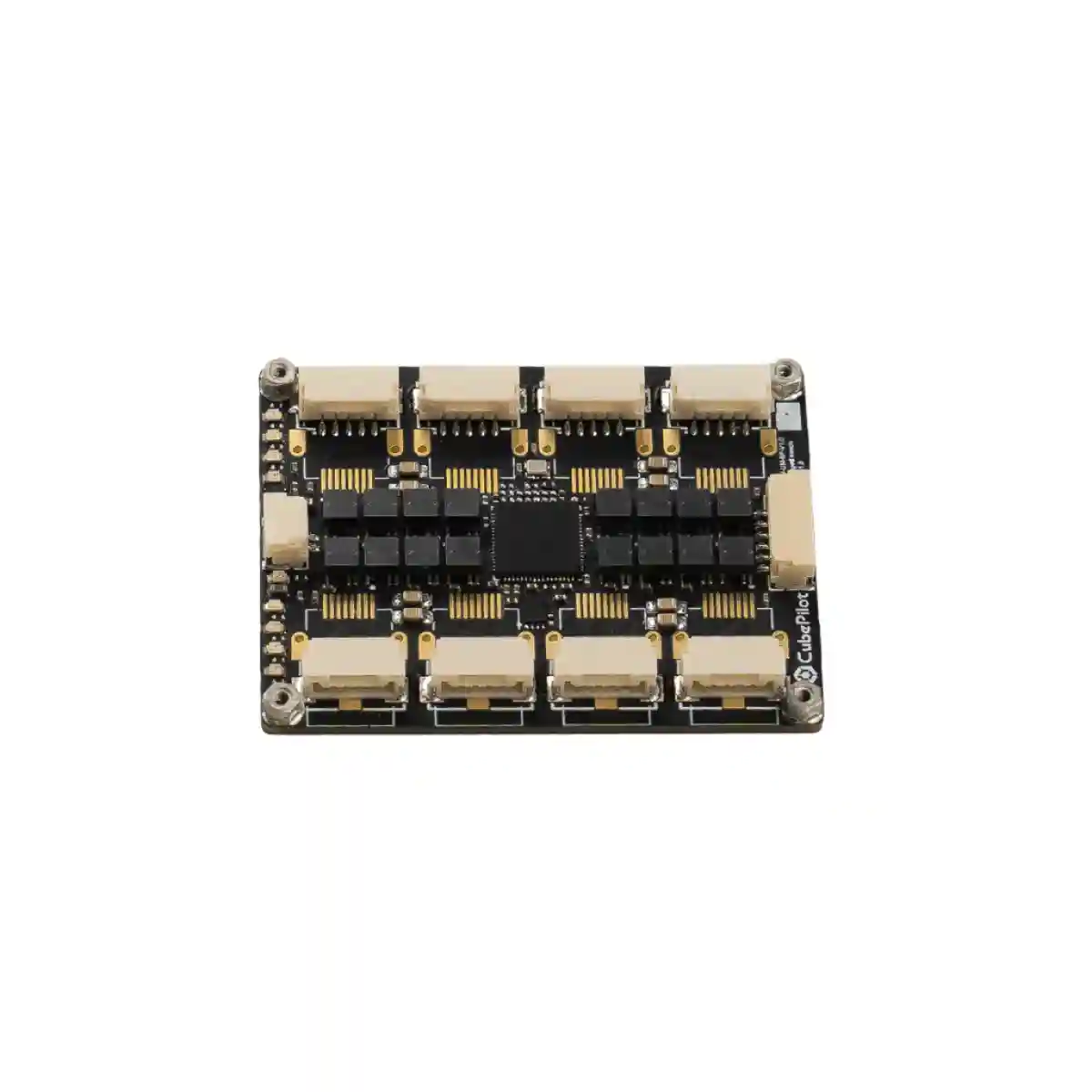

The CubeLAN 8‑Port Ethernet Switch by CubePilot is a compact, lightweight networking solution crafted for UAV, robotics, and embedded systems. It enables seamless connection of up to eight Ethernet-enabled devices, plus a dedicated ninth port for the autopilot, streamlining communication between multiple peripherals. Weighing just 13.5 g and measuring 41 × 52 × 6 mm, it’s ideal for size‑ and weight‑conscious builds. With plug‑and‑play operation, it simplifies system integration and ensures reliable networking without bulky hardware.
Features
- Eight Ethernet Ports
Provides extensive connectivity for peripherals while maintaining a direct link to the autopilot. - Ultra-Compact & Feather-Light
Dimensions: 41.15 × 52.58 × 6 mm - Supports 10/100 Mbps
Standard Ethernet speed suitable for most UAV and sensor networks. - Auto MDI‑MDIX
Automatically adjusts crossover settings for all ports—no need for crossover cables. - Wide Power Input Range
Operates from 4 V to 5.5 V, feeding from common UAV power supplies. - Robust Environmental Specs
Operating temperature range: 0 °C to 70 °C
Specifications
| Specification | Details |
|---|---|
| Model | CP‑06342 |
| Manufacturer | CubePilot |
| Dimensions | 41.15 × 52.58 × 6 mm |
| Weight | 13.5 g |
| Ethernet Ports | 8 network ports |
Disclaimer: Product details provided here are for reference only. Please verify all specifications and features from the official source, as information may change or vary.
