About This Product

The Airbot Systems Mini Power Brick 100A is a compact power-management module designed for UAV flight-control systems. It converts the main battery supply into regulated power for compatible flight-controller electronics while simultaneously measuring battery voltage and current.

Features

Compact power-management solution for UAV electronics
Supports battery input up to 12S
Provides regulated power to compatible flight-controller systems
3A continuous output capability
Up to 4A peak output for short duration according to available product documentation
Integrated battery-voltage sensing
Integrated current sensing up to 100A
Enables flight-controller power and battery monitoring
Helps estimate electrical consumption and remaining battery capacity
Suitable for compact drone and UAV installations
M3 mounting holes for secure installation
Lightweight construction at approximately 31 g

Technical Specifications

Specification	Details
Brand	Airbot Systems
Product Name	Mini Power Brick 100A
Product Type	UAV Power Module / BEC / Power Sensor
Maximum Input Voltage	Up to 12S
Continuous Output Current	3A
Peak Output Current	4A, short duration
Maximum Current Measurement	100A
Voltage Sensing	Up to 12S
Dimensions	44 × 27 × 17.6 mm
Mounting Hole Diameter	M3
Mounting Hole Spacing	38 mm
Weight	31 g
Application	UAV / Drone / Flight Controller Power
Regulator Type	Switching Voltage Regulator

UAV Power Module

Airbot Systems Mini Power Brick 100A

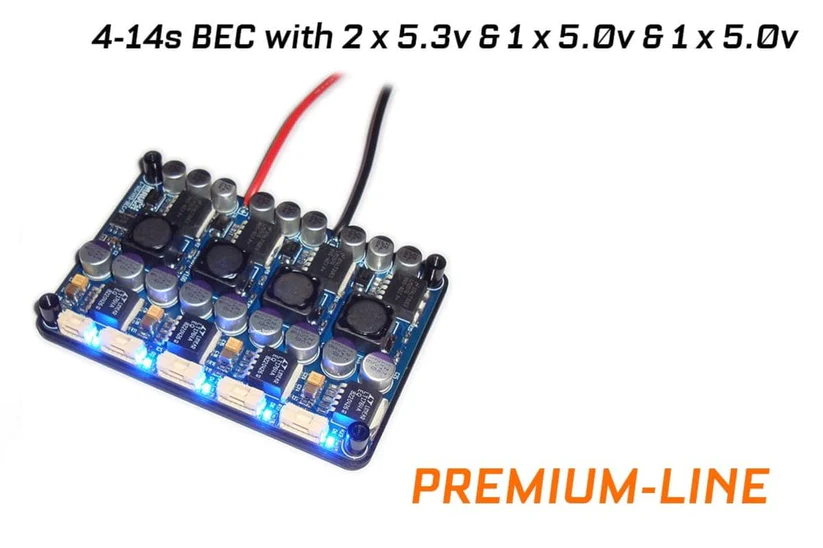

Mauch 025: PL 4-14S HYB-BEC / 2x 5.3V / 1x 5.0V / 1x 12.0V
